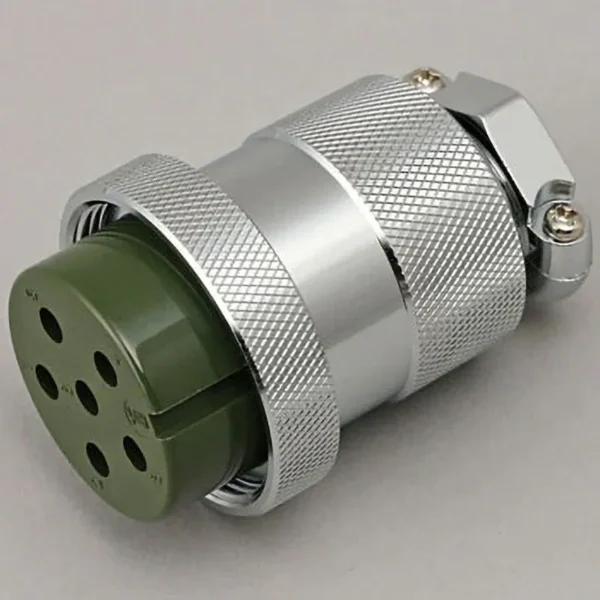

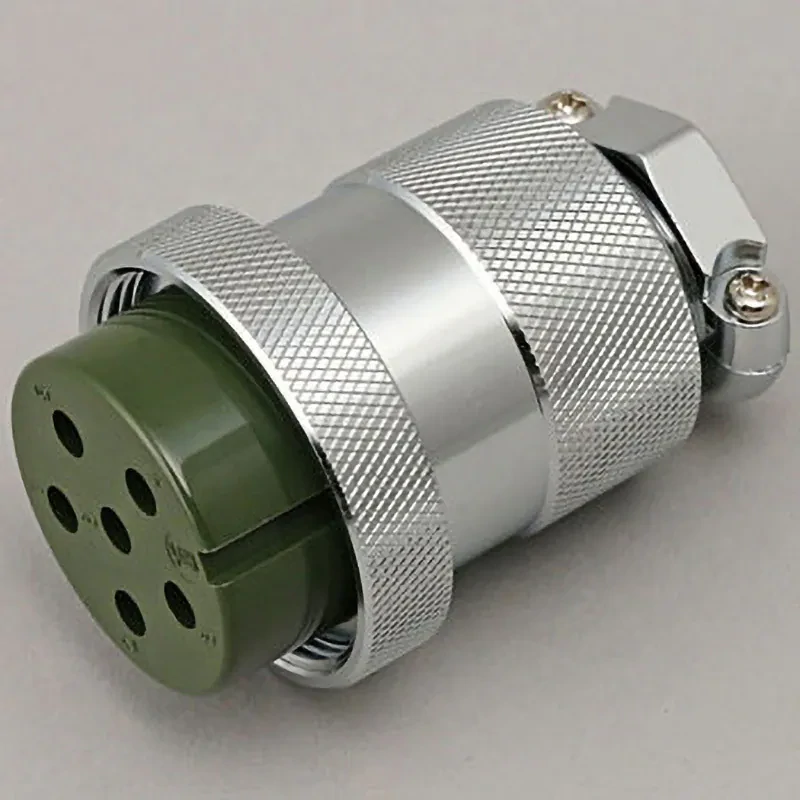

Description
Contact Shape: Female
Shell Size: 40
Shape: Straight

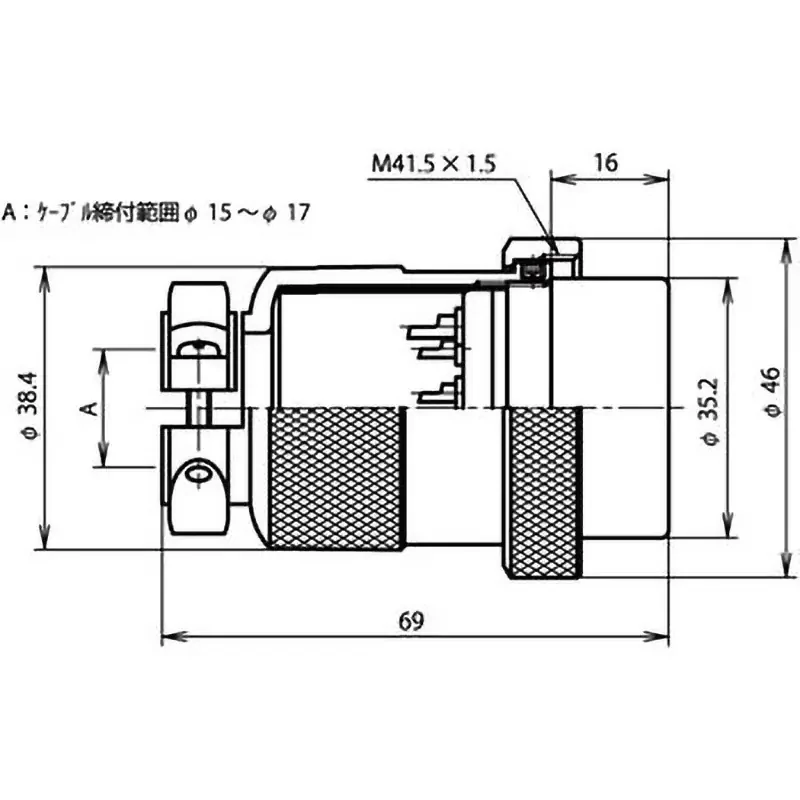

Compatible Cable Outer Diameter (Diameter mm): 15.0 – 17.0
Compatible: NCS-406-R

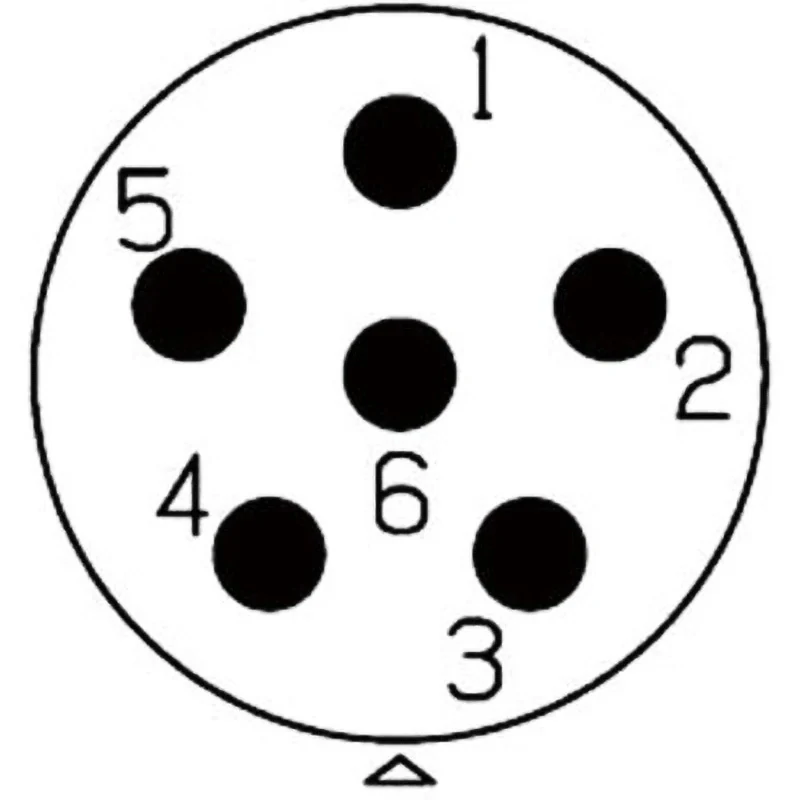

Number of Poles: 6
Rated Voltage (V): 250
Specification: Positive Pin (Equipment Side)
Type: Round
Operating Temperature Range (Celsius degrees): -40 – +120
Standard: Electrical Appliance and Material Safety Law
Rated Current (A): 20
Connector Shape: Plug
Material (Contact) / Treatment: Copper Alloy / Silver Plating
Material (Insulator): Synthetic Resin
Conductor Cross Section (mm2): 5.5
Insulation Resistance (Megaohm): 2000
Contact Resistance (Megaohm): 3 or less
Connection Method: Screw
Material (Packing): Synthetic Rubber
Material (Shell) / Treatment: Zinc Alloy or Brass / Chrome Plating or Special Chemical Treatment (16 Color Type)
Limit Operating Voltage (V): 400
RoHS Directive (10 Substances Compliance): Compliant
Dielectric Strength (V/min): 2000
Wiring Method: Solder
Used in various circuits with the Basic Type of Metal Connector
Mechanically and electrically stable due to robust and simple structure
The shell uses a zinc alloy with excellent strength.
No special tools are required for soldered connections.
