Description
Color: Gasket: Black

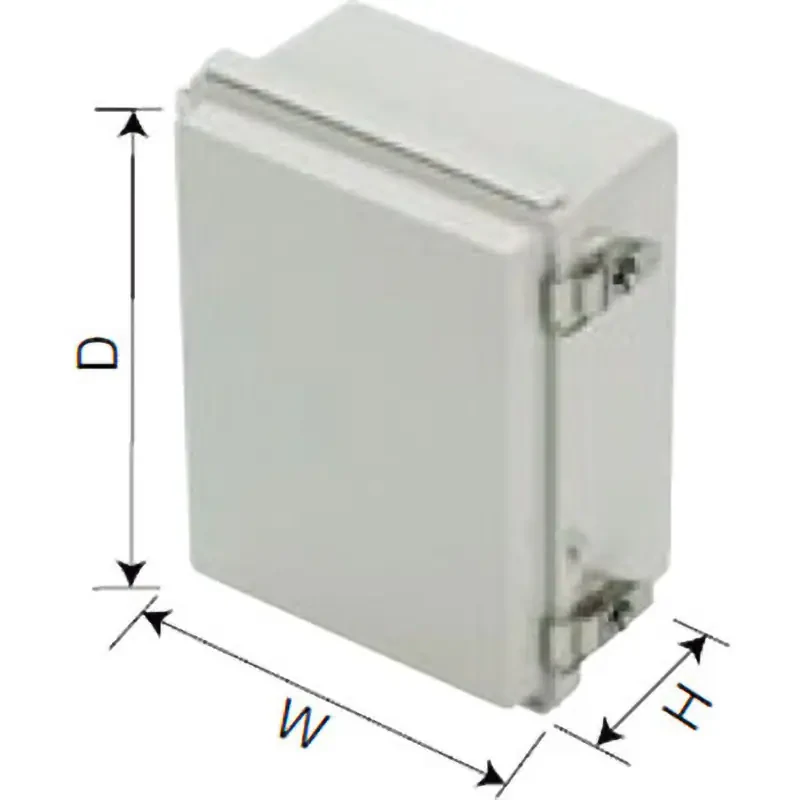

Dimension W (mm): 160
Dimension D (mm): 210
Dimension H (mm): 130
Material: Mounting Base Screw: Iron
Specification: Nut: None
Type: T Type
Operating Temperature Range (Celsius degrees): -10 to 60
Dimension A (mm): 120 (Bottom Mounting Hole)
Surface Treatment: Latch: Untreated, Mounting Base Screw: Trivalent Chromate
Protection Rating: IP65
Dimension c (mm): 170 (Bottom Mounting Hole)
Material (Cover): Polycarbonate
Flame Retardancy: UL94HB
Material (Gasket): Polyurethane
Material (Body): ABS Resin
Color (Cover): Transparent
Compatible Body Color: White Gray
RoHS Directive (10 Substances Compliance): Compliant
Characteristics: Waterproof Dustproof Open-Close
Weight (g): 537
Effective Dimension (Width) (mm): 134 (Internal)
Effective Dimension (Depth) (mm): 184 (Internal)
Effective Dimension (Height) (mm): 116.5 (Internal)
Material (Latch): Stainless Steel
