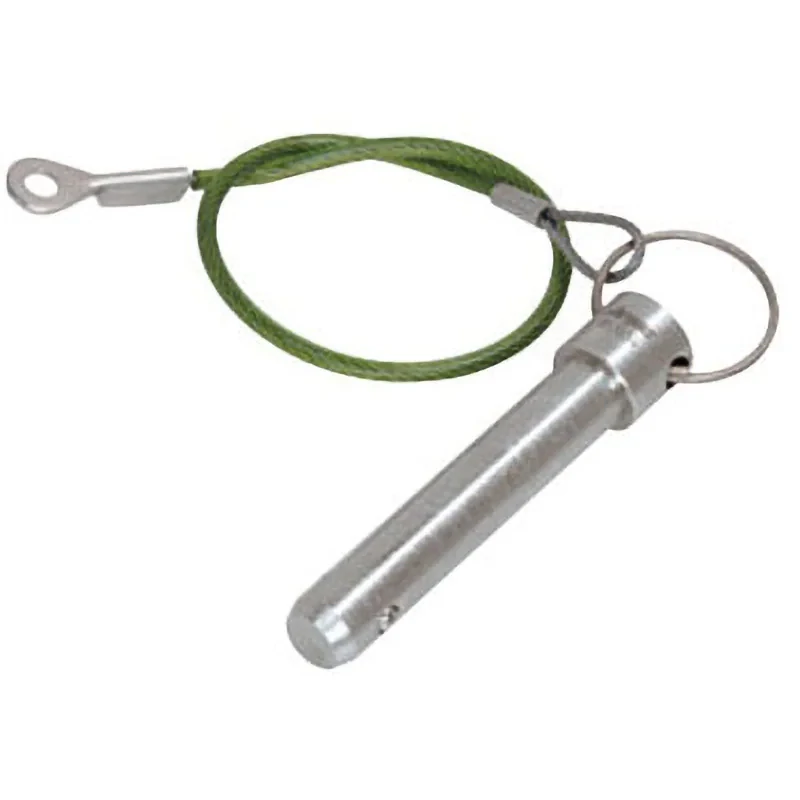

Osaka Tamashii Ball Lock Pin

¥3,608

SKU: r220327366209 Category:

Description

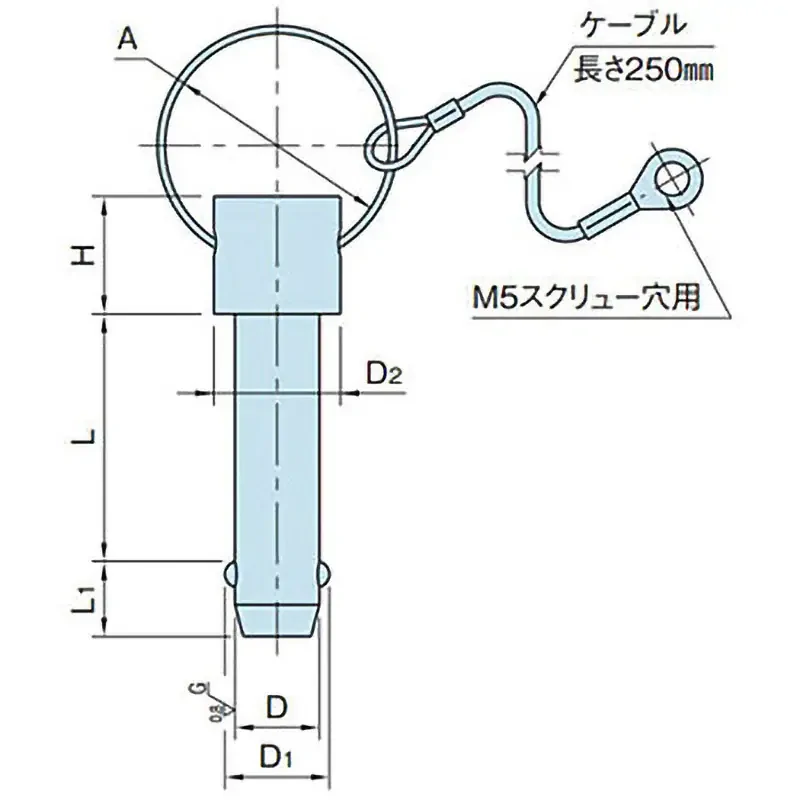

Dimensions L(mm): 50(+0.5/0)
Dimensions L1(mm): 8.5(plus or minus 1)
Material: (Shank) SUS630
Material: (Ball) SUS440C
Surface Treatment: (Shank) Oxidation (Inert) Coating, Polished Finish
Dimensions D(mm): 8(-0.03/-0.13)
Dimensions H(mm): 13
Dimensions A(mm): 25
Dimensions D1(mm): 9.3
Mass (g): 43
Dimensions D2(mm): 11

Frequently repeated, this device allows for speedy fixing and separation of workpieces and parts.

It is suitable for use as a substitute for bolts and rivets, particularly for rapid temporary separation or in cases where it should not be separated once fixed.
