Description

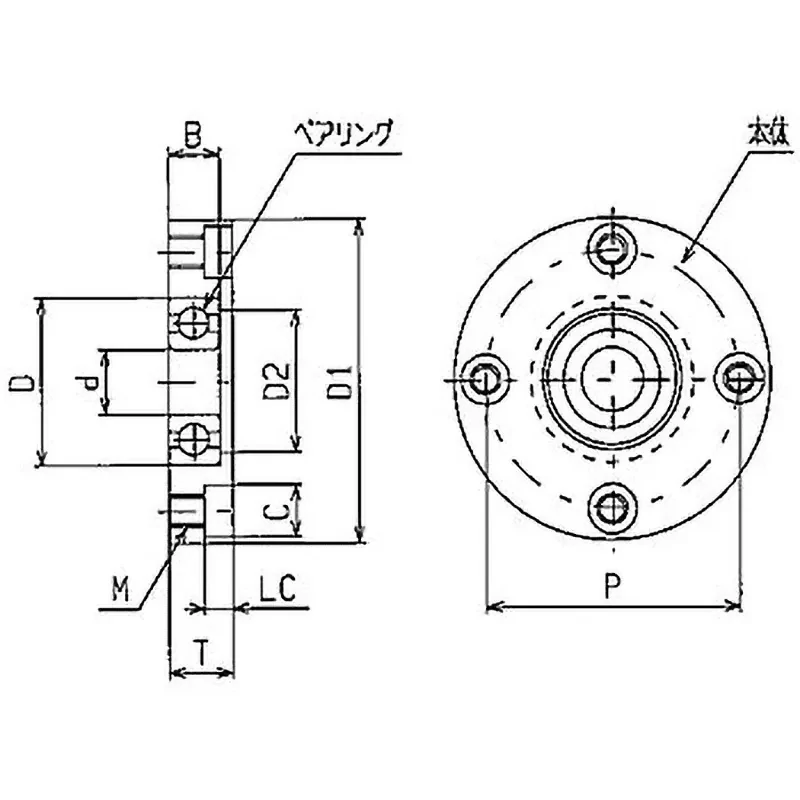

Dimensions B (mm): 7 (-0.20 to -0.15)
Dimensions C (mm): 9.5
Dimensions D (mm): 28
Dimensions D1 (mm): 57
Dimensions D2 (mm): 25
Dimensions L:C (mm): 5.4
Dimensions P (mm): 45
Dimensions T (mm): 9
Dimensions D (mm): 15
Material (Body): SS400
Thread Diameter (mm): 6
Material (Bearing): Steel
Surface Treatment (Body): Electroless Nickel Plating

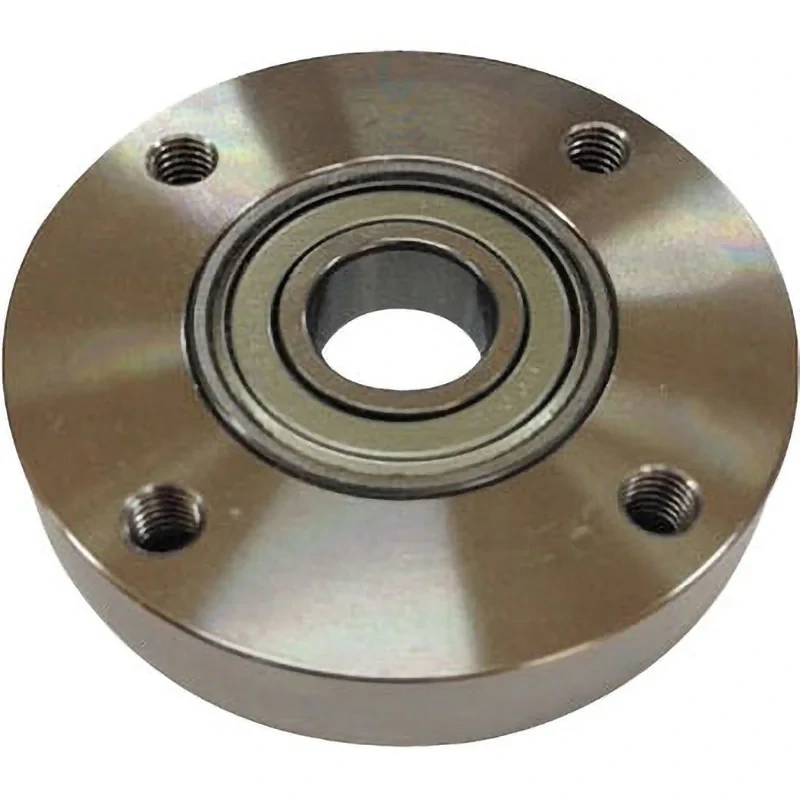

This type eliminates the retaining ring and allows the bearing end face to be directly mounted to the machine/device. It is slim and compact.
The mounting screw hole section is recessed, allowing installation from either the screw hole side or the recessed side.
