Description
Contact Shape: Female

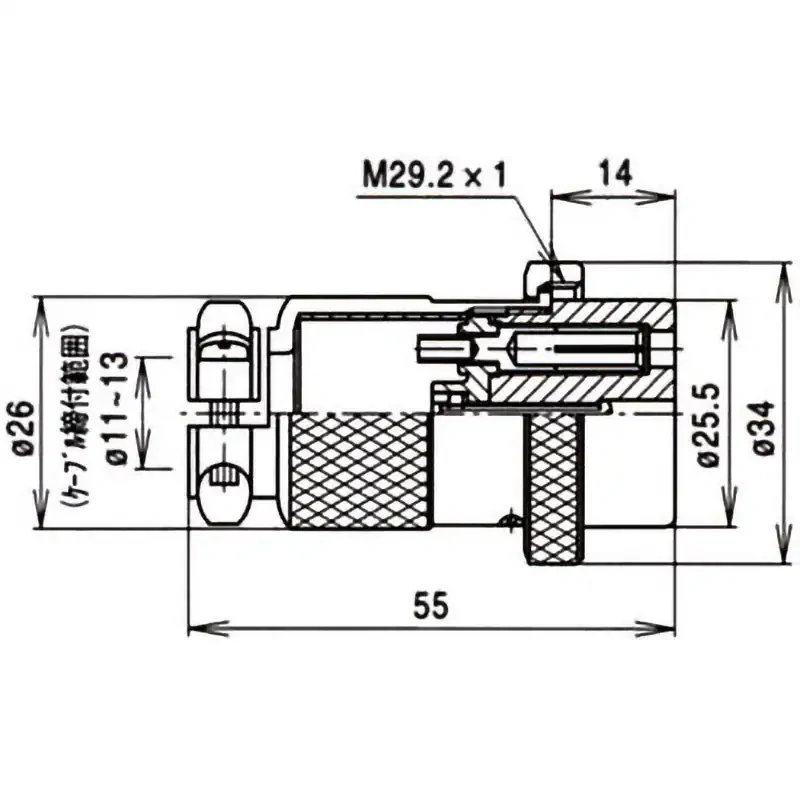

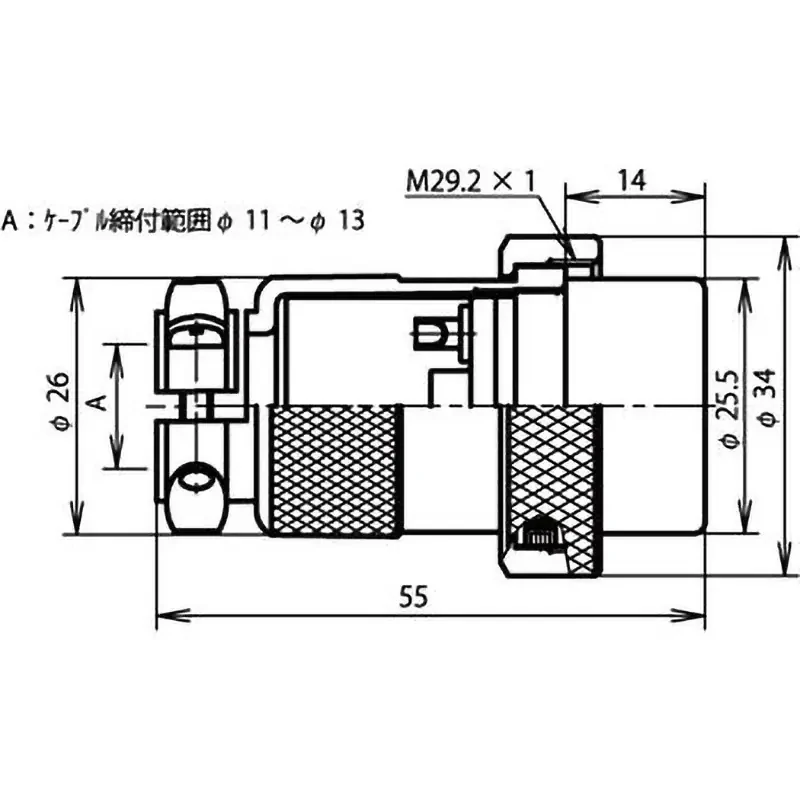

Shell Size: 30
Shape: Straight
Suitable Cable Outer Diameter (mm): 11.0闂?3.0
Compatible: NCS-304-R

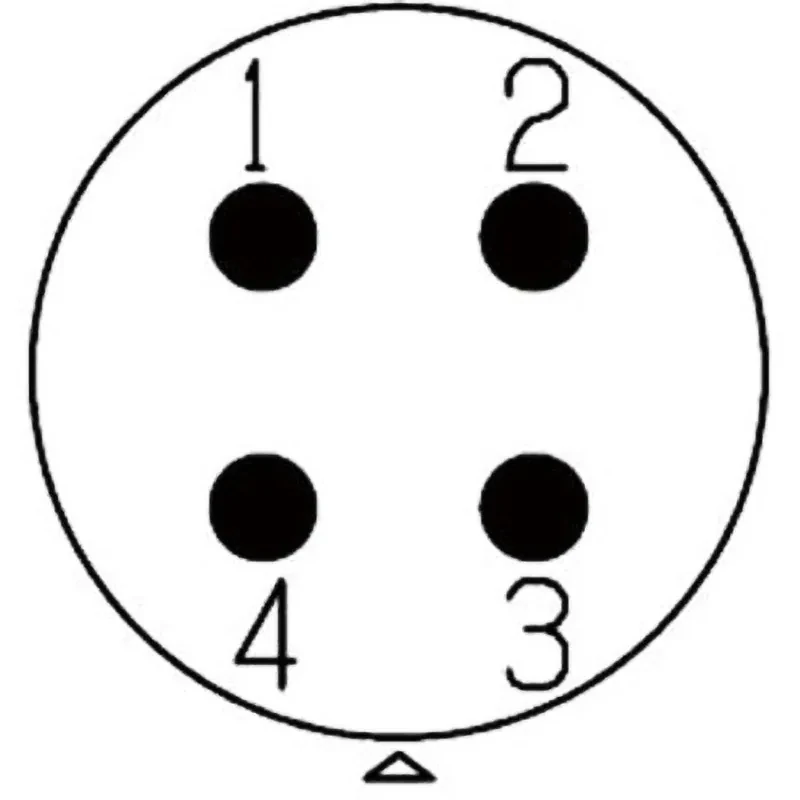

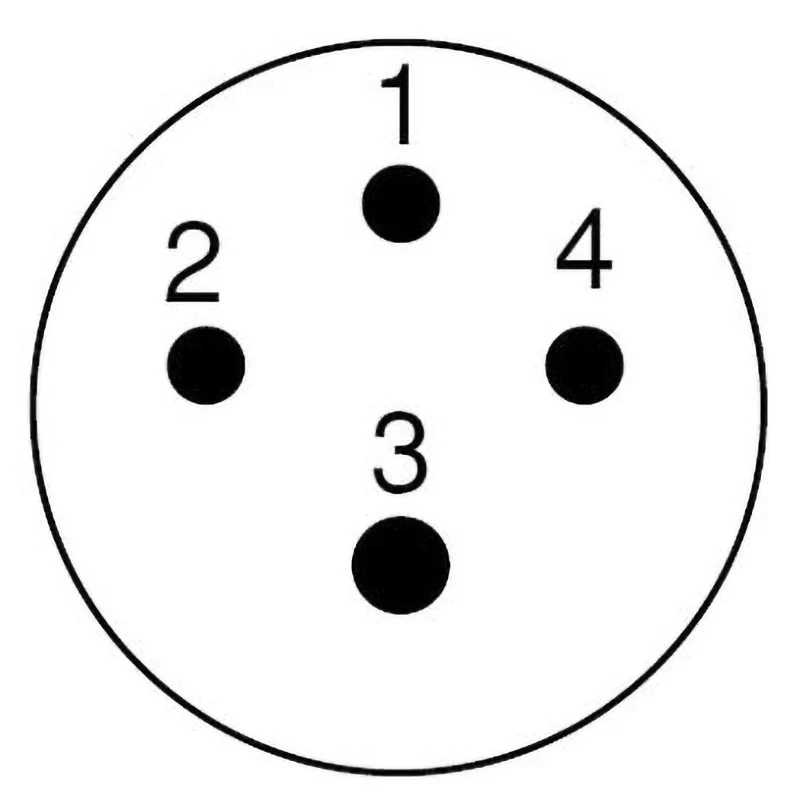

Number of Poles: 4
Rated Voltage (V): 250
Specifications: Pin (Equipment Side)
Trusco Part Number: 434-2020
Type: Round
Operating Temperature Range (闂傚倷鑳堕、濠傗枍閿濆鍋?: -40 to +120
Standard: Electrical Appliance Safety Law
Rated Current (A): 15
Connector Shape: Plug
Material (Contact)/Processing: Copper Alloy/Nickel Plating
Material (Insulator): Synthetic Resin
Conductor Cross-Sectional Area (mm2): 2
Insulation Resistance (Megaohms): 2000
Contact Resistance (Megaohms): 3 or less
Coupling Method: Screw
Material (Gasket): Synthetic Rubber
Material (Shell)/Processing: Zinc Alloy or Brass / Chrome Plating or Special Chemical Treatment (16 Color Types)
Maximum Operating Voltage (V): 400
RoHS Directive (10 Substances Compliance): Compliant
Voltage Withstand (V/min): 2000
Wiring Method: Solder
Used in various circuits with Basic Type of Metal Connector
Due to its robust and simple structure, it is mechanically and electrically stable
The shell is made of zinc alloy with excellent strength.
Soldering wiring does not require dedicated tools.
