Description

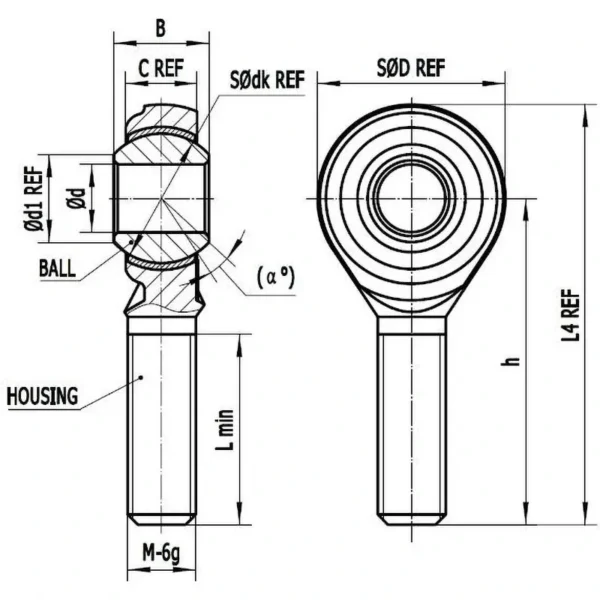

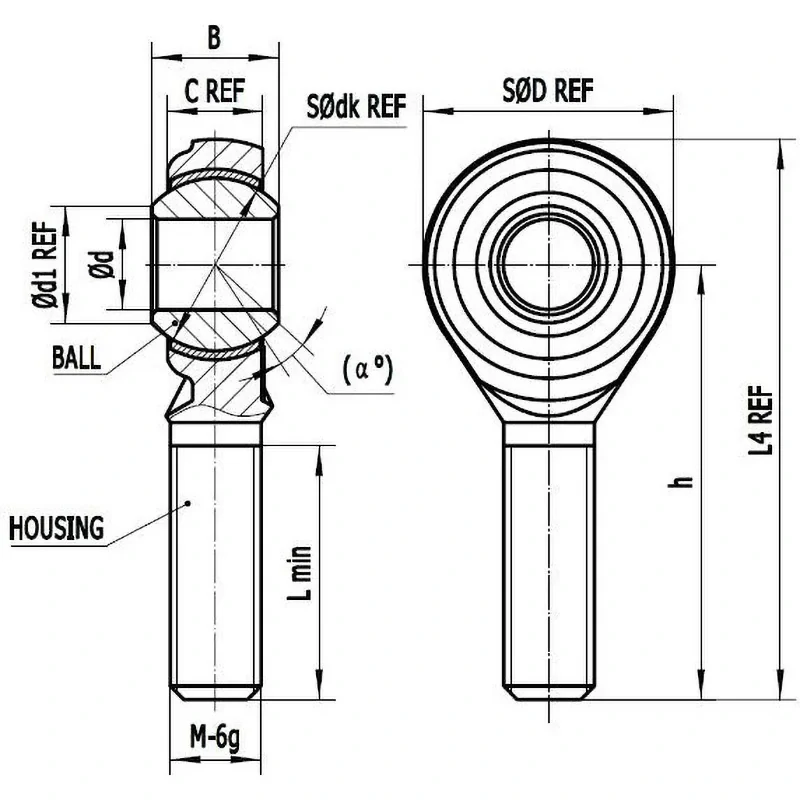

Dimensions M (mm): M18*1.5
Dimension B (mm): 23
Dimension C (mm): 16.5
Dimension L (Min) (mm): 41
Dimension L4 (mm): 95
Dimension SD (mm): 46
Dimension d (mm): 18
Dimension d1 (mm): 21.9
Dimension dk (mm): 31.75
Dimension h (mm): 72
Weight (g): 254.7
Type: Right Thread Type
RoHS Directive (10 substances compliant): Yes
Dimension alpha (degrees): 15

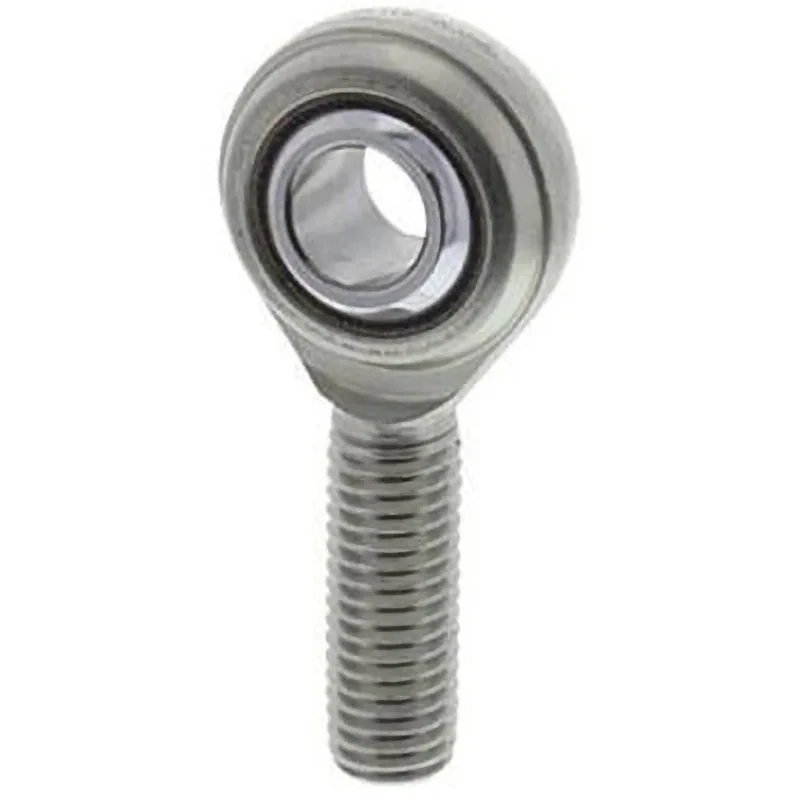

Uses a spherical sliding bearing with a spherical inner ring of the same precision and hardness as bearing steel balls｣ｬ suitable for mounting at the Rod End｣ｬ of oscillating motion｣ｬ such as in pivot applications.
