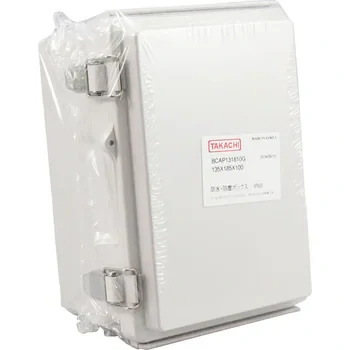

Description
Color: Gasket: Black
Dimension W (mm): 135
Dimension D (mm): 185
Dimension H (mm): 100.5
Material: Mounting Base Screw: Iron
Specification: Nut: None
Type: Type G
Operating Temperature Range (Celsius degrees): -10 to 60
Dimension A (mm): 95 (Bottom Mounting Hole)
Surface Treatment: Latch: Untreated, Mounting Base Screw: Trivalent Chrome
Protection Rating: IP65
Dimension c (mm): 145 (Bottom Mounting Hole)
Material (Cover): ABS Resin
Flame Resistance: UL94HB
Material (Gasket): Polyurethane
Material (Body): ABS Resin
Color (Cover): White Gray
Compatible Body Color: White Gray
RoHS Directive (10 Substances Compliance): Compliance
Features: Waterproof Dustproof Open-Close
Weight (g): 396
Effective Dimension (Width) (mm): 110.4 (Internal)
Effective Dimension (Depth) (mm): 160.4 (Internal)
Effective Dimension (Height) (mm): 87.1 (Internal)
Material (Latch): Stainless Steel
