Description

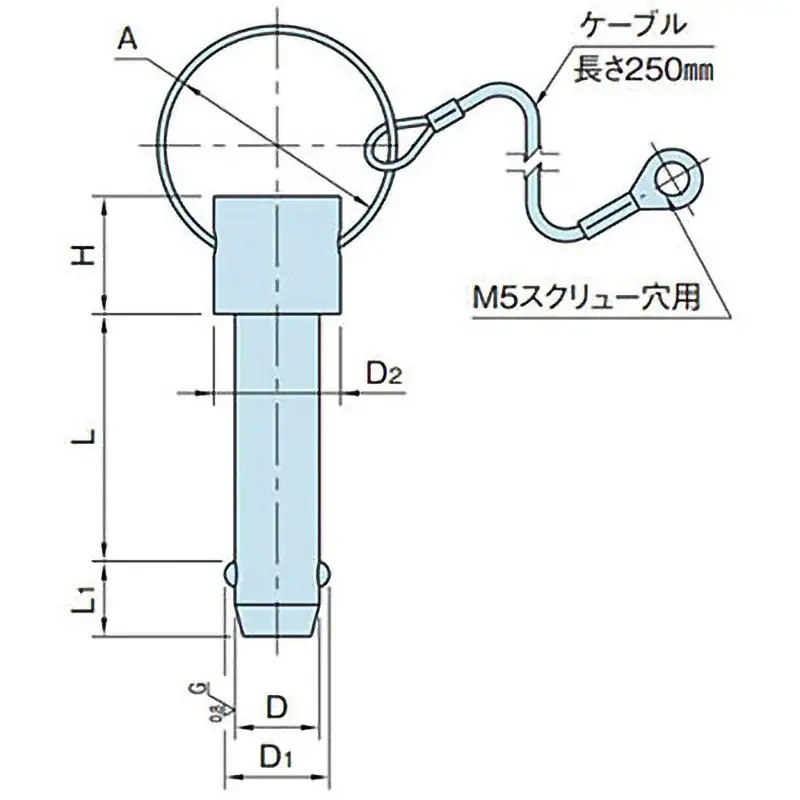

Dimensions L(mm): 30(+0.5/0)
Dimensions L1(mm): 8(plus or minus 1)
Material: (Shank) SUS630
Material: (Ball) SUS440C
Surface Treatment: (Shank) Oxidation (Inert) Coating, Polished Finish
Dimensions D(mm): 6(-0.03/-0.13)
Dimensions H(mm): 13
Dimensions A(mm): 25
Dimensions D1(mm): 7
Weight (g): 27
Dimensions D2(mm): 9.5

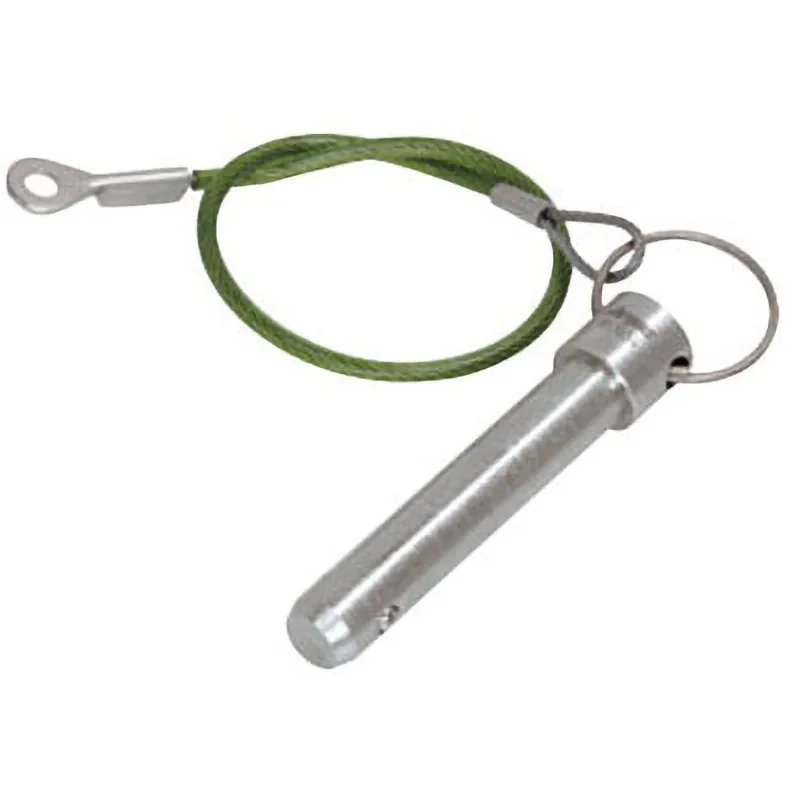

Frequently repeated, this allows for quick fixation and separation of workpieces and parts.
It is suitable for use as a substitute for bolts or rivets when rapid temporary separation is needed or when it should not be separated once fixed.
