Description

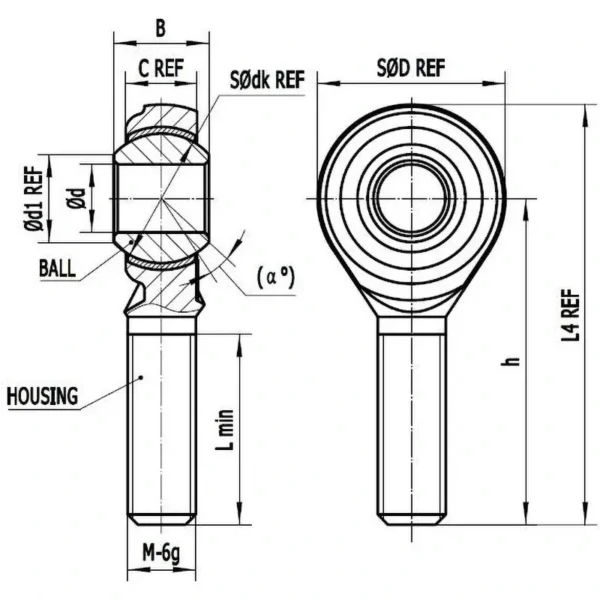

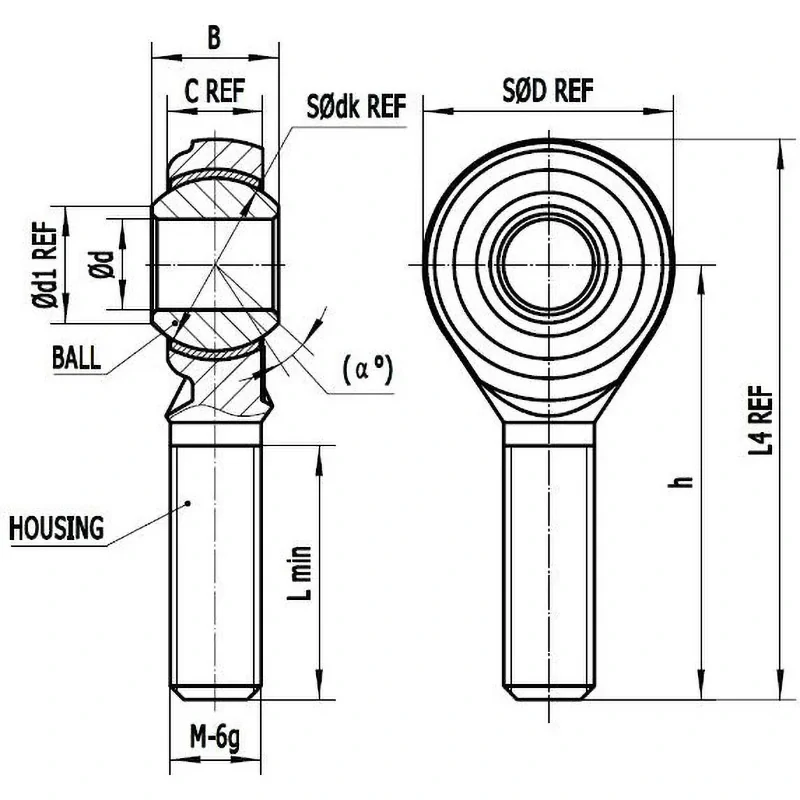

Dimensions M(mm): M16*2
Dimensions B(mm): 21
Dimensions C(mm): 15
Dimensions L(Min)(mm): 37
Dimensions L4(mm): 87
Dimensions SD(mm): 42
Dimensions d(mm): 16
Dimensions d1(mm): 19.4
Dimensions dk(mm): 28.58
Dimensions h(mm): 66
Weight (g): 188.8
Type: Right Thread
RoHS Directive (10 substances compliance): Compliance
Dimensions alpha(degrees): 15

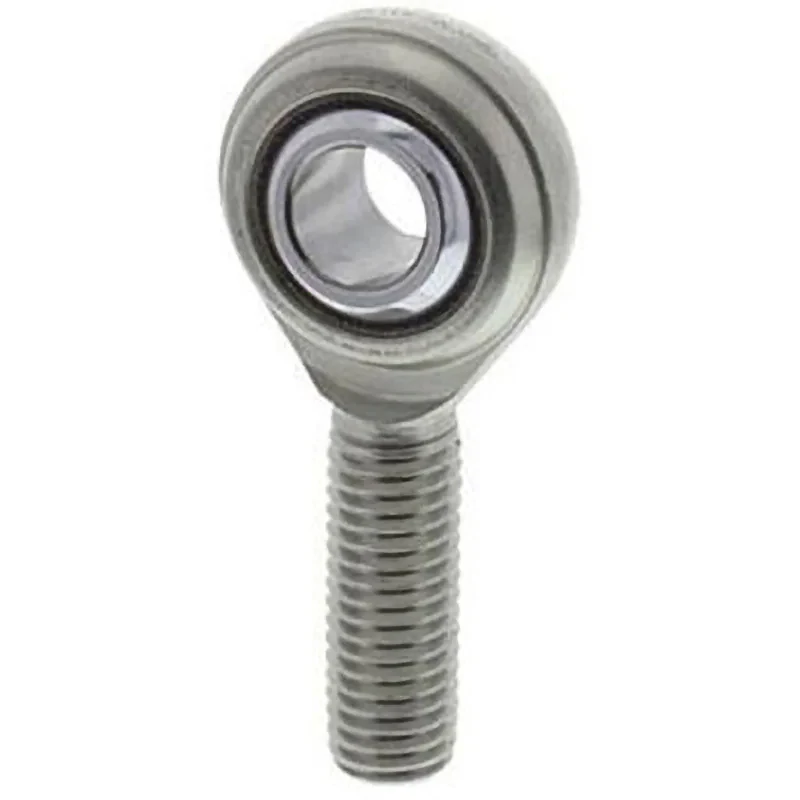

This spherical sliding bearing uses a spherical inner ring with the same precision and hardness as bearing steel balls｣ｬ and is used for mounting the Rod End｣ｬ in oscillating motion.
