Description
Description: Quantity: 1 piece
Function operation: ON-OFF-ON
Circuit: 2-pole double throw

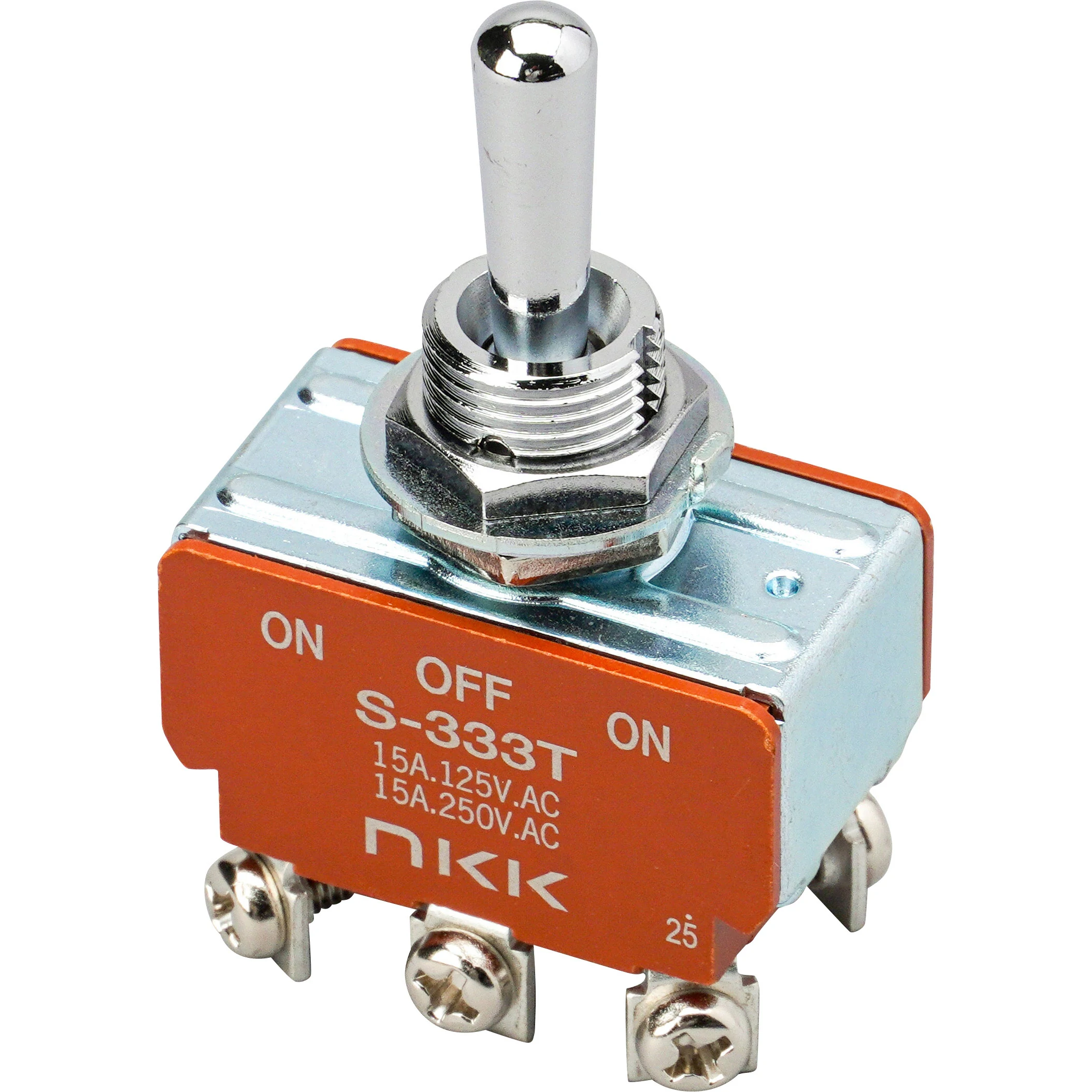

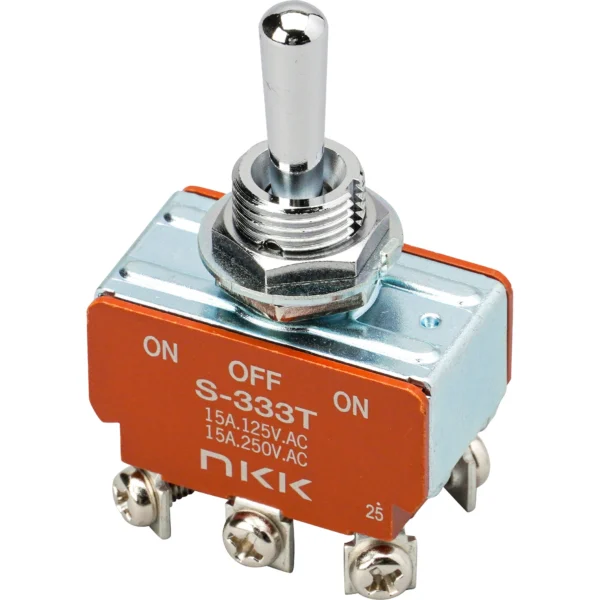

Part number: S-333T
Circuit: 2-pole double throw
Terminal shape: screw
Function operation: ON-OFF-ON
Dielectric strength: AC2.0kV (for more than 1 minute)
Accessories: Hex nut (AT-503, AT-527), Internal tooth washer (AT-508), Mounting ring (AT-506)
Trusco part number: 470-7583
Number of poles: 2
Operating temperature range (Celsius degrees): -10 to 70
Standards: UL, C-UL
Operating method: –
Heat resistance: when using a soldering iron: tip temperature: below 390 Celsius degrees, soldering time: within 4s, number of times: 2 times (after returning to room temperature)
Separate sold accessories: Waterproof cap (AT-401, AT-402, AT-4181)
Motor (W): –

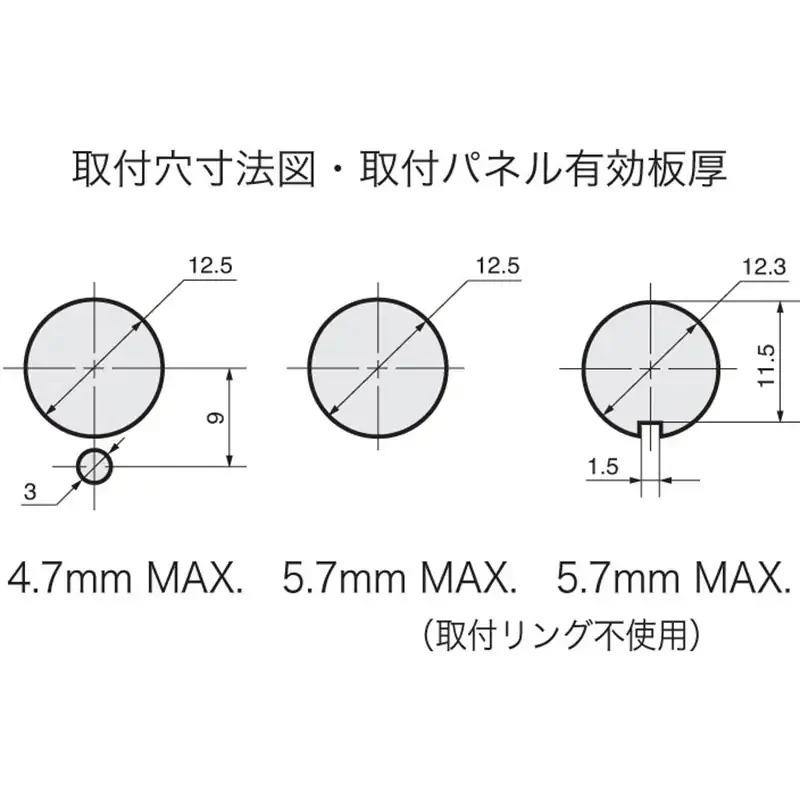

Mounting hole diameter (Diameter mm): 12.5, 12.3
Contact resistance (Megaohm): below 10 (at DC2闂?V 100mA)
Inductive load (A): 10 (AC125V) (power factor = 0.6)
Insulation resistance (Gigaohm): 1 or more (at DC500V)
Mechanical switching durability: over 50000 times
Electrical switching durability: over 25000 times
Lever tilt angle (degrees): 30
Operating part shape: basic lever
Panel mounting method: screw mounting
Maximum mounting panel thickness (mm): 5.7
Insulation resistance: 1 Gigaohm or more (at DC500V)
RoHS directive (10 substances compliance): compliant
Dielectric strength (V/min): AC2k or more
Resistive load (A): 15 (AC125V), 15 (AC250V), 15 (DC30V)
Small toggle switch group boasts a track record of half a century, featuring Small robust high capacity switches made with contact materials that are strong against arcing and maintain high contact reliability.
Developed by Nippon Switch Industry Co., Ltd., double-fixed crimping prevents terminal play due to soldering.
Special silver alloy contacts are strong against arc wear and maintain stable contact resistance.
The switching mechanism is a seesaw type, characterized by long lifespan, robustness, and high capacity.
