Description
Contact Shape: Female

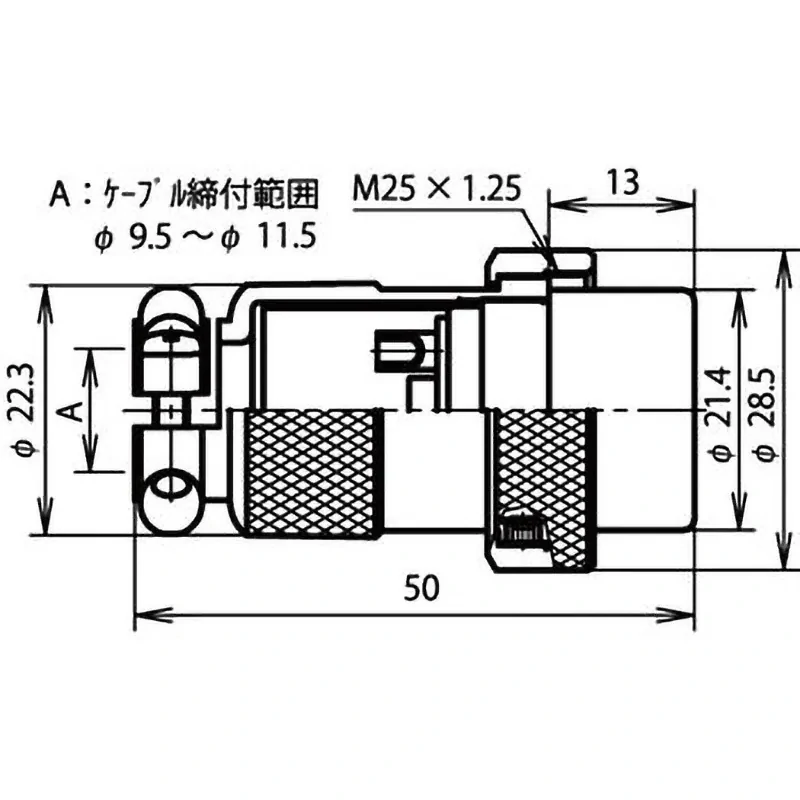

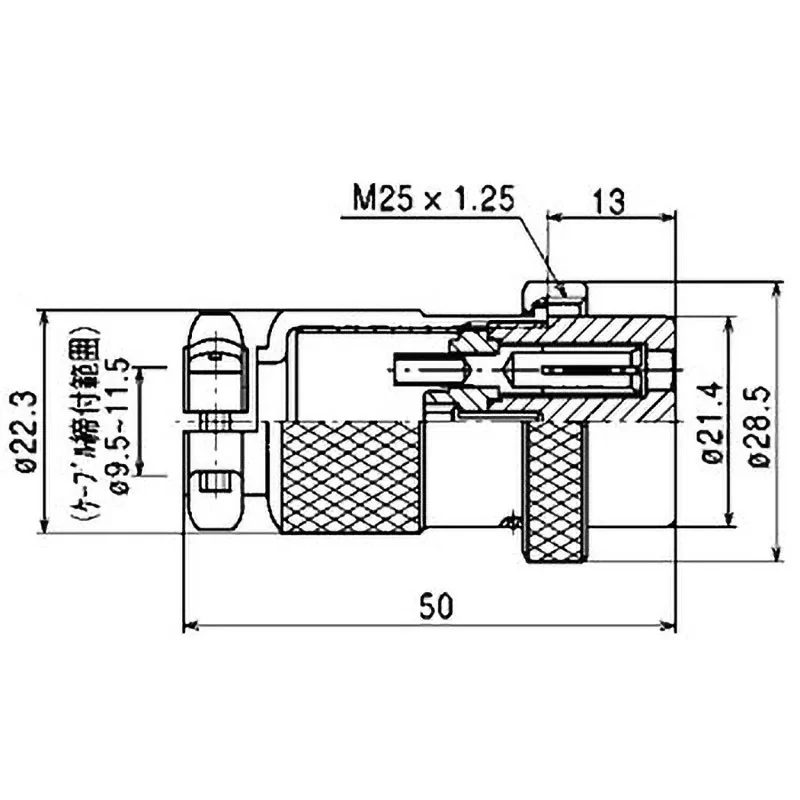

Shell Size: 25
Shape: Straight
Compatible Cable Outer Diameter (Diameter mm): 9.5 to 11.5
Compatible: NCS-258-R

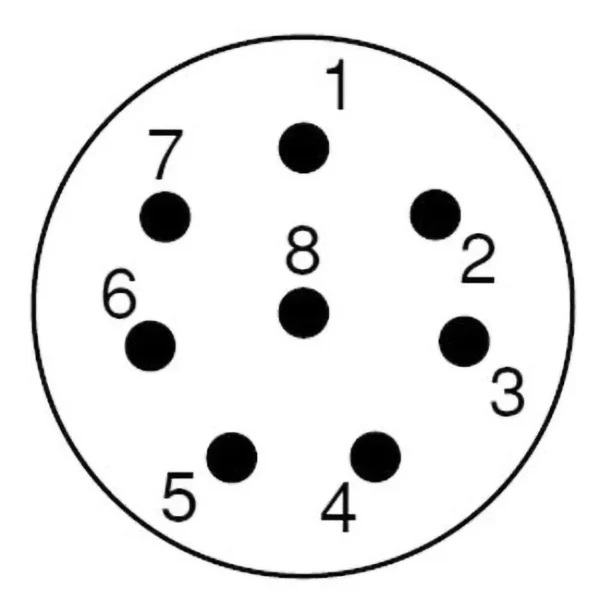

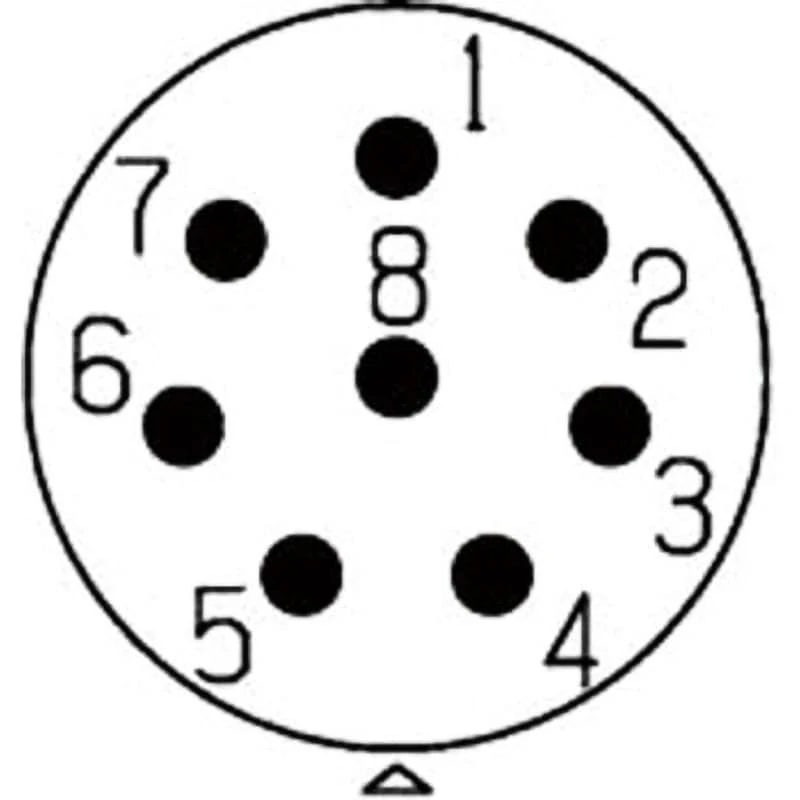

Number of Pins: 8
Rated Voltage (V): 250
Specification: Positive Pin (Device Side)
Trusco Product Number: 434-1929
Type: Round
Operating Temperature Range (Celsius degrees): -40 to +120
Standard: Electrical Appliance and Material Safety Law
Rated Current (A): 5
Connector Shape: Plug
Material (Contact)/Treatment: Copper Alloy/Nickel Plating
Material (Insulator): Synthetic Resin
Conductor Cross-Sectional Area (mm2): 1.25
Insulation Resistance (Megaohm): 2000
Contact Resistance (Megaohm): 3 or less
Connection Method: Screw
Material (Packing): Synthetic Rubber
Material (Shell)/Treatment: Zinc Alloy or Brass/Chrome Plating or Special Chemical Treatment (16 Color Type)
Limit Operating Voltage (V): 300
RoHS Directive (10 Substances Compliance): Compliant
Dielectric Strength (V/min): 1800
Wiring Method: Solder

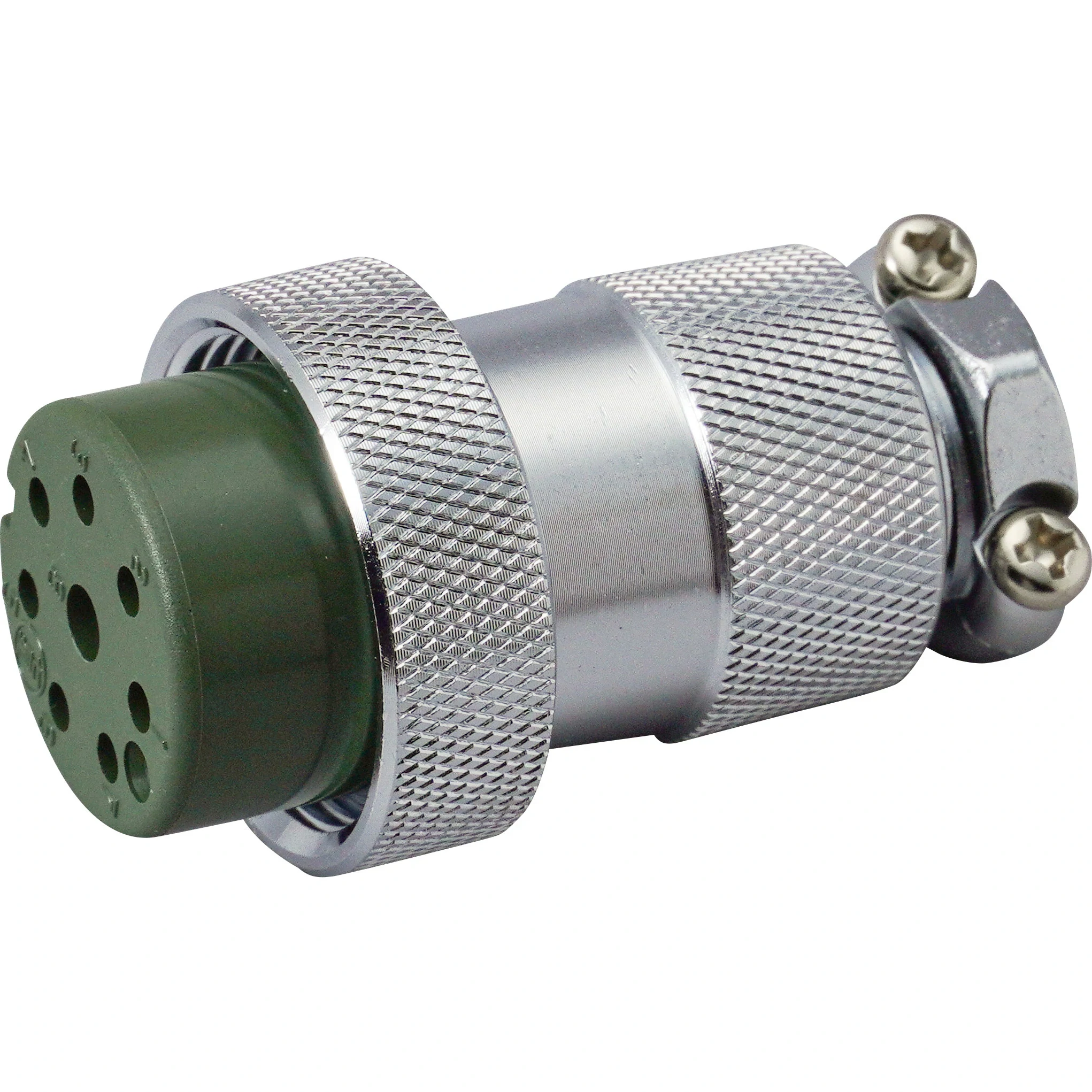

This is a Basic Type of Metal Connector used in various circuits
Stable mechanically and electrically due to robust and simple structure
The shell is made of zinc alloy with excellent strength
No special tools required for soldering connections
