Description

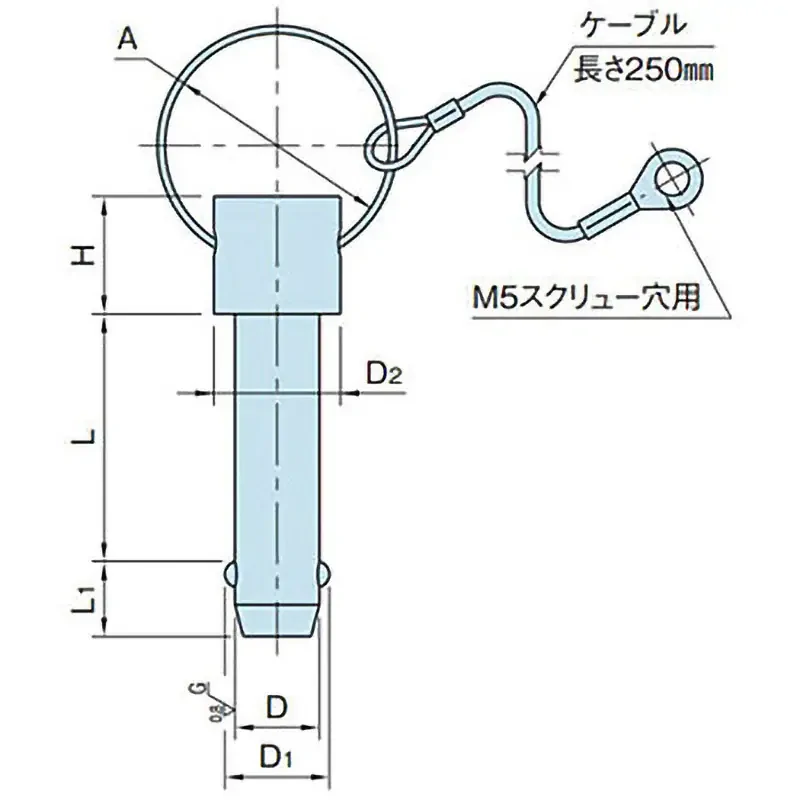

Dimensions L(mm): 15(+0.5/0)
Dimensions L1(mm): 8(plus or minus 1)
Material: (Shank) SUS630
Material: (Ball) SUS440C
Surface Treatment: (Shank) Oxidation (passivation) coating, polishing finish
Dimensions D(mm): 6(-0.03/-0.13)
Dimensions H(mm): 13
Dimensions A(mm): 25
Dimensions D1(mm): 7
Mass(g): 23
Dimensions D2(mm): 9.5

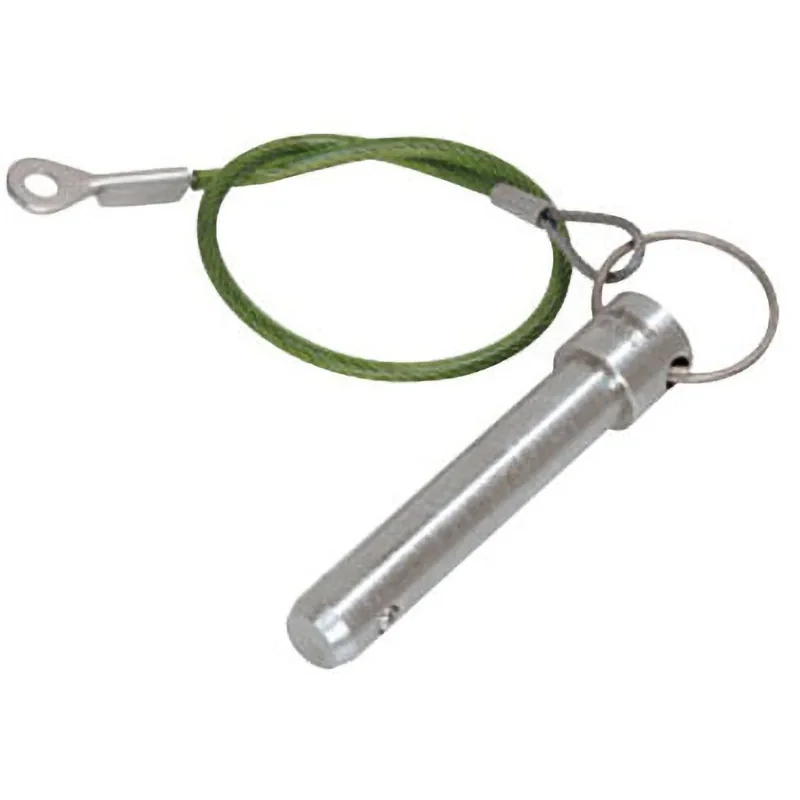

This product allows for quick fixing and separation of workpieces and parts that are frequently joined together.
It is suitable for use as a substitute for bolts or rivets when quick temporary separation is needed or when separation is not required after being fixed.
