Description

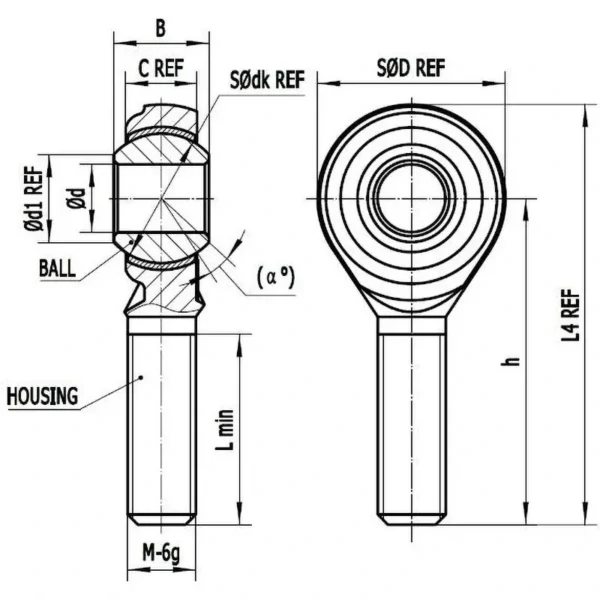

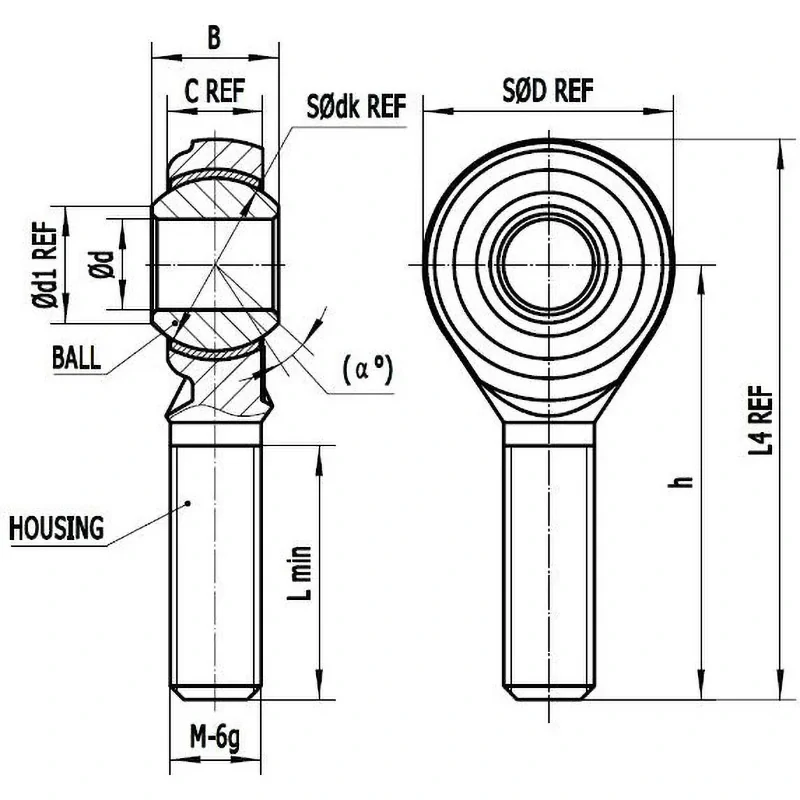

Dimensions M(mm): M12*1.75
Dimensions B(mm): 16
Dimensions C(mm): 12
Dimensions L(Min)(mm): 32
Dimensions L4(mm): 70
Dimensions SD(mm): 32
Dimensions d(mm): 12
Dimensions d1(mm): 15.4
Dimensions dk(mm): 22.23
Dimensions h(mm): 54
Weight (g): 60.4
Type: Right Thread
RoHS Directive (10 Substances Compliance): Compliant
Dimensions alpha(degrees): 13

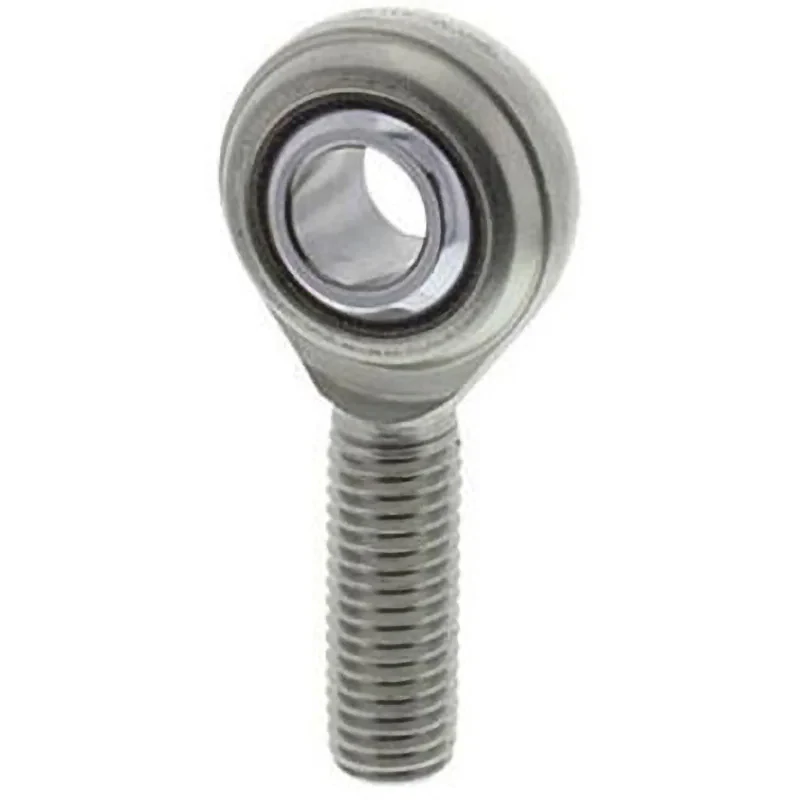

This spherical sliding bearing uses a spherical inner ring with precision and hardness equivalent to bearing steel balls｣ｬ and is used for mounting at the end of rods for oscillating motion.
