Description
Thread diameter: AM16*2.0
Usage: For tightening work of the jig body.
TRUSCO Part No.171-5411
Material: S45C
Weight (kg): 0.068
Weight (g): 60
Pitch: Standard

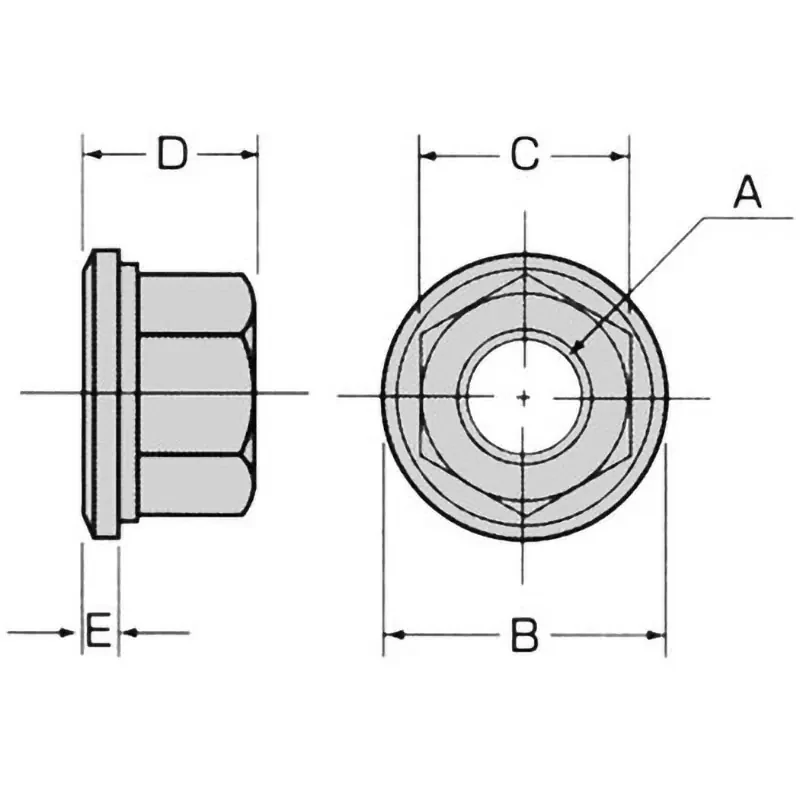

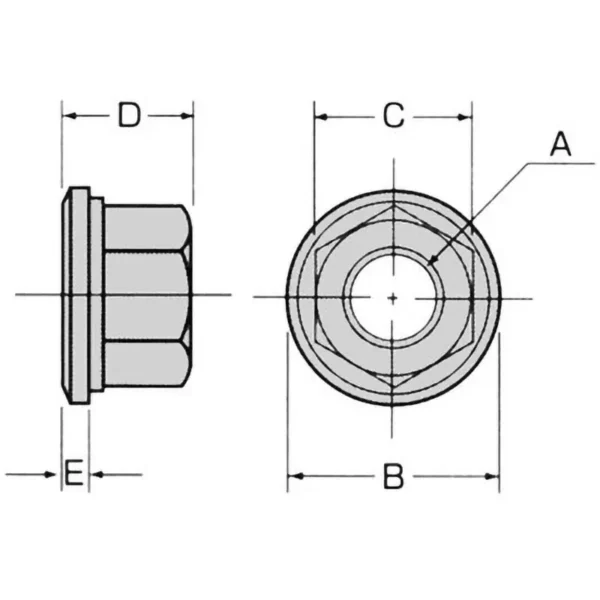

Dimension D (mm): 20
Dimension E (mm): 5
Dimension B (mm): 33
Dimension C (mm): 24
Finish: Black Oxide
Heat-Treated
Quenching Hardness HRC 30 to 40
It enables tightening of various clamps.
Due to its flange design, it can be tightened stably.
