Description

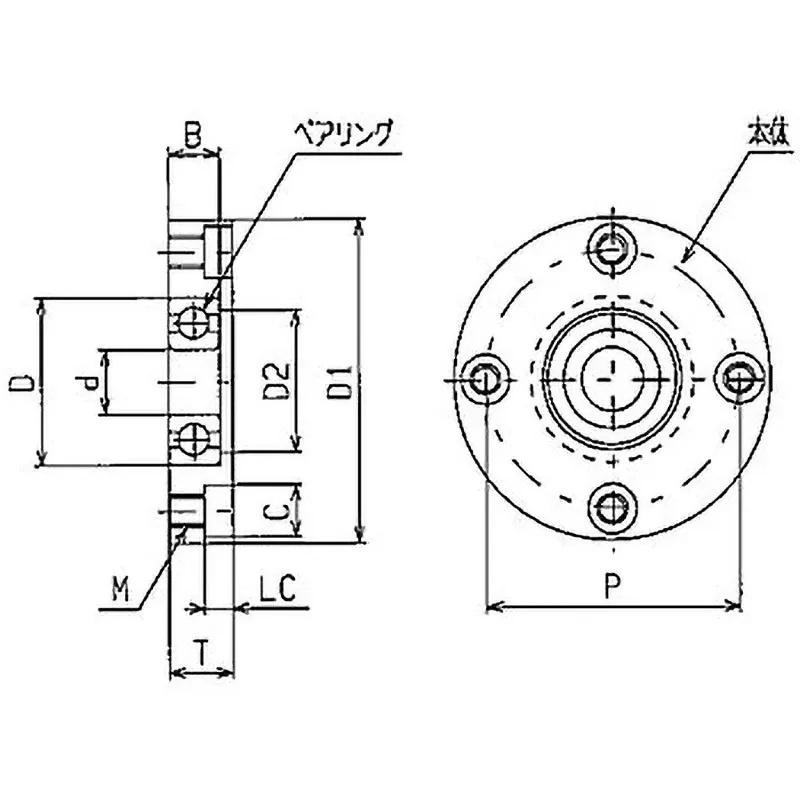

Dimension B (mm): 6 (-0.20 to -0.15)
Dimension C (mm): 8
Dimension D (mm): 22
Dimension D1 (mm): 45
Dimension D2 (mm): 19
Dimension L:C (mm): 4.4
Dimension P (mm): 35
Dimension T (mm): 8
Dimension D (mm): 10
Material (Body): SS400
Screw Diameter (mm): 5
Material (Bearing): Steel
Surface Treatment (Body): Electroless Nickel Plating

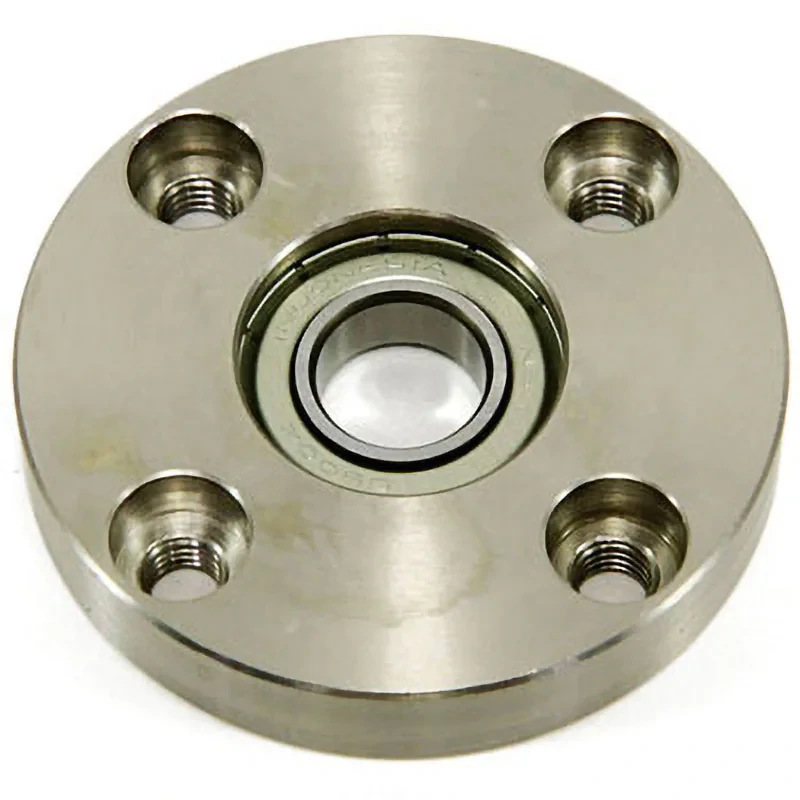

A type that eliminates the retaining ring and directly attaches the bearing end face to the machine or device. It is slim and compact.
Since the mounting screw hole has a counterbore processing, it can be mounted from either the screw hole side or the counterbore side.
