Description

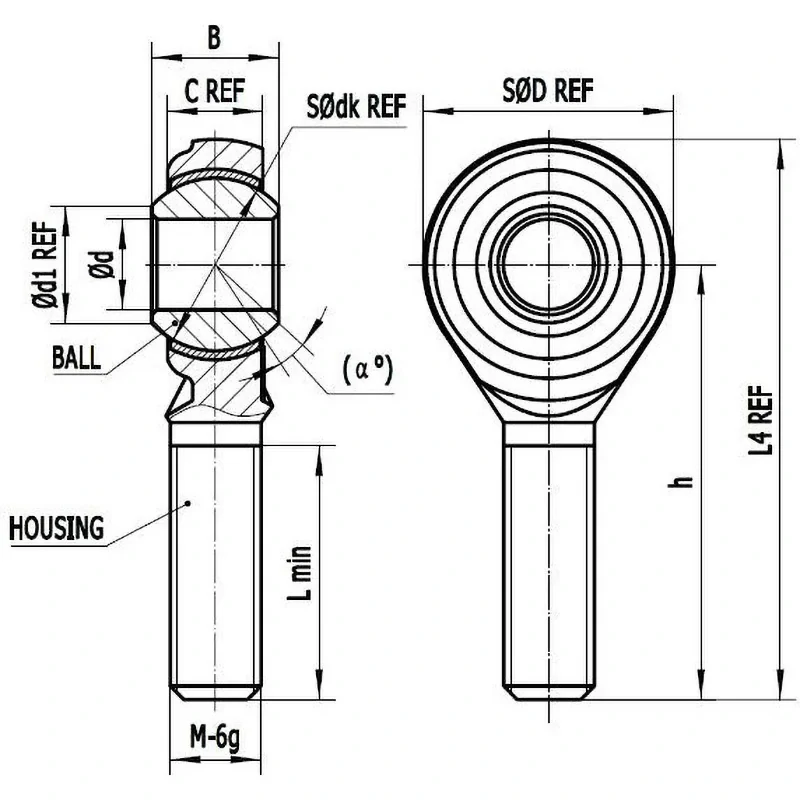

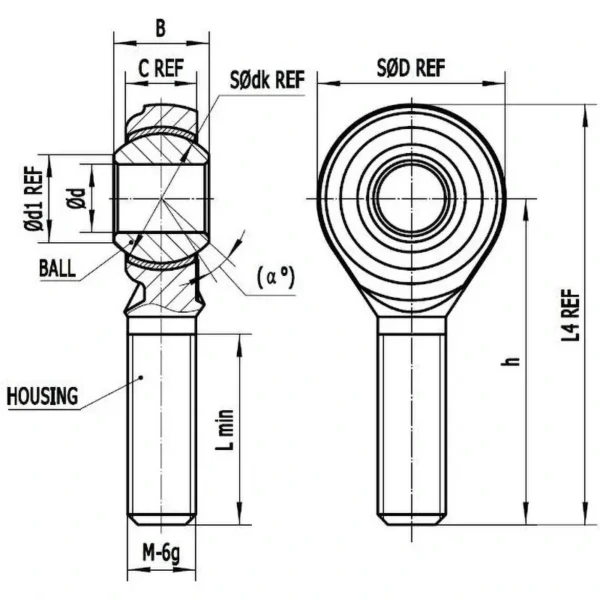

Dimensions M(mm): M8*1.25
Dimensions B(mm): 12
Dimensions C(mm): 9
Dimensions L(Min)(mm): 25
Dimensions L4(mm): 54
Dimensions SD(mm): 24
Dimensions d(mm): 8
Dimensions d1(mm): 10.4
Dimensions dk(mm): 15.88
Dimensions h(mm): 42
Weight (g): 33.3
Type: Right Thread
RoHS Directive (Compliance with 10 substances): Compliant
Dimensions alpha(degrees): 14

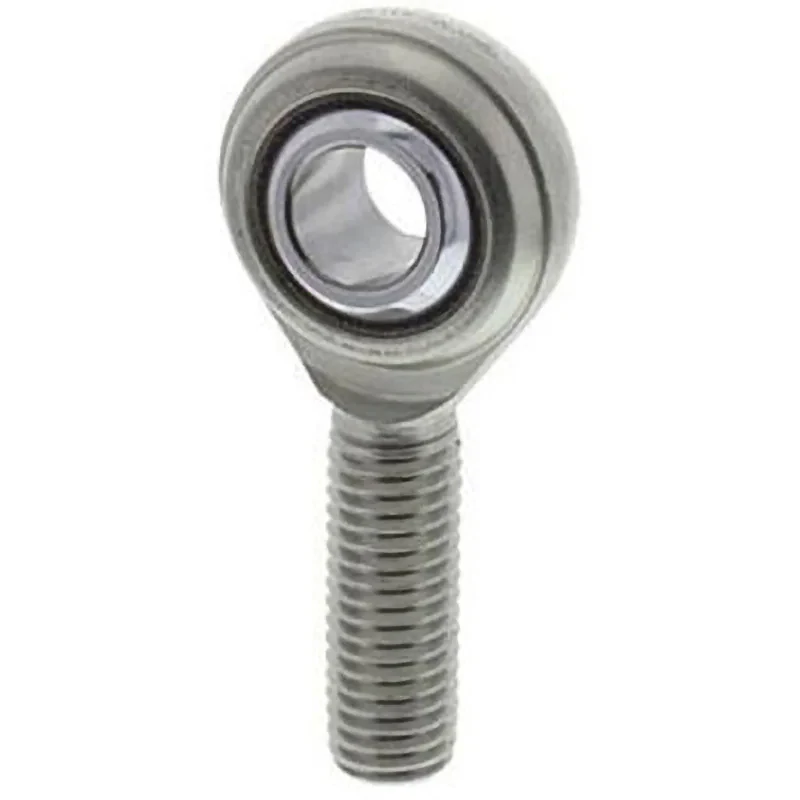

This spherical sliding bearing uses a spherical inner ring with precision and hardness equivalent to bearing steel balls｣ｬ and is used for mounting at the Rod End｣ｬ of oscillating movements.
