Description
Material: S45C
Heat Treatment: (Screw) Hardening HRC35 plus or minus 5
Surface Treatment: Black Oxide

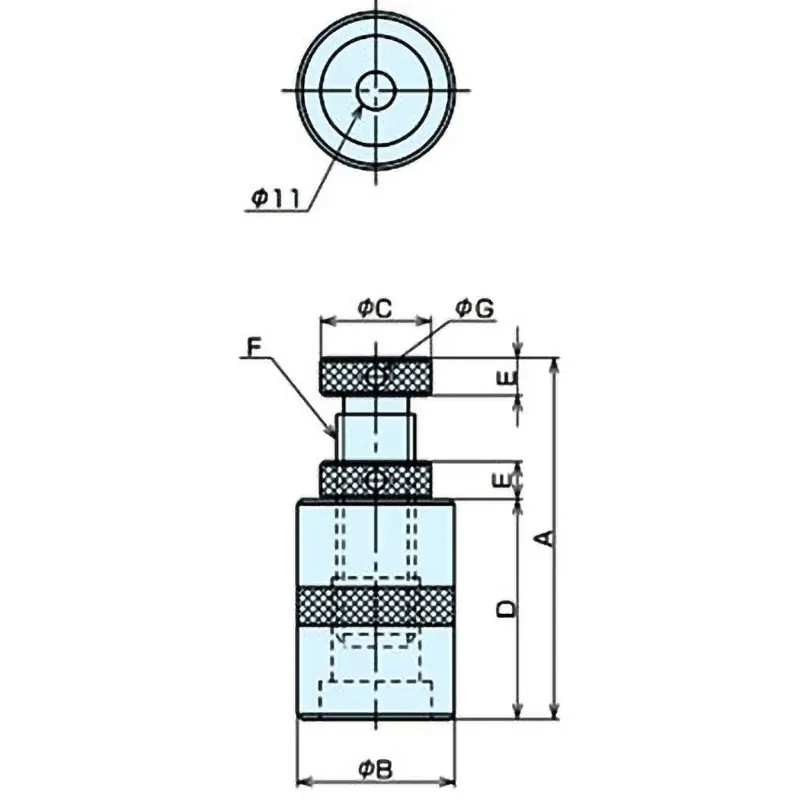

Dimension A (mm): 94 to 150
Dimension B (mm): 50
Dimension C (mm): 35
Dimension D (mm): 70
Dimension E (mm): 12
Dimension F (mm): TM25P4
Dimension G (mm): 5
Load Capacity (kN): 20
Weight (kg): 1.1
RoHS Directive (10 substances compliant): Compliant

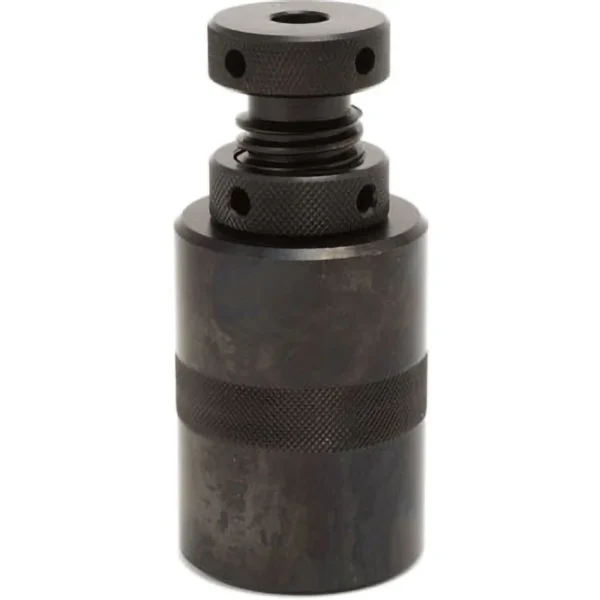

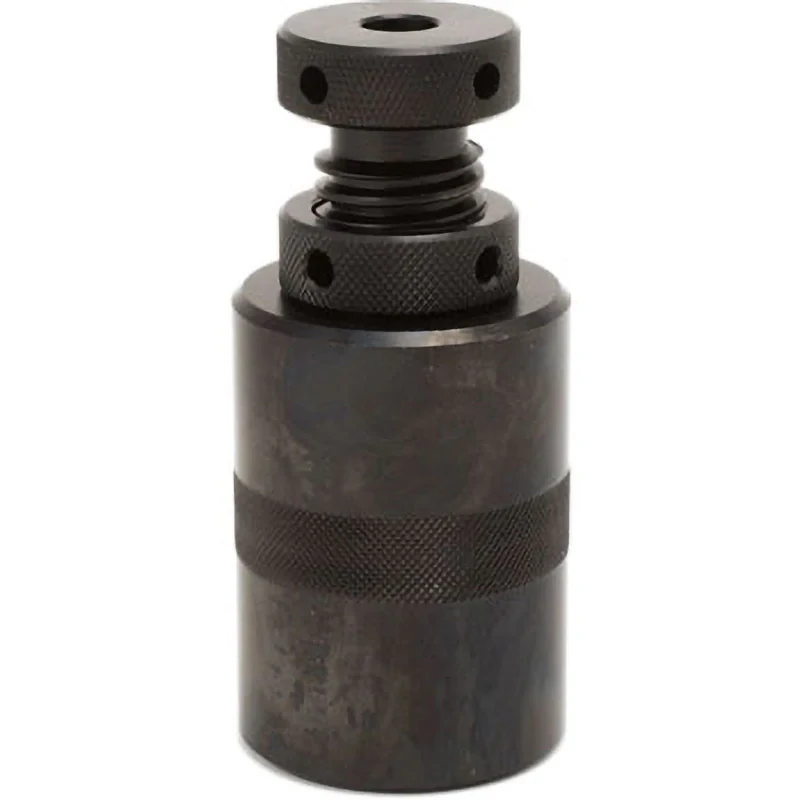

The Clamp Support Screw Jack is convenient for supporting various clamps.
When there is insufficient screw function or height, it can be stacked using 2 or 3 units (only the same size).
It is also convenient for supporting irregular shapes when using attachments.
