Description

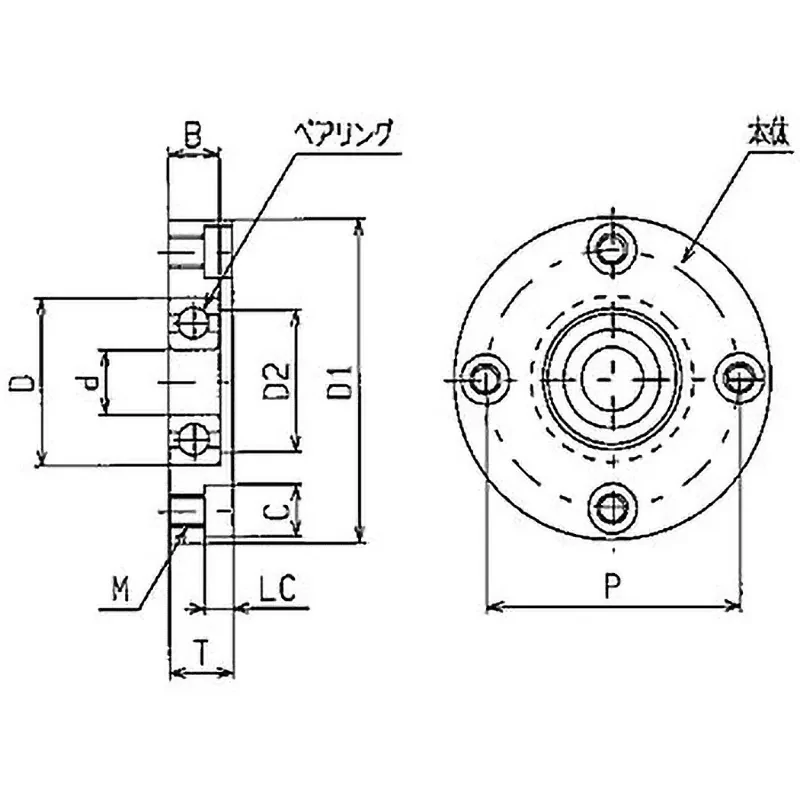

Dimension B (mm): 9 (-0.20 to -0.15)
Dimension C (mm): 8
Dimension D (mm): 30
Dimension D1 (mm): 54
Dimension D2 (mm): 24
Dimension L:C (mm): 4.4
Dimension P (mm): 44
Dimension T (mm): 11
Dimension D (mm): 10
Material (Main Body): SS400
Thread Diameter (mm): 5
Material (Bearing): Steel
Surface Treatment (Main Body): Electroless Nickel Plating

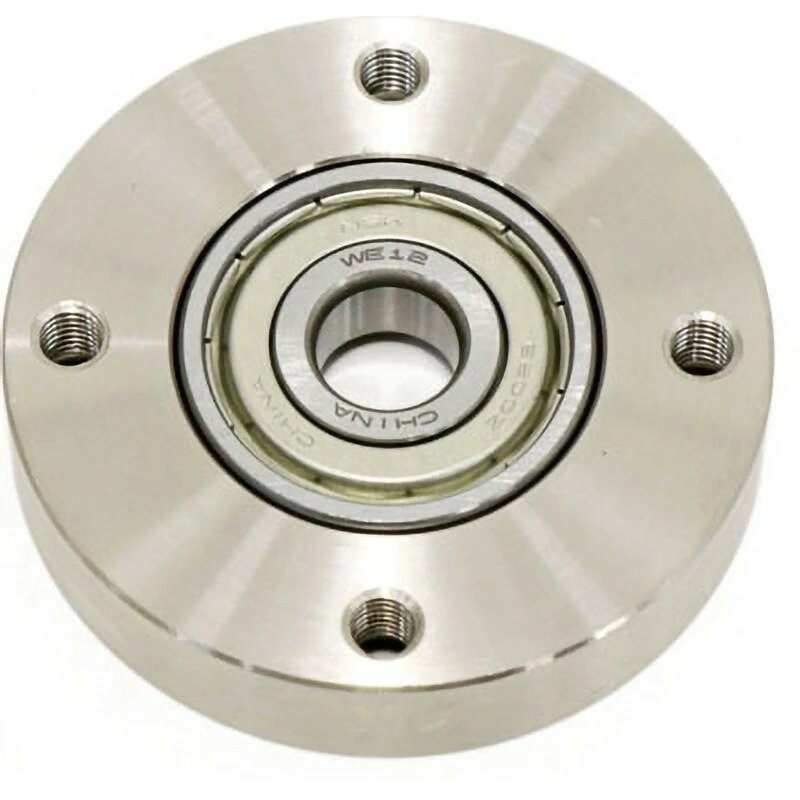

This type eliminates the retaining ring and allows for direct attachment of the bearing end face to machinery or devices. It is thin and compact.
Due to the counterbore processing in the mounting screw hole section, it can be installed from either the screw hole side or the counterbore side.
