Description

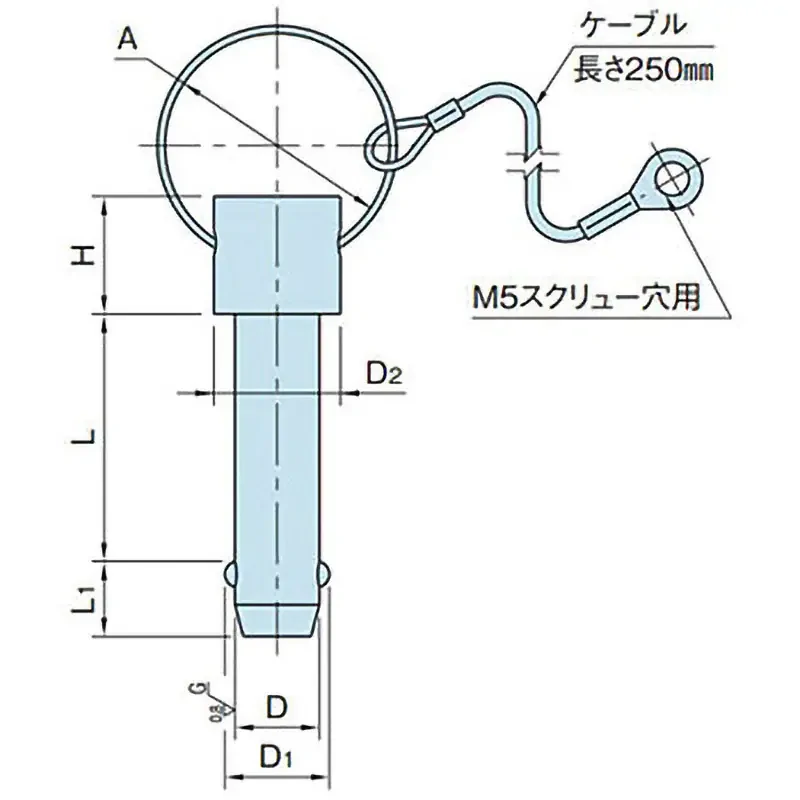

Dimensions L(mm): 25(+0.5/0)
Dimensions L1(mm): 5.8(plus or minus 1)
Material: (Shank) SUS630
Material: (Ball) SUS440C
Surface treatment: (Shank) Oxidation (passivation) coating, polishing finish
Dimensions D(mm): 5(-0.03/-0.13)
Dimensions H(mm): 13
Dimensions A(mm): 25
Dimensions D1(mm): 5.6
Mass(g): 24
Dimensions D2(mm): 9.5

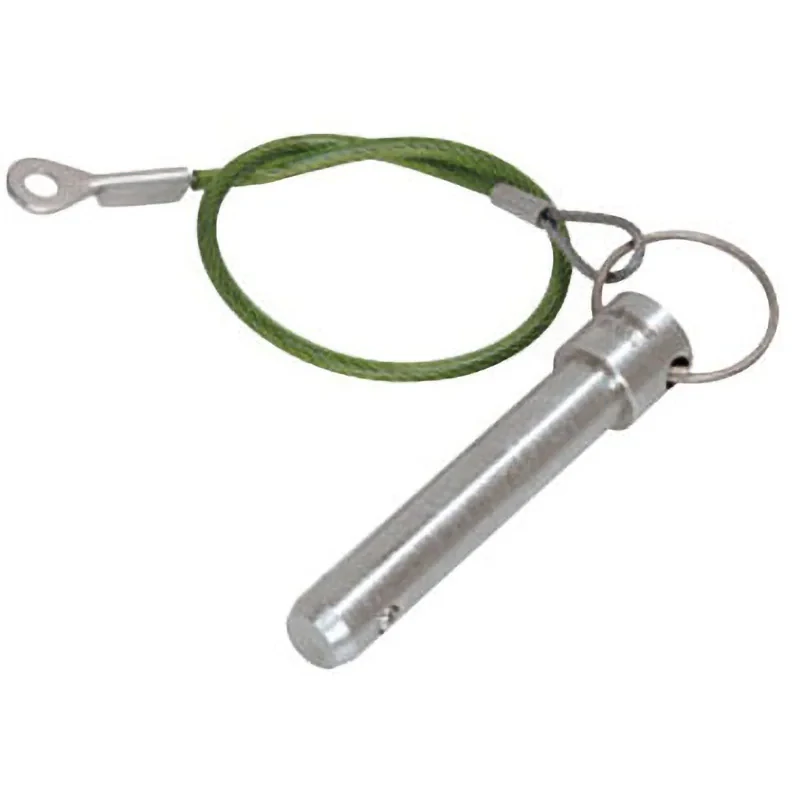

This allows for quick fixing and separation of workpieces and parts that are frequently joined.
It is suitable for use as a substitute for bolts or rivets when rapid temporary separation is required or when it will not be separated once fixed.
