Description

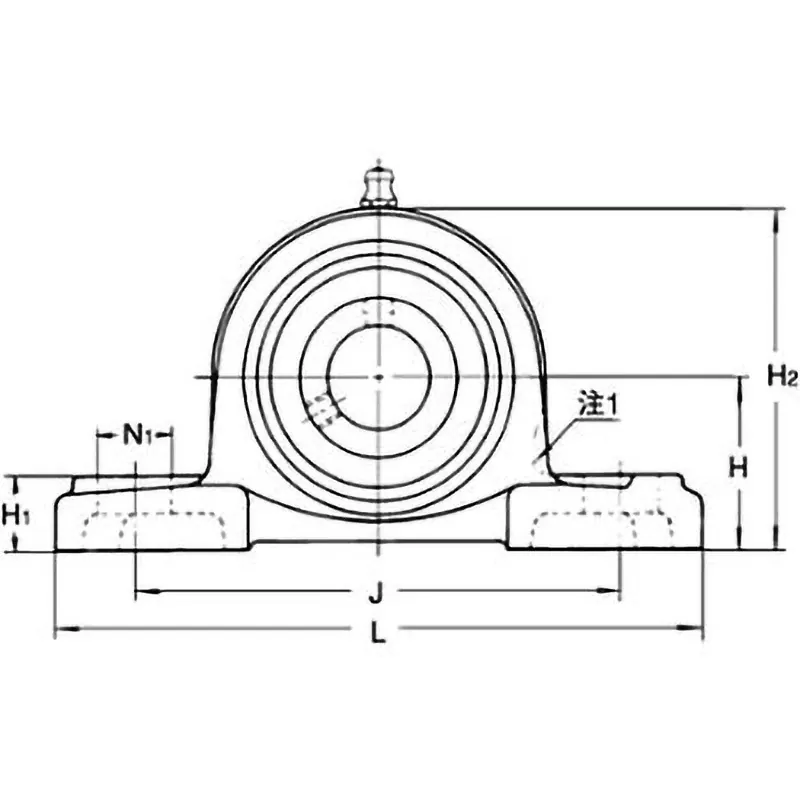

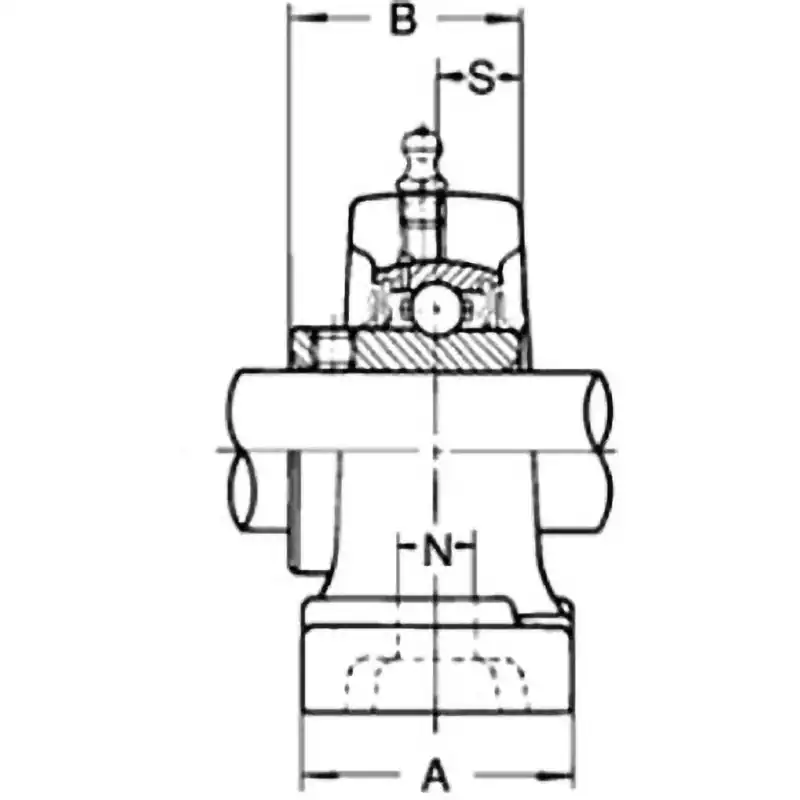

Dimension A (mm): 70
Dimension A4 (mm): 102
Dimension A5 (mm): 114
Dimension A6 (mm): 10
Dimension A7 (mm): 11
Dimension B (mm): 65.1
Dimension H (mm): 69.8
Dimension H1 (mm): 25
Dimension H2 (mm): 138
Dimension H5 (mm): 145
Dimension J (mm): 184
Dimension L (mm): 241
Dimension N (mm): 20
Dimension N1 (mm): 25
Dimension S (mm): 25.4
Axis diameter (mm): 60

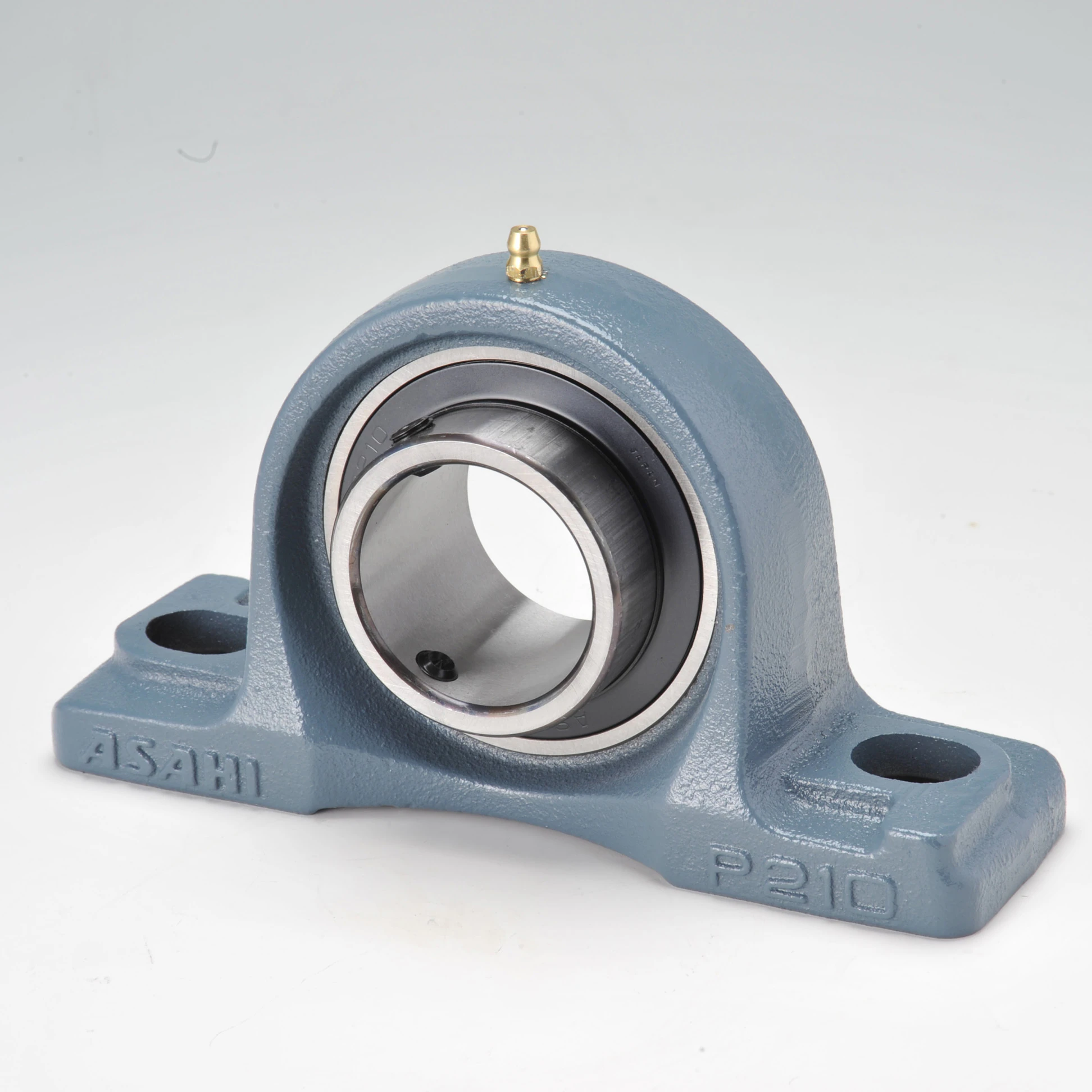

Shape: Pillow shape unit
Material: High carbon chromium bearing steel
Grease nipple: With grease nipple
Load type: For light load
No cover
Axis hole type: Cylindrical hole with set screw
Weight (kg): 4.7
Basic static load rating (kN): 36.1
Basic dynamic load rating (kN): 52.5
Mounting bolt call: M16
RoHS directive (10 substances compliance): Compliant
Rational self-aligning capability
Complete dust-proofing due to a fully sealed device between the bearing and bearing box
Possible to replace only the bearing due to complete compatibility between the bearing and bearing box
The surface painting of the bearing box exterior uses melamine resin-based baked paint, ensuring good adhesion of the coating and maintaining a beautiful gloss for a long time.
