Description

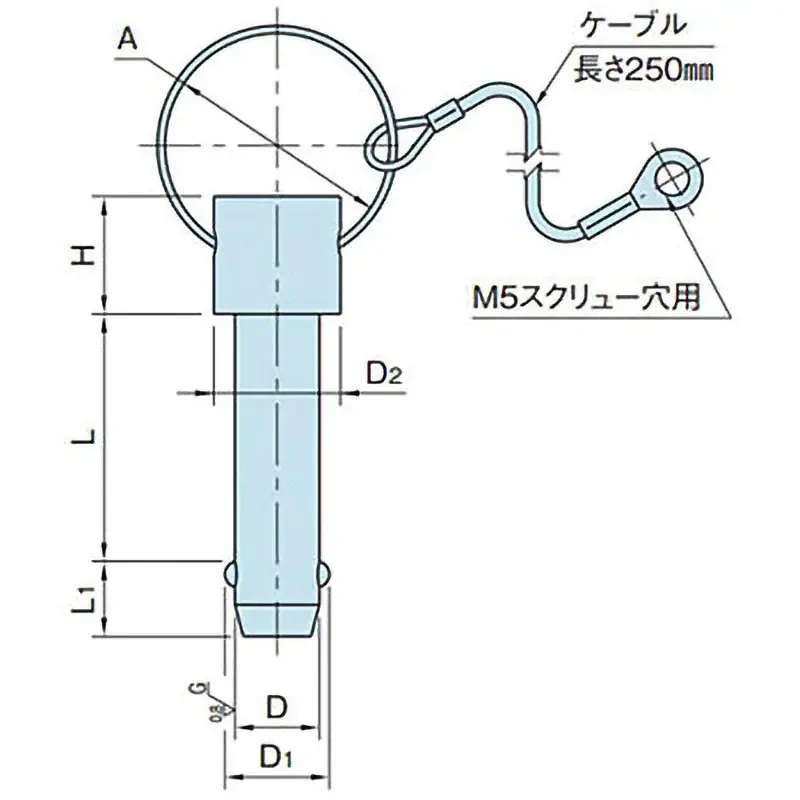

Dimensions L(mm): 20(+0.5/0)
Dimensions L1(mm): 5.8(plus or minus 1)
Material: (Shank) SUS630
Material: (Ball) SUS440C
Surface Treatment: (Shank) Oxide (passivation) film, polished finish
Dimensions D(mm): 5(-0.03/-0.13)
Dimensions H(mm): 13
Dimensions A(mm): 25
Dimensions D1(mm): 5.6
Weight (g): 23
Dimensions D2(mm): 9.5

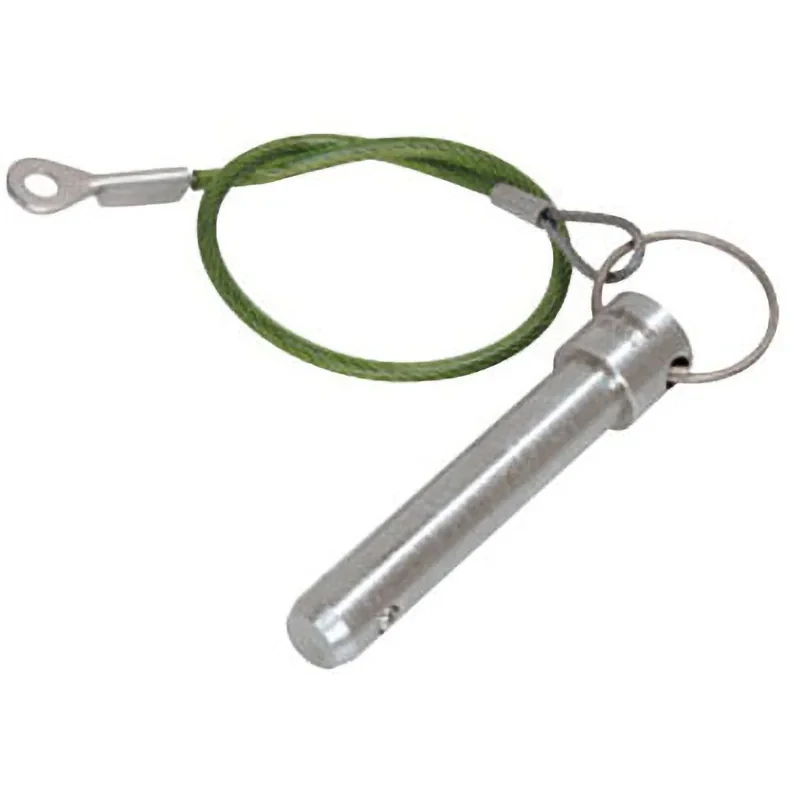

This allows for rapid fixing and separation of workpieces and parts that are frequently joined together.
It is suitable for use as a substitute for bolts and rivets when quick temporary separation is needed or when a fixed state is required without separation.
