Description

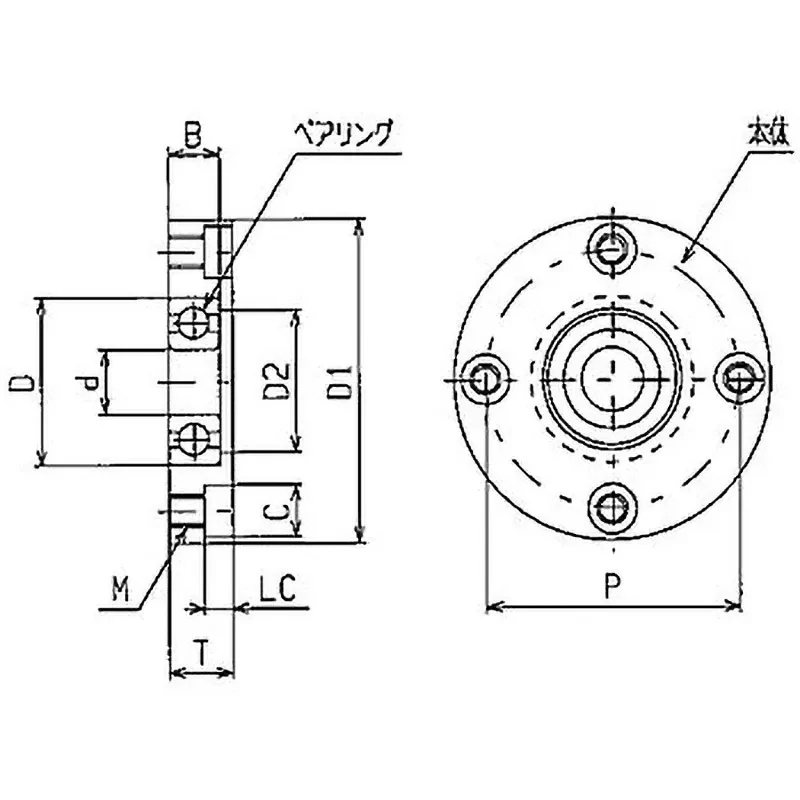

Dimension B (mm): 8 (-0.20 to -0.15)
Dimension C (mm): 8
Dimension D (mm): 26
Dimension D1 (mm): 50
Dimension D2 (mm): 22
Dimension L:C (mm): 4.4
Dimension P (mm): 40
Dimension T (mm): 10
Dimension D (mm): 10
Material (Body): SS400
Screw Diameter (mm): 5
Material (Bearing): Steel
Surface Treatment (Body): Electroless Nickel Plating

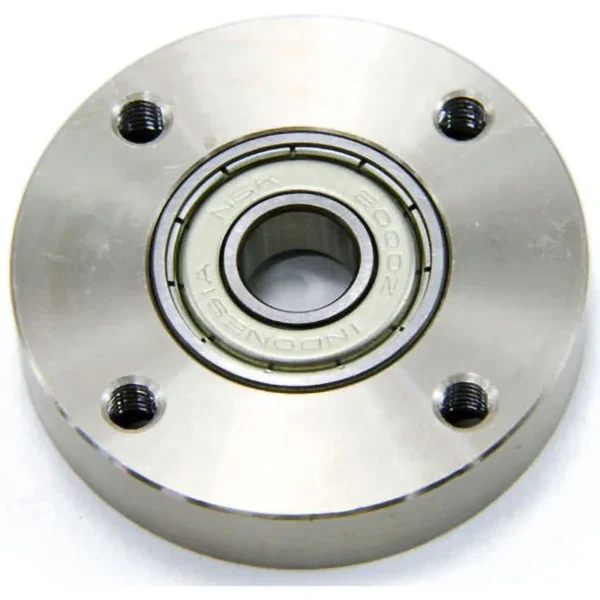

This type eliminates the retaining ring and allows the bearing end face to be directly attached to machinery or devices. It is thin and compact.
The mounting screw hole section is countersunk, allowing installation from either the screw hole side or the countersunk side.
