Description
Material: S45C
Heat Treatment: (Screw) Hardening HRC35 plus or minus 5
Surface Treatment: Black Oxide

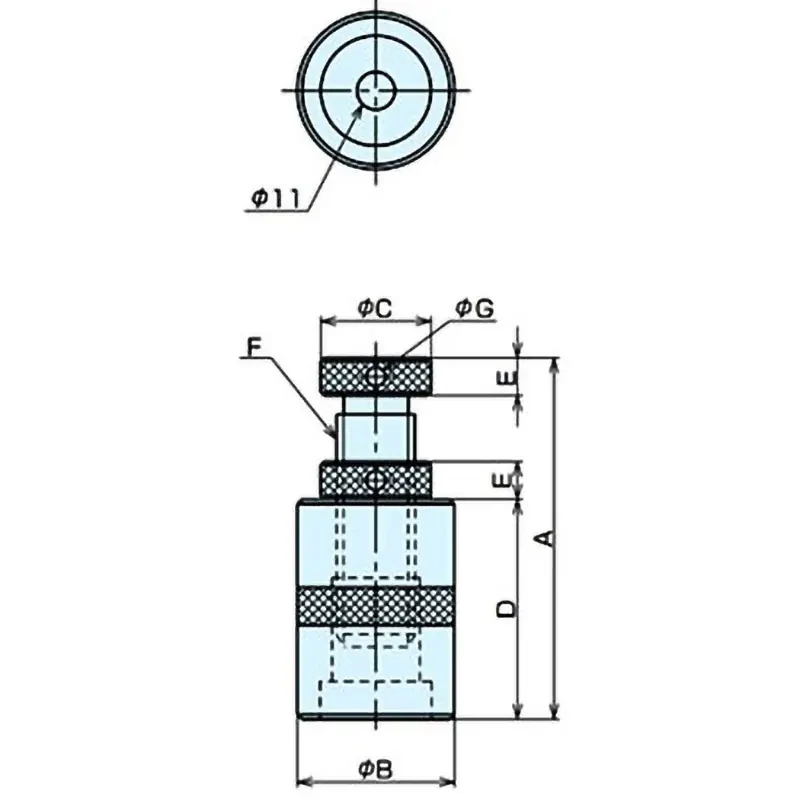

Dimension A (mm): 70 to 100
Dimension B (mm): 45
Dimension C (mm): 35
Dimension D (mm): 46
Dimension E (mm): 12
Dimension F (mm): TM25P4
Dimension G (mm): 5
Load Capacity (kN): 20
Weight (kg): 0.63
RoHS Directive (10 substances compliance): Compliant

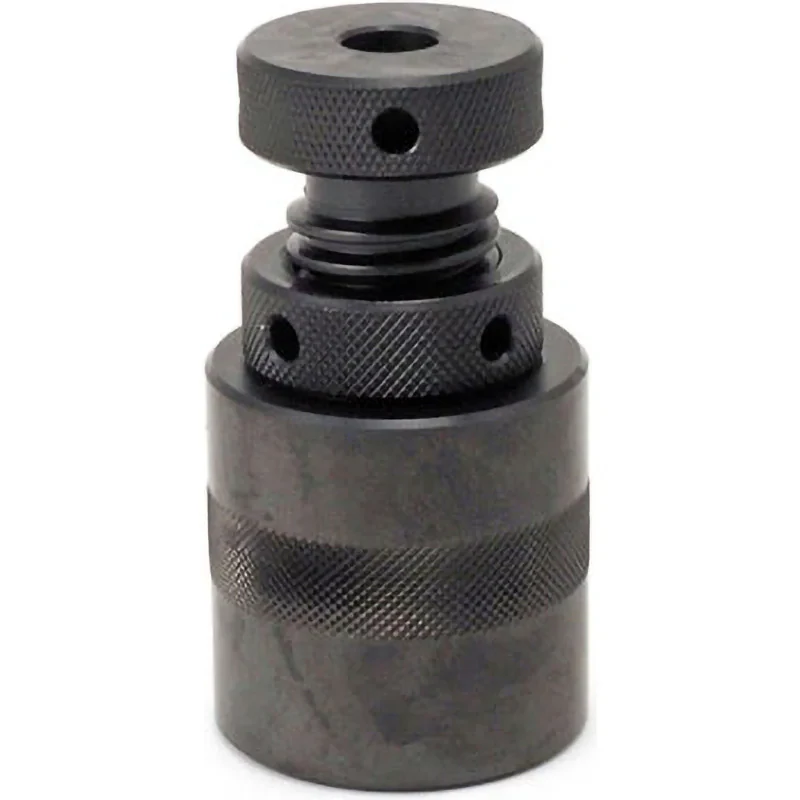

The Clamp Support Screw Jack is convenient for supporting various clamps.
When one unit is insufficient for screw functionality or height, stacking two or three units is possible (only with the same size).
Using attachments makes it convenient for supporting irregularly shaped objects.
