Description

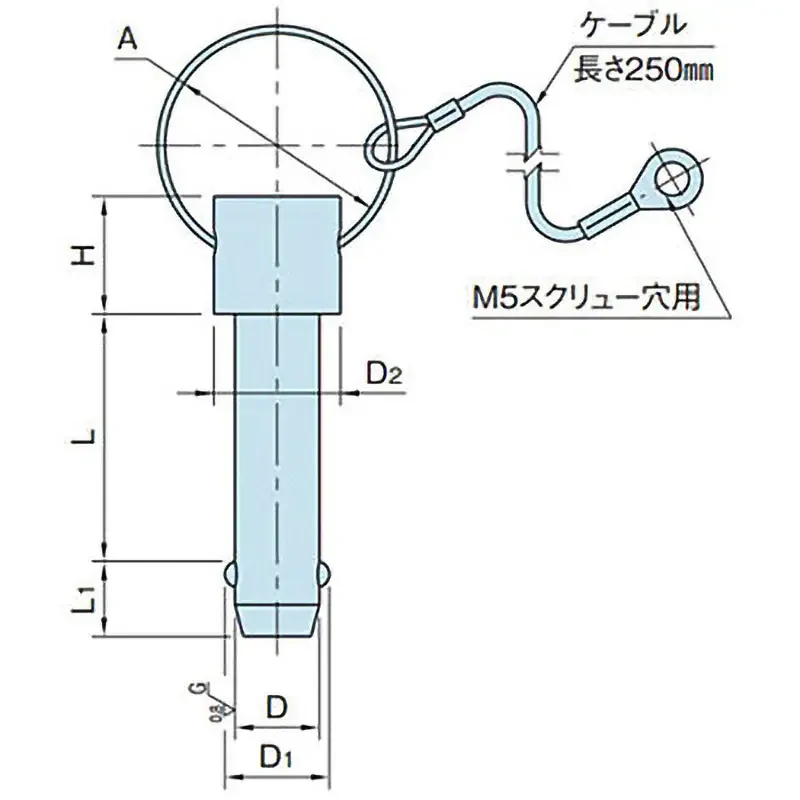

Dimensions L(mm): 15(+0.5/0)
Dimensions L1(mm): 5.8(plus or minus 1)
Material: (Shank) SUS630
Material: (Ball) SUS440C
Surface Treatment: (Shank) Oxidation (passivation) film, Polished finish
Dimensions D(mm): 5(-0.03/-0.13)
Dimensions H(mm): 13
Dimensions A(mm): 25
Dimensions D1(mm): 5.6
Mass (g): 22
Dimensions D2(mm): 9.5
It can quickly secure and separate workpieces and parts that are frequently joined together.
Suitable for use as a substitute for bolts and rivets for rapid temporary separation or when a fixed connection should not be separated once secured.
