Description

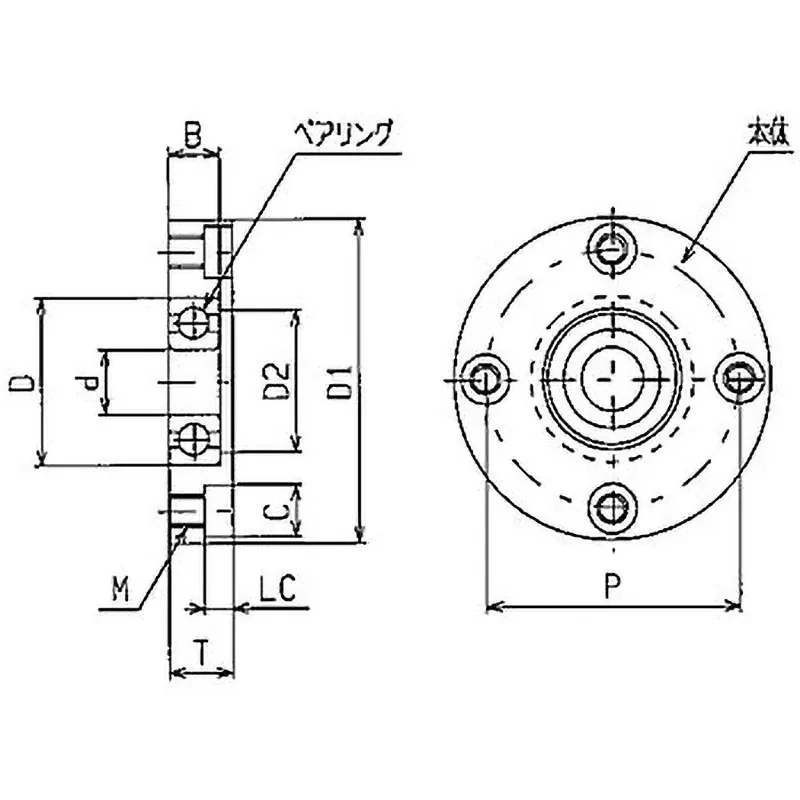

Dimension B (mm): 6 (-0.20 to -0.15)
Dimension C (mm): 8
Dimension D (mm): 17
Dimension D1 (mm): 39
Dimension D2 (mm): 13
Dimension L:C (mm): 4.4
Dimension P (mm): 29
Dimension T (mm): 8
Dimension D (mm): 6
Material (Main Body): SS400
Thread Diameter (mm): 5
Material (Bearing): Steel
Surface Treatment (Main Body): Electroless Nickel Plating

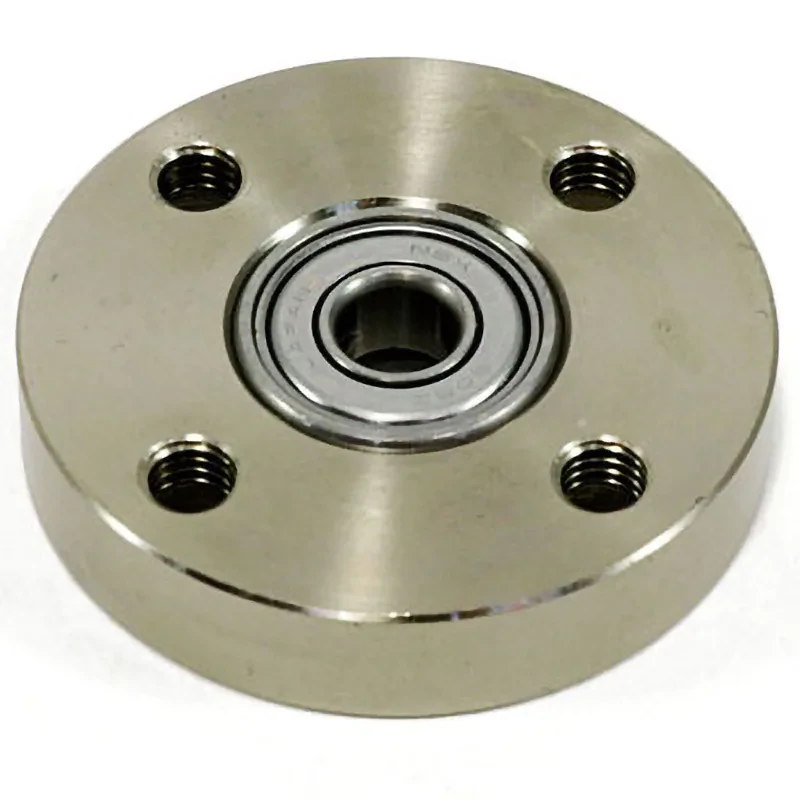

This type eliminates the retaining ring and allows for direct attachment of the bearing end face to the machine/device. It is thin and compact.
Because the mounting hole area has a counterbore processing, it can be mounted from either the threaded hole side or the counterbore side.
