Description

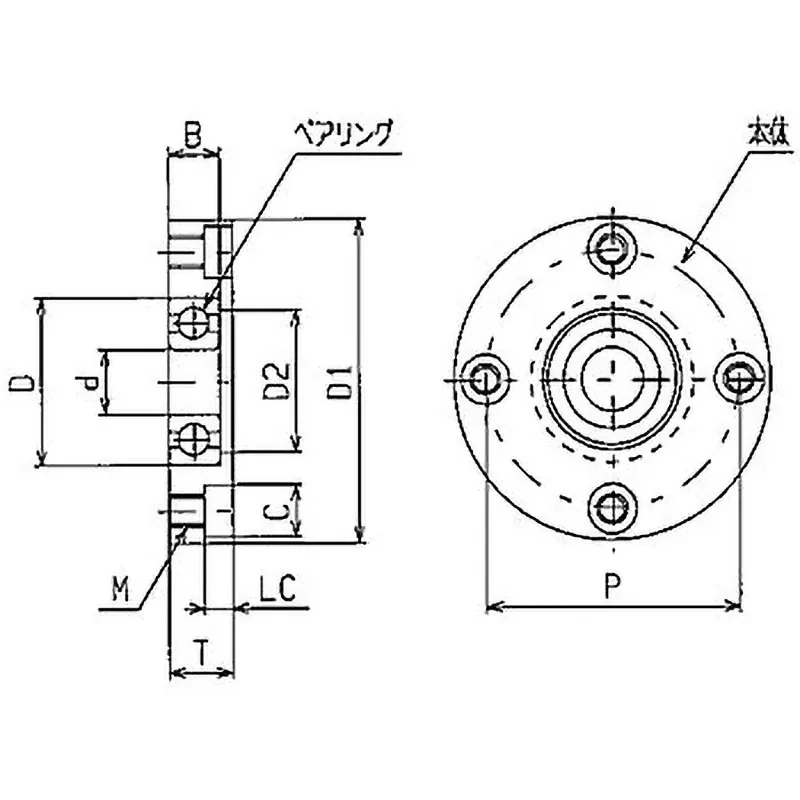

Dimension B (mm): 5 (-0.20 to -0.15)
Dimension C (mm): 8
Dimension D (mm): 14
Dimension D1 (mm): 36
Dimension D2 (mm): 10
Dimension L:C (mm): 4.4
Dimension P (mm): 26
Dimension T (mm): 7
Dimension D (mm): 5
Material (Body): SS400
Screw Diameter (mm): 5
Material (Bearing): Steel
Surface Treatment (Body): Electroless Nickel Plating

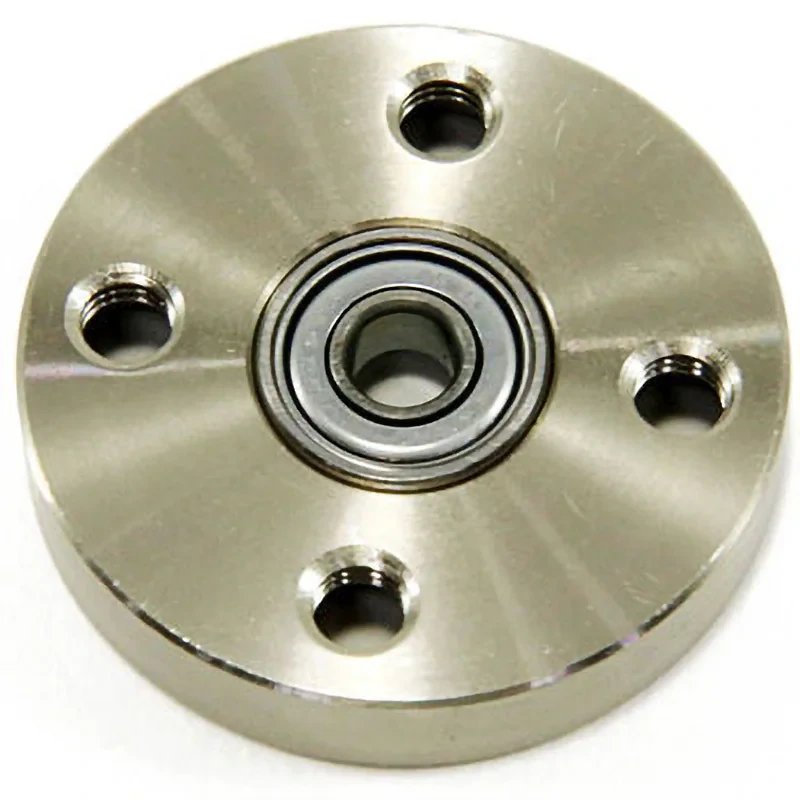

This type eliminates the retaining ring and allows the bearing end face to be mounted directly to the machine or device. It is thin and compact.
The mounting screw hole section has a counterbore, allowing for installation from either the screw hole side or the counterbore side.
