Description
Contents: 1 piece

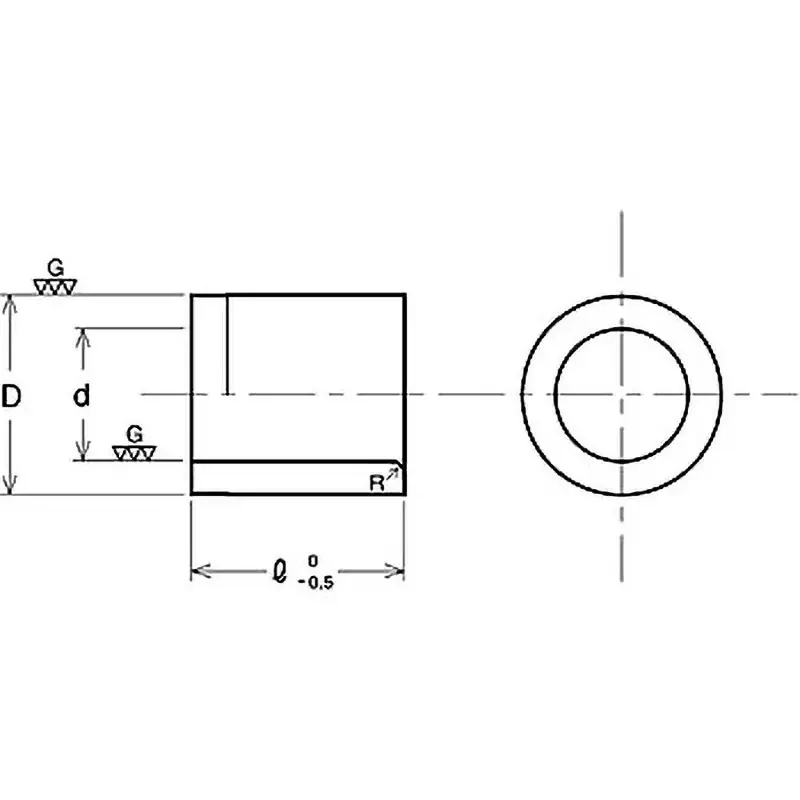

Overall length l(mm): 16
Part number: AK5.0*16
Outer diameter D(mm): 10
Dimension R(mm): 1
Inner diameter d(mm): 5
Overall length l(mm): 16
Inner diameter tolerance (mm): +0.030/+0.004
Runout of outer diameter relative to inner diameter (mm): within 0.012
Outer diameter tolerance p6 +0.024/+0.015
