LAMP (Sugatsune) Slide Rail 3618 >3618-550

¥2,638

999 in stock

SKU: r22013681727f Category:

Description

Content Volume: 1 Set
Stroke (mm): 550
Travel Distance (mm): 550
Part Number: 3618-550
Dimension A (mm): 192
Dimension B (mm): 256
Dimension C (mm): 224
Dimension D (mm): 352
Dimension E (mm): 448
Width W (mm): 12.7
Type: Slide Type
Stroke (mm): 550
Travel Distance (mm): 550
Rail Length (mm): 550
Rated Load (N): 196/Pair
Number of Steps: 3
Material: (Rail) Steel
Surface Treatment: (Rail) Glossy Chromate Treatment
Set Contents: 1 Piece Each for Left and Right
Material: / Finished Steel / Intermediate Rail, Inner Rail, Outer Rail: Glossy Chromate Treatment (Trivalent Chromium) Retainer: Zinc-Plated Steel Plate
Height (mm): 36
Weight (g): 1300
Recommended Screw: M4 Bind Screw

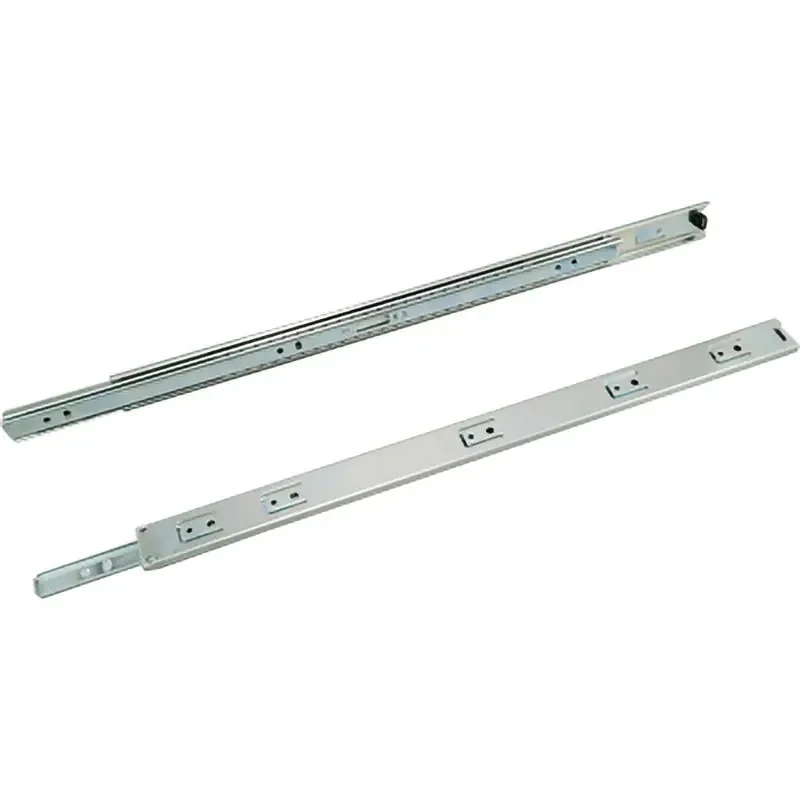

This is a 3-stage slide rail that allows the inner member to be fully extended.
It has a simple catch function that holds the closed state when the rail is fully closed.
The inner member can be removed with lever operation.
The removal lever is interchangeable for both left and right sides.
A new 150 mm rail length type has been added.
