NSK (Nippon Seiko Kabushiki Kaisha) Pillow Block Unit > UCPX08

¥6,478

SKU: r22012887ab8f Category:

Description

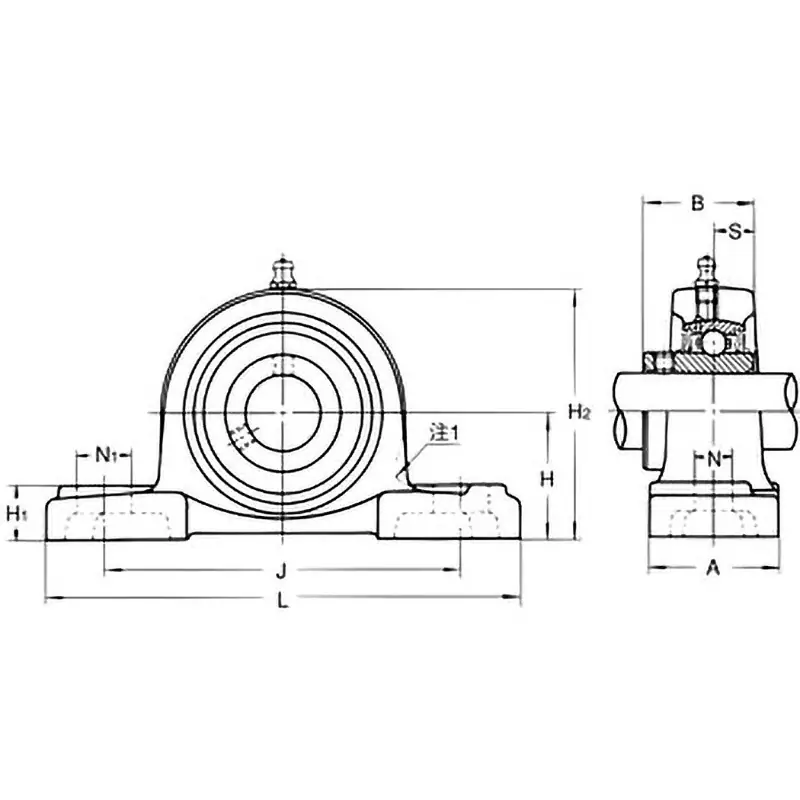

Dimension A (mm): 67
Dimension B (mm): 49.2
Dimension H (mm): 58.7
Dimension H1 (mm): 26
Dimension H2 (mm): 113
Dimension J (mm): 156
Dimension L (mm): 222
Dimension N (mm): 20
Dimension N1 (mm): 32
Dimension S (mm): 19
Axis diameter (mm): 40
Shape: Pillow Block Unit
Bearing designation number: UCX08
Mounting bolt designation: M16
Unit mass (kg): 3.5
Bearing box designation number: PX08
Basic dynamic load rating Cr (kN): 33
Basic static load rating Cor (kN): 20.5
RoHS directive (10 substances compliance): Compliant

Rational self-alignment

Completely dustproof due to a fully sealed bearing and bearing box

Only the bearing can be replaced due to complete compatibility between the bearing and bearing box

The outer surface of the bearing box is coated with melamine resin-based baked paint, providing excellent adhesion of the coating and maintaining a beautiful gloss for a long time
