Description

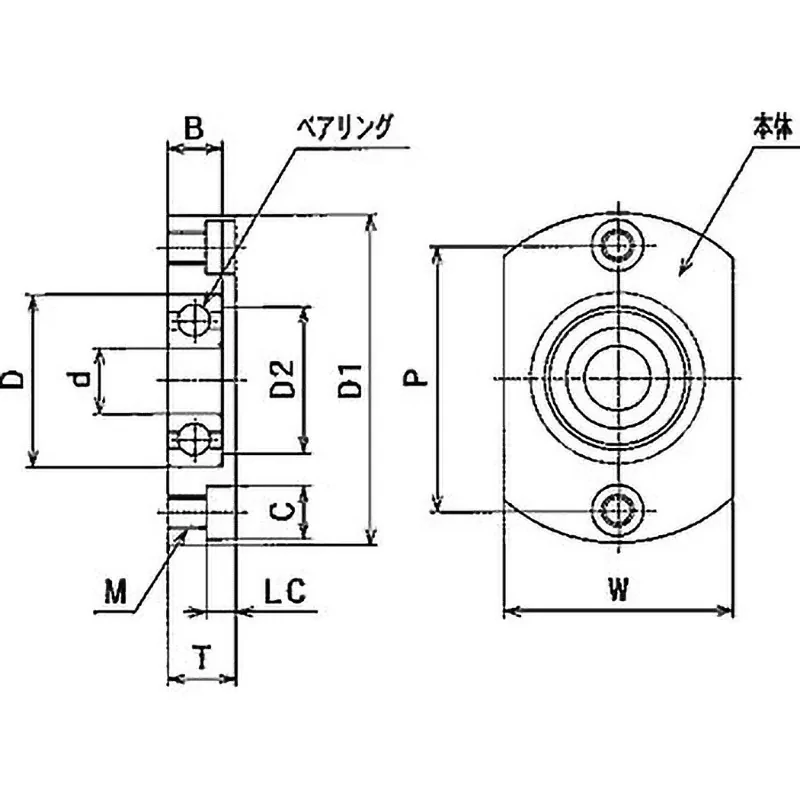

Dimensions B (mm): 11 (-0.20 to -0.15)
Dimensions C (mm): 9.5
Dimensions D (mm): 35
Dimensions D1 (mm): 64
Dimensions D2 (mm): 29
Dimensions F (mm): –
Dimensions L:C (mm): 5.4
Dimensions P (mm): 52
Dimensions T (mm): 13
Dimensions W (mm): 44
Dimensions D (mm): 15
Material (Body): SS400
Thread Diameter (mm): 6
Material (Bearing): Steel
Surface Treatment (Body): Electroless Nickel Plating

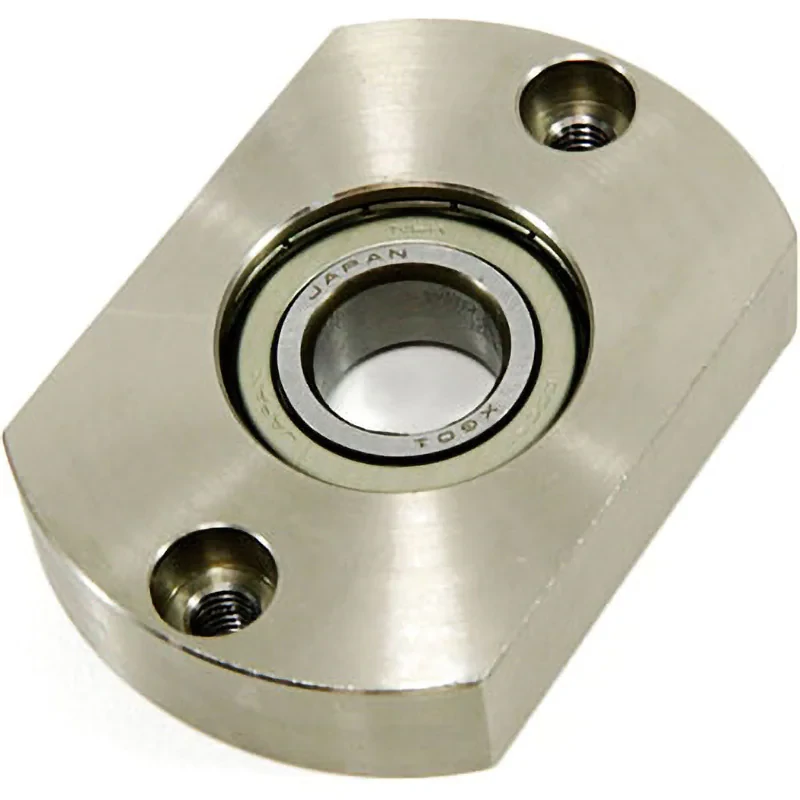

The flange width is small, allowing for reduced installation space.
The design eliminates the retaining ring, allowing the bearing end face to be directly mounted to the machine or equipment.
Due to the counterbore processing on the mounting screw hole area, it can be installed from either the screw hole side or the counterbore side.
