Description

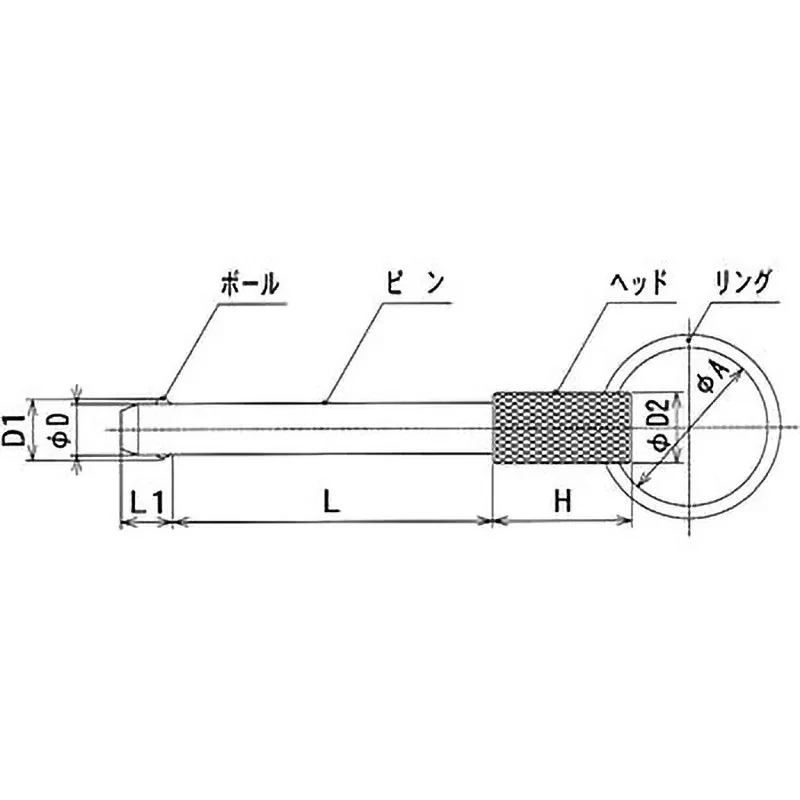

Dimension A (mm): 25
Dimension D (mm): 10
Dimension D1 (mm): 12
Dimension D2 (mm): 16
Dimension H (mm): 27
Dimension L (mm): 40
Dimension L1 (mm): 9
Hardness HRC: (Ball) 55 or more
Material / Treatment (Pin) S45C / Electroless Nickel, (Ball) SUS440C, (Head) SUM23 / Electroless Nickel, (Ring) SWRH / Nickel
Recommended Hole Inner Diameter (mm): 10 (0, +0.09)
