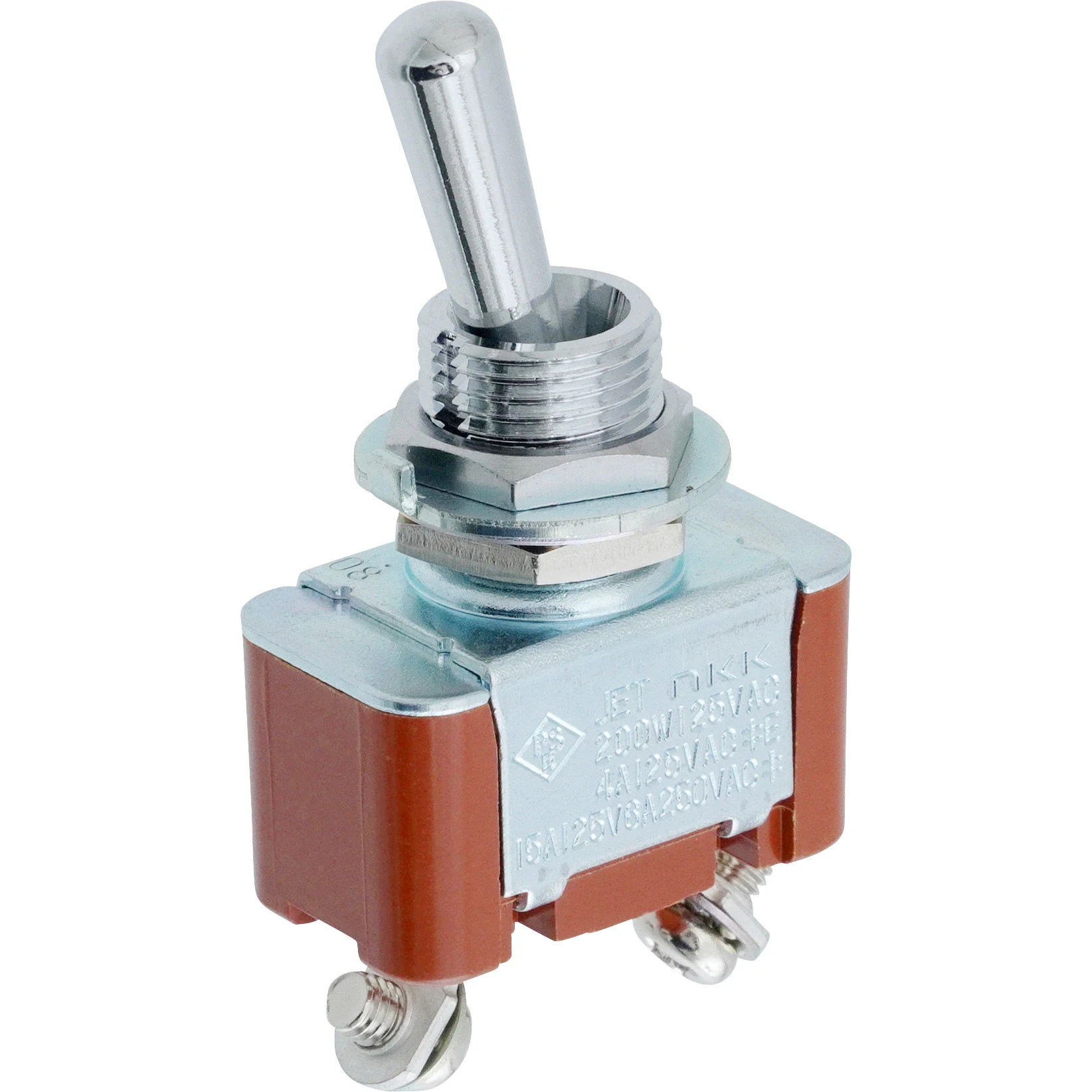

Description
Description: Quantity: 1 piece
Function operation: ON-OFF
Circuit: Single pole single throw
Part number: S-301T
Circuit: Single pole single throw
Terminal shape: Screw
Function operation: ON-OFF
Dielectric strength: AC2.0kV (for more than 1 minute)
Accessories: Hex nut (AT-503, AT-527), Internal tooth washer (AT-508), Mounting ring (AT-506)
Trusco part number: 470-7532
Number of poles: 1
Operating temperature range (Celsius degrees): -10 to 70
Standards: UL, C-UL, PSE
Operation method: –
Heat resistance: When using a soldering iron: Tip temperature: below 390 Celsius degrees Soldering time: within 4s Number of times: 2 times (after returning to room temperature)
Separate sale accessories: Waterproof cap (AT-401, AT-402, AT-4181)
Motor (W): –

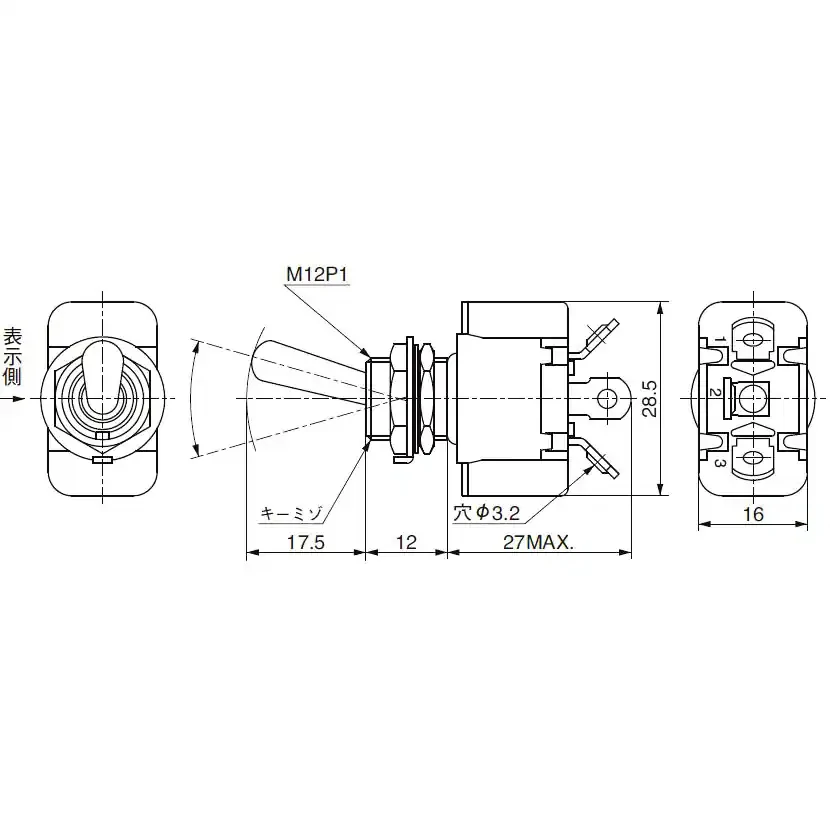

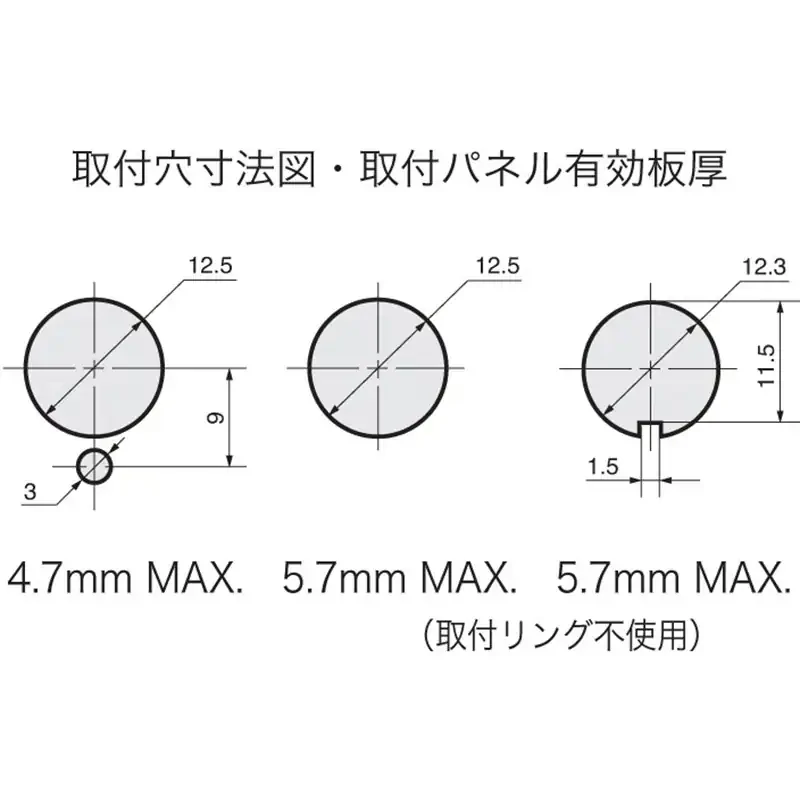

Mounting hole diameter (Diameter mm): 12.5, 12.3
Contact resistance (Megaohm): below 10 (at DC2-4V 100mA)
Inductive load (A): 10 (AC125V) (Power factor = 0.6)
Insulation resistance (Gigaohm): 1 or more (DC500V)
Mechanical durability: More than 50,000 operations
Electrical durability: More than 25,000 operations
Lever tilt angle (degrees): 32
Operation part shape: Basic lever
Panel mounting method: Screw mounting
Maximum panel thickness (mm): 5.7
Insulation resistance: 1 Gigaohm or more (DC500V)
RoHS Directive (10 substances compliance): Compliant
Dielectric strength (V/min): AC2k or more
Resistive load (A): 15 (AC125V), 6 (AC250V), 20 (DC30V)
The compact toggle switch group boasts a track record of half a century, utilizing robust high-capacity switches made from contact materials that are strong against arcing and maintain high contact reliability.
The double fixation compression developed by Japan Switch Industry Co., Ltd. prevents terminal play caused by soldering.
Special silver alloy contacts are strong against arc wear and maintain stable contact resistance.
The switching mechanism is a seesaw type, characterized by long lifespan, robustness, and high capacity.
