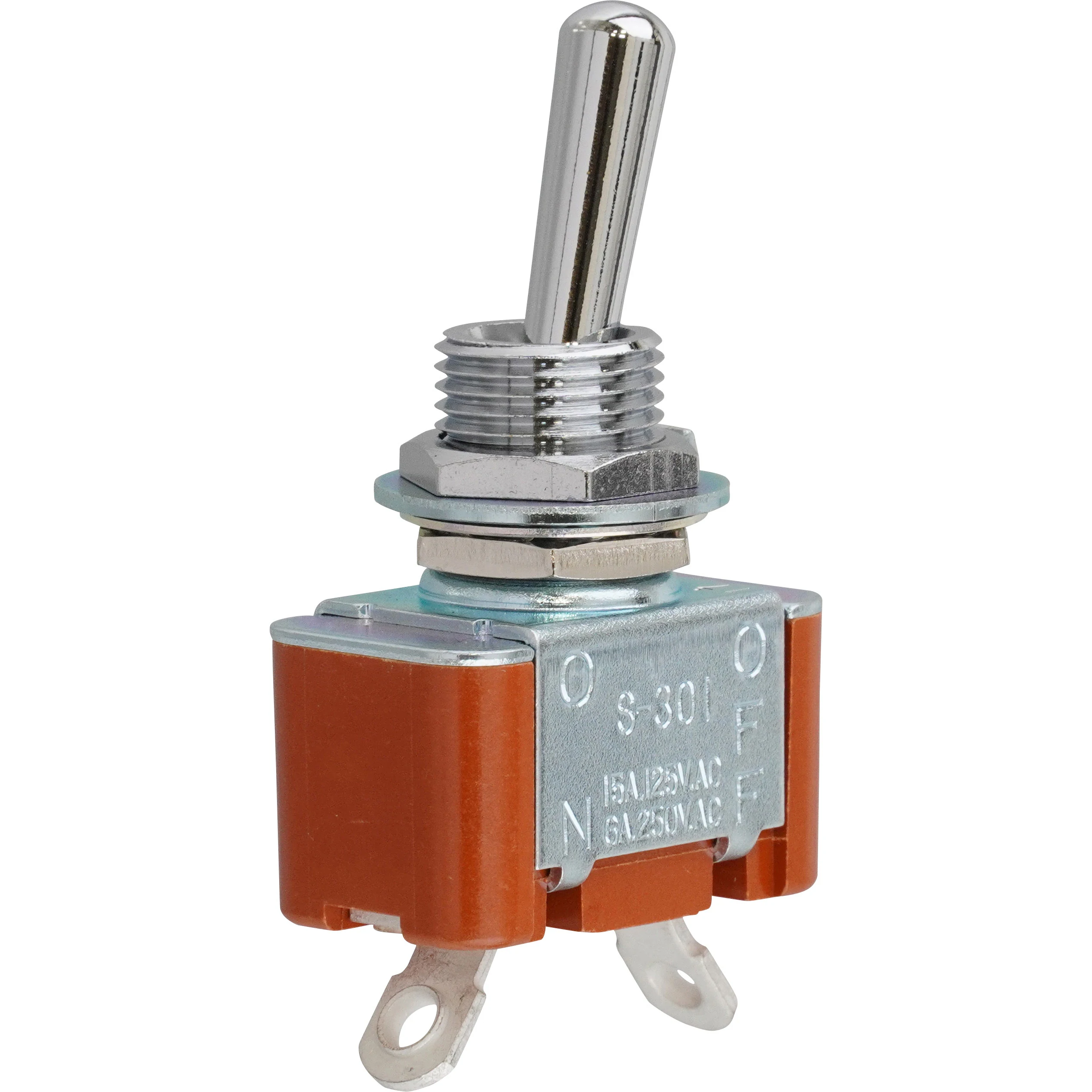

Description
Quantity: 1 piece
Function Operation: ON-OFF
Circuit: Single Pole Single Throw
Part Number: S-301
Circuit: Single Pole Single Throw
Terminal Shape: Solder
Function Operation: ON-OFF
Dielectric Strength: AC2.0kV (for more than 1 minute)
Included Accessories: Hex Nut (AT-503, AT-527), Internal Tooth Washer (AT-508), Mounting Ring (AT-506)
Trusco Part Number: 438-5110
Number of Poles: 1
Operating Temperature Range (Celsius degrees): -10 to 70
Standards: UL, C-UL, PSE
Operating Method: –
Heat Resistance: When using a soldering iron: Tip temperature: below 390 Celsius degrees, Soldering time: within 4s, Number of times: 2 times (after returning to room temperature)
Separate Sold Accessories: Waterproof Cap (AT-401, AT-402, AT-4181)
Motor (W): –

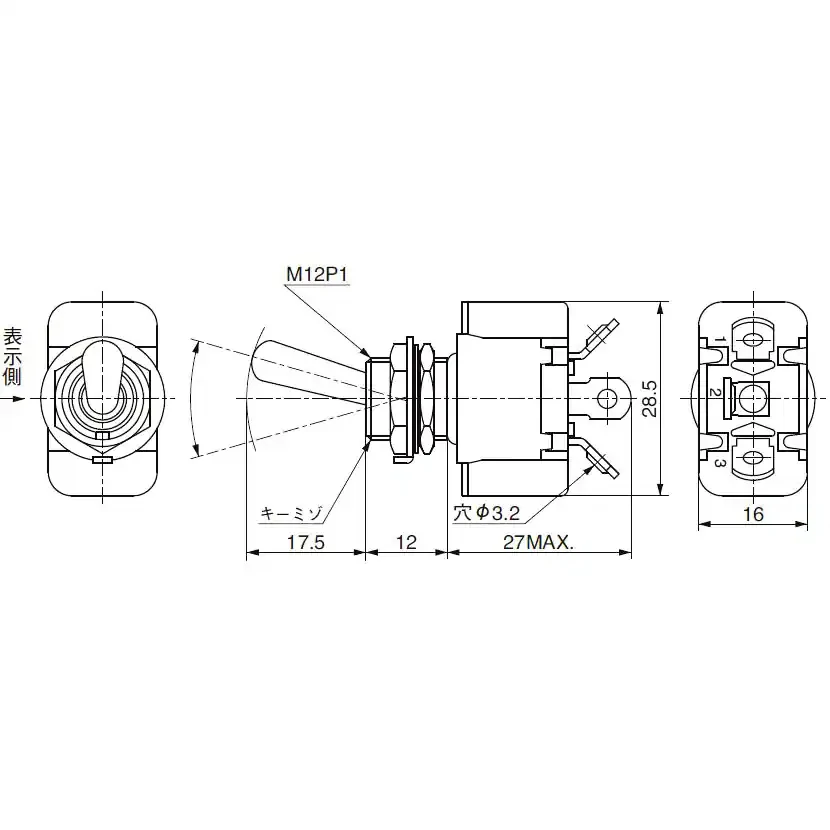

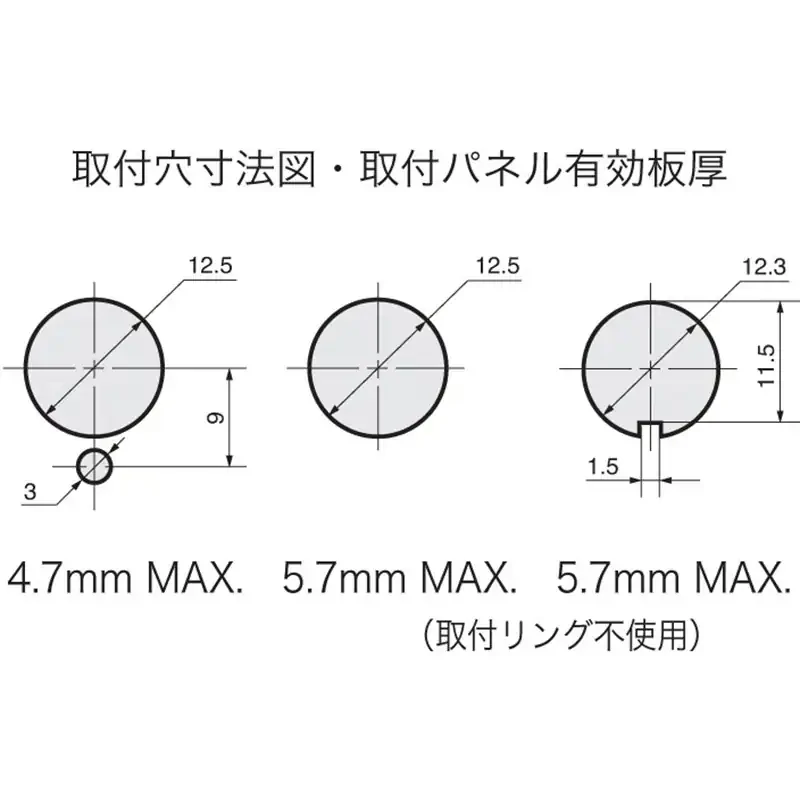

Mounting Hole Diameter (Diameter mm): 12.5, 12.3
Contact Resistance (Megaohm): 10 or less (at DC2-4V 100mA)
Inductive Load (A): 10 (AC125V) (Power Factor = 0.6)
Insulation Resistance (Gigaohm): 1 or more (DC500V)
Mechanical Switching Durability: More than 50,000 times
Electrical Switching Durability: More than 25,000 times
Lever Drop Angle (degrees): 32
Operation Part Shape: Basic Lever
Panel Mounting Method: Screw Mounting
Maximum Panel Thickness (mm): 5.7
Insulation Resistance: 1 Gigaohm or more (DC500V)
RoHS Directive (10 substances compliant): Compliant
Dielectric Strength (V/min): AC2k or more
Resistive Load (A): 15 (AC125V), 6 (AC250V), 20 (DC30V)
The small toggle switch group boasts a track record of over half a century, featuring small, robust, high-capacity switches that maintain high contact reliability using contact materials resistant to arcing.
Developed by Nippon Switch Co., Ltd., the double-fixed crimping prevents terminal play due to soldering.
Special silver alloy contacts are resistant to arc wear, maintaining stable contact resistance.
The switching mechanism is a seesaw type, characterized by long life, robustness, and high capacity.
