Description
Contents: 1 piece

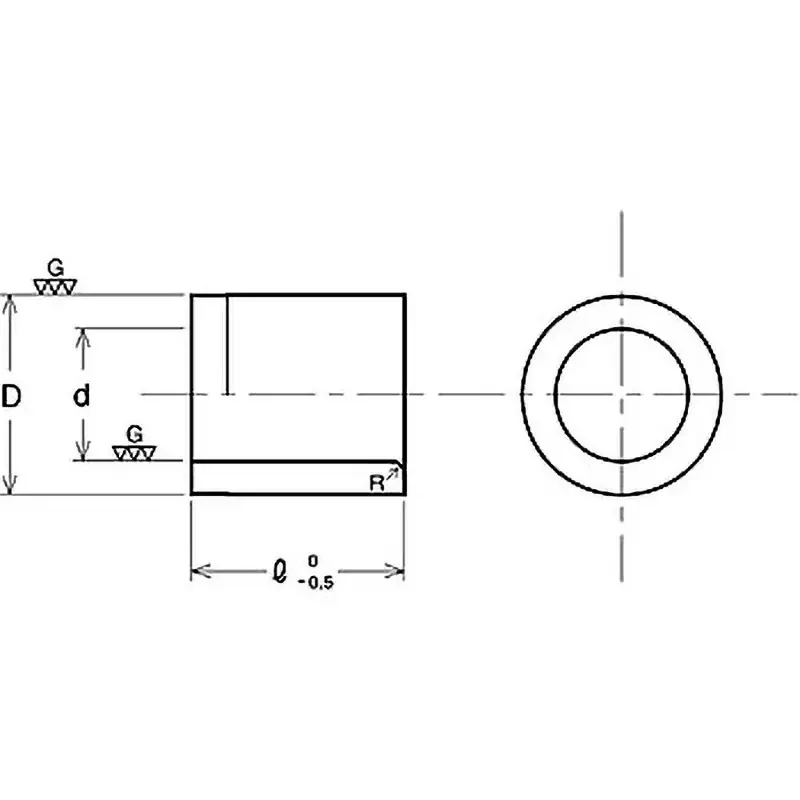

Total Length l (mm): 12
Part Number: AK4.0*12
Outer Diameter D (mm): 8
Dimension R (mm): 1
Inner Diameter d (mm): 4
Total Length l (mm): 12
Inner Diameter Tolerance (mm): +0.030/+0.004
Deviation of Outer Diameter relative to Inner Diameter (mm): within 0.012
Outer Diameter Tolerance p6 +0.024/+0.015
