Description

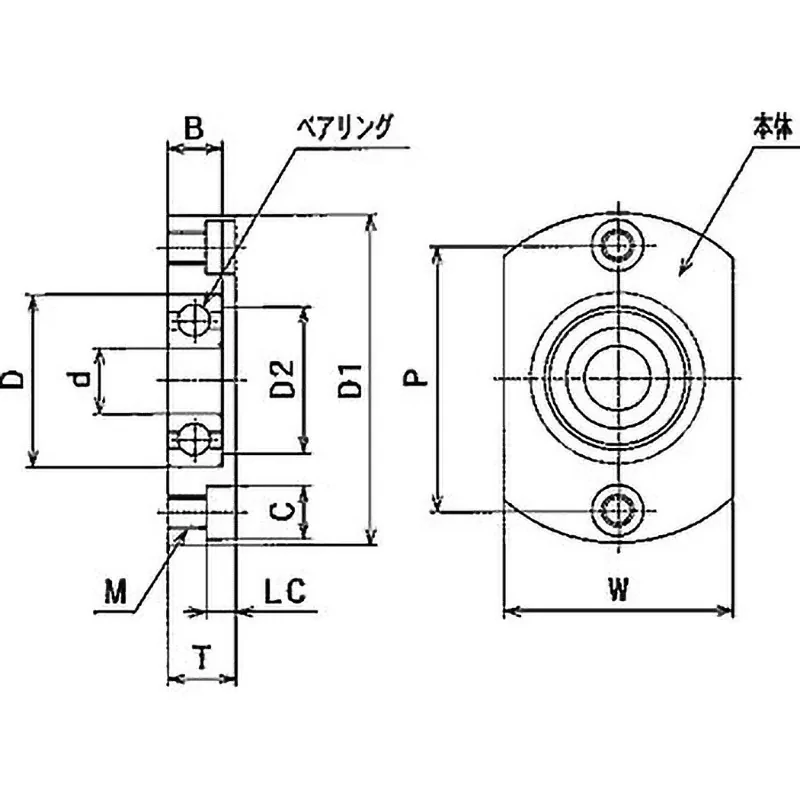

Dimension B (mm): 7 (-0.20 to -0.15)
Dimension C (mm): 9.5
Dimension D (mm): 28
Dimension D1 (mm): 57
Dimension D2 (mm): 25
Dimension F (mm): –
Dimension L: C (mm): 5.4
Dimension P (mm): 45
Dimension T (mm): 9
Dimension W (mm): 37
Dimension D (mm): 15
Material (Body): SS400
Screw Diameter (mm): 6
Material (Bearing): Steel
Surface Treatment (Body): Electroless Nickel Plating

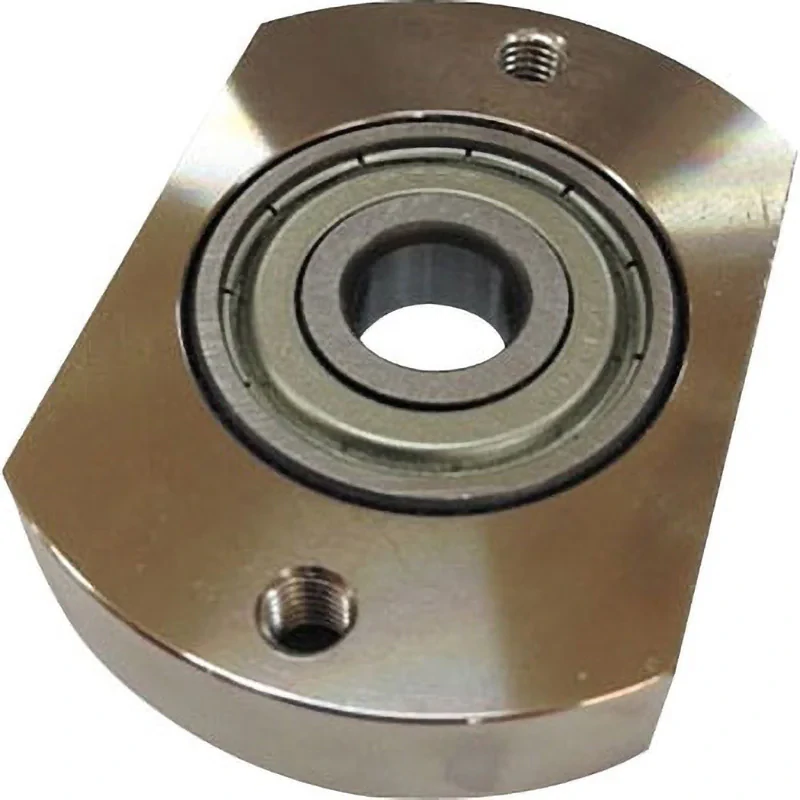

The flange width is small, allowing for a reduced installation space.
This type eliminates the retaining ring and allows for direct attachment of the bearing end face to the machine/device.
Due to the counterbore processing in the mounting screw hole area, it can be mounted from either the screw hole side or the counterbore side.
