Description

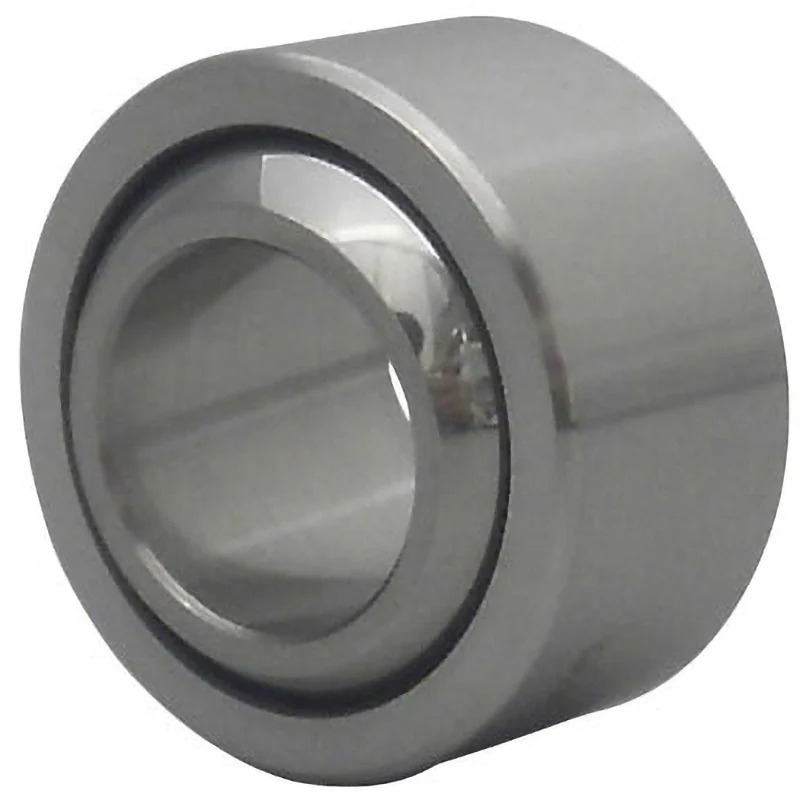

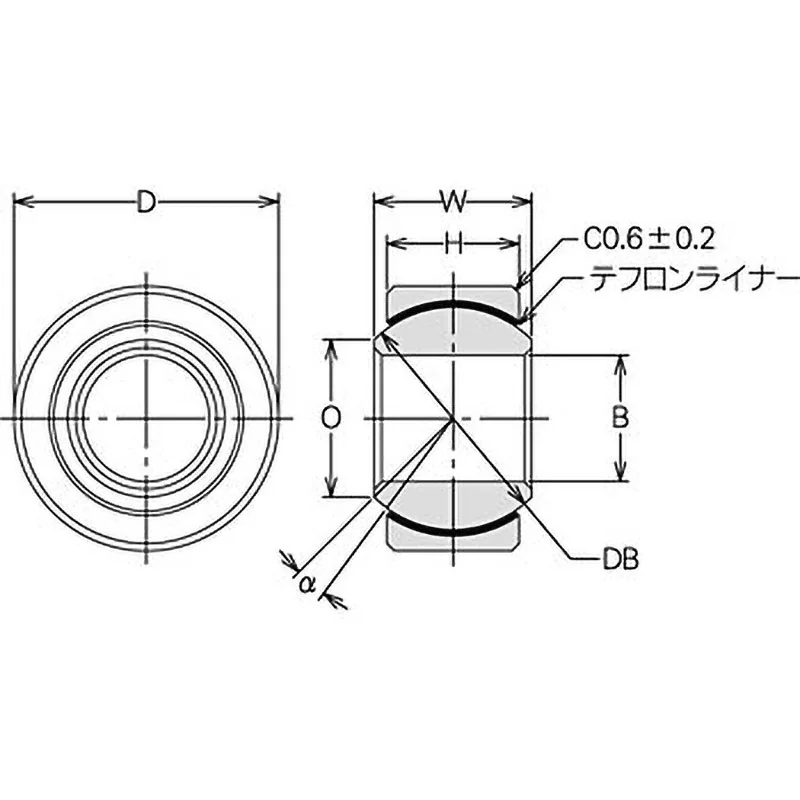

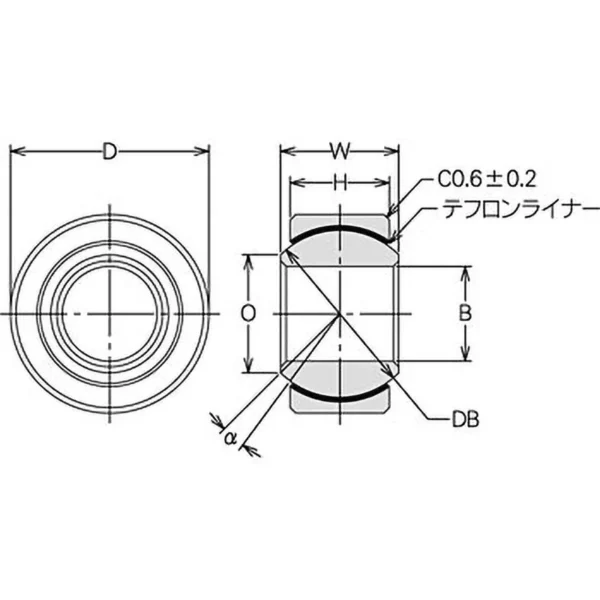

Dimensions B (mm): 20 (H7)
Dimensions D (mm): 35 (-0.013 to 0)
Dimensions H (mm): 16 (plus or minus 0.13)
Dimensions O (mm): 22.9 (reference)
Dimensions SDB (mm): 31.75 (reference)
V groove type (mm): S/0.7 (-0.25 to 0), X/2 (-0.25 to 0), R/0.5 (-0.25 to 0), P/1.5 (-0.4 to 0)
Dimensions W (mm): 22 (-0.13 to 0)
Outer diameter (mm): 35 (-0.013 to 0)
Weight (g): 91
Basic static load rating (kN): 204.95 (radial), 33.34 (axial)
Material (ball): SUS440C
Material (liner): TFE (Tetrafluoroethylene)
Angle (degrees): 13
Rotational torque (N*m [kgf*cm]): 0.12 to 0.57 [1.2 to 5.8]
Inner diameter tolerance (micrometers): 0 to 21
RoHS directive (10 substances compliant): Compliant
Oscillating load (kN): 92.18
Material (race): SUS410
No-load rotational torque (N*m): 0.12 to 0.57 (1.2 to 5.8 kgf.cm)
The Teflon liner is bonded to the inner surface of the race, allowing for sliding motion between the spherical ball and the Teflon liner surface.
Because the Teflon liner has self-lubricating properties, lubricants such as grease are unnecessary.
Therefore, it is effective for use in locations where oil is undesirable or lubrication is difficult or impossible.
Additionally, since it does not require a lubrication mechanism, it is effective in reducing maintenance costs.
The Teflon type spherical is suitable for use under low-speed oscillation.
It also exhibits relatively good performance under vibrational loads. Therefore, if the metal type experiences excessive friction, seizing, or fatigue failures, or if fretting of the sliding surfaces becomes a problem, replacing it with the Teflon type is an effective measure.
