Quantity: 1 piece
Function operation:
Circuit: 3-pole double throw

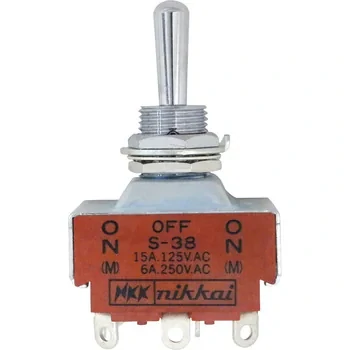

Part number: S-38
Circuit: 3-pole double throw
Terminal shape: solder
Function operation:
Withstand voltage: AC2.0kV (for more than 1 minute)
Accessories: Hex nut (AT-503, AT-527), internal tooth washer (AT-508), mounting ring (AT-506)
Number of poles: 3
Operating temperature range (Celsius degrees): -10 to 70
Standards: UL, C-UL, CSA
Operation method: momentary
Heat resistance: when using a soldering iron: tip temperature: below 390 Celsius degrees, soldering time: within 4s, number of times: 2 times (after returning to room temperature)
Optional accessories: Waterproof cap (AT-401, AT-402, AT-4181)
Motor (W): –
Mounting hole diameter (Diameter mm): 12.5, 12.3
Contact resistance (Megaohm): 10 or less
Inductive load (A): 8 (AC125V) (power factor = 0.6)
Insulation resistance (Gigaohm): 1 or more (DC500V)
Mechanical durability: more than 50000 operations
Electrical durability: more than 25000 operations
Lever fall angle (degrees): 25
Operation part shape: basic lever
Panel mounting method: screw mounting
Maximum panel thickness (mm): 5.6
Insulation resistance: 1 Gigaohm or more (DC500V)
RoHS Directive (10 substances compliance): compliant
Withstand voltage (V/min): AC2k or more
Resistive load (A): 15 (AC125V), 6 (AC250V), 15 (DC30V)
The compact toggle switch group boasts a half-century of achievements, featuring switches that are Small, robust, high-capacity, resistant to arcing, and use contact materials that maintain high contact reliability.
