Description
Material
Holder / High Strength Zinc Alloy
Ball Attached Shank (Lightly Carburized Carbon Steel Ball Hardness) / Hv650 or higher
Ball Attached Shank (Shank Part) / S35C (HRC20-28｣ｬ Chromate Treatment)
Boot / NBR-based Special Synthetic Rubber

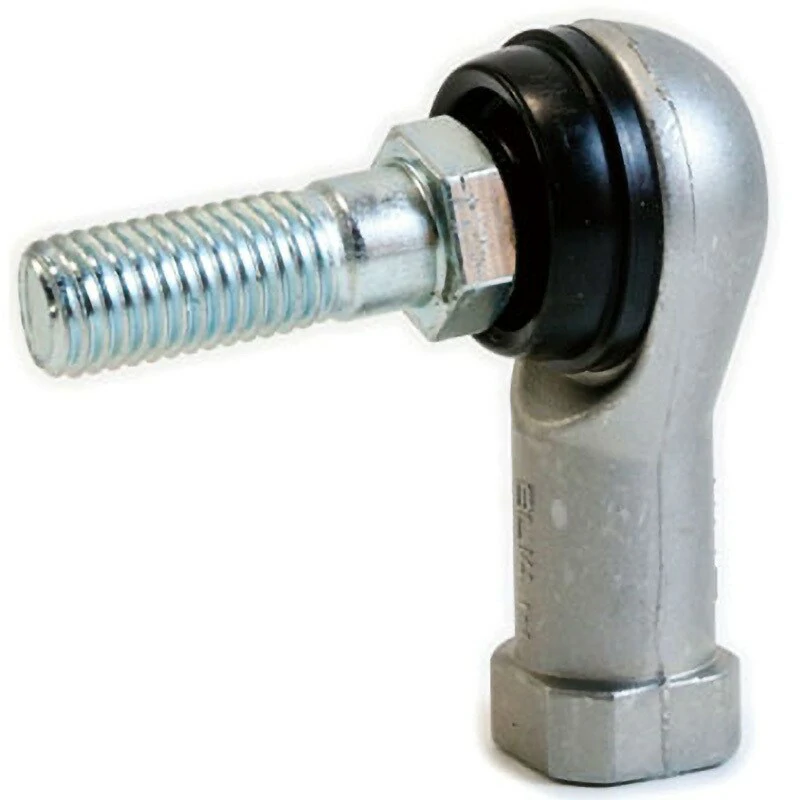

Compact type of RBL shape: Utilizes high strength zinc alloy for the holder and forms the holder at a right angle to the ball attached shank part.
By arranging grease pockets in the spherical part｣ｬ it has excellent lubrication and outstanding wear resistance.
