Description
Contents: 1 set
Stroke (mm): 250
Travel distance (mm): 250
Part number: 3618-250
Dimension A (mm): 180
Dimension B (mm): –
Dimension C (mm): 160
Dimension D (mm): –
Dimension E (mm): –
Width W (mm): 12.7
Type: Slide type
Stroke (mm): 250
Travel distance (mm): 250
Rail length (mm): 250
Rated load (N): 147/pair
Number of steps: 3
Material: (Rail) Steel
Surface treatment: (Rail) Glossy chromate treatment
Set contents: 1 piece for each side
Material: /Finish steel/Middle rail, inner rail, outer rail: Glossy chromate treatment (trivalent chromium) Retainer: Zinc-coated steel plate
Height (mm): 36
Weight (g): 560
Recommended screw: M4 bind screw

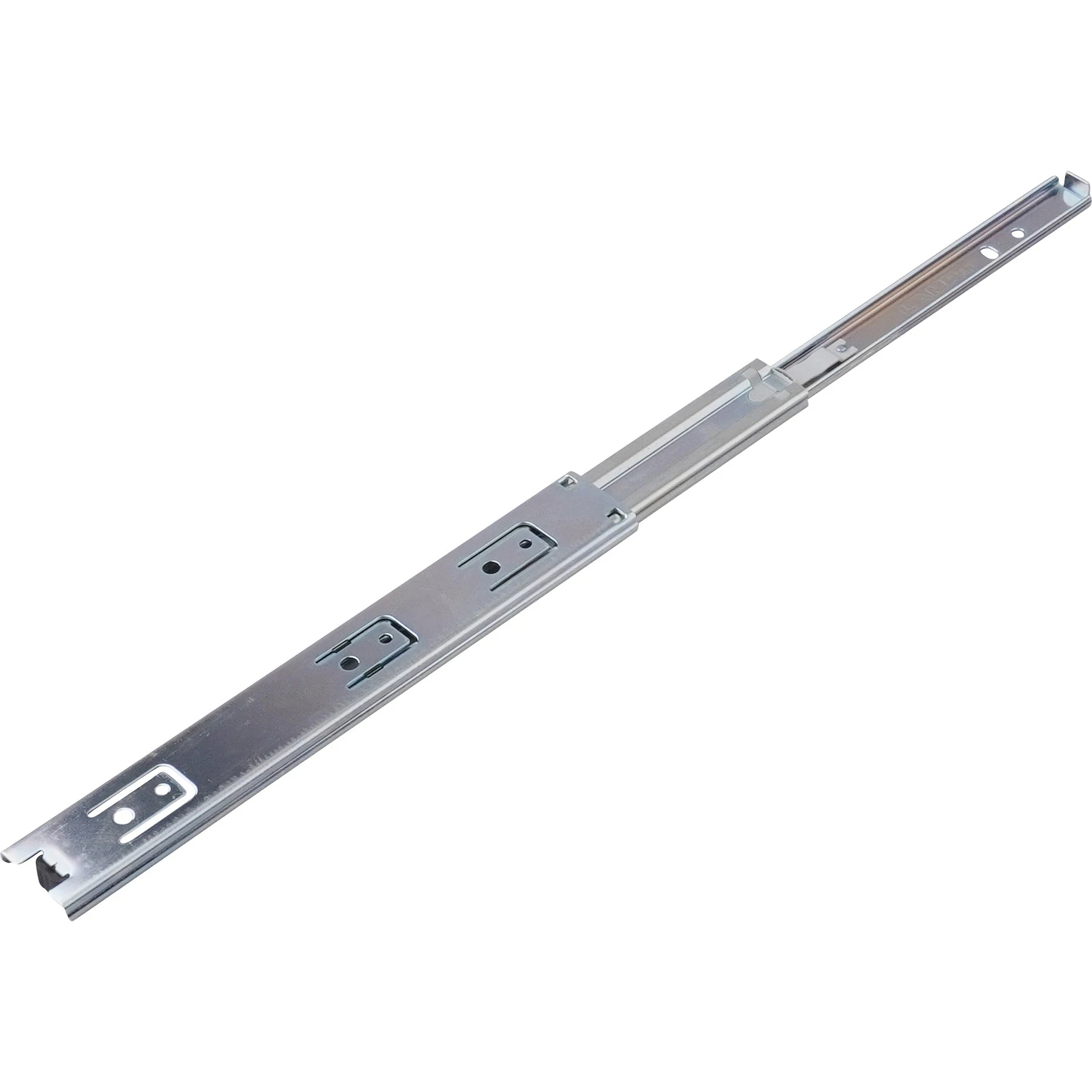

This is a 3-stage sliding rail that allows the inner member to be fully extended.
When the rail is fully closed, it has a simple catch function that maintains the closed state.
The inner member can be removed by lever operation.
The detachment lever is compatible for both left and right sides.
A new type with a rail length of 150 mm has been added.
