Description
Content volume: 1 unit
Specifications: RAM: LPDDR4X-4267 4GB, SoC: Broadcom BCM2712 + RP1-C0, Ethernet: Up to 1000Mbps RJ45 socket * 1 PoE compatible (additional expansion board required), Video output: HDMI2.0 Type-D (MicroHDMI): Connector * 2 4K60p output, Power button: STAT lamp (LED color: red/green)
Model number: Raspberry Pi 5 / 4GB SC1111
Usage: Suitable for educational purposes, electronics projects, and embedded device applications
Specifications: RAM: LPDDR4X-4267 4GB, SoC: Broadcom BCM2712 + RP1-C0, Ethernet: Up to 1000Mbps RJ45 socket * 1 PoE compatible (additional expansion board required), Video output: HDMI2.0 Type-D (MicroHDMI): Connector * 2 4K60p output, Power button: STAT lamp (LED color: red/green)
Product name: Raspberry Pi 5 4GB Model
Power supply: DC5V 5A (USB Type-C connector/Power Delivery (PD) compatible)

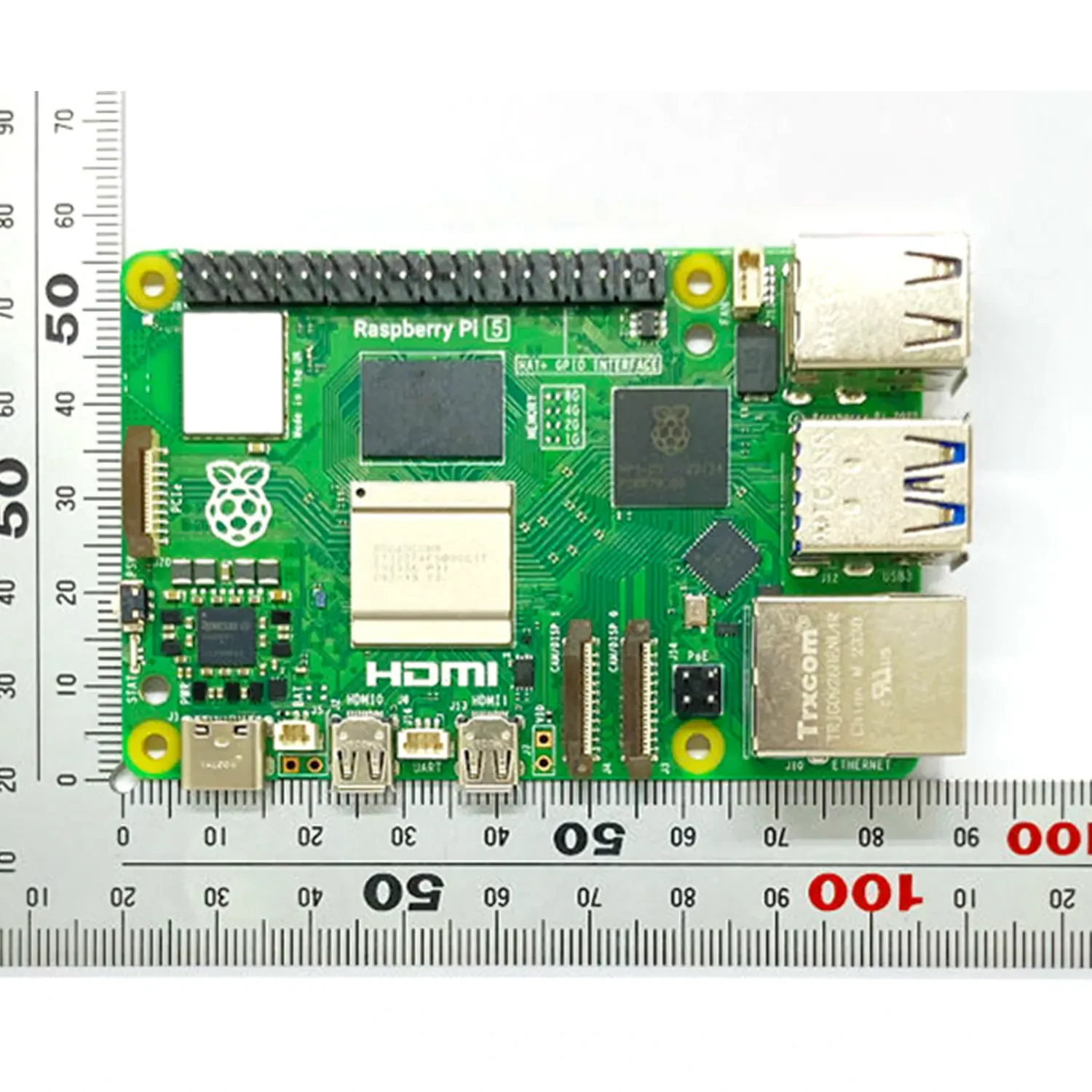

Dimensions (Width W * Depth D * Height H) (mm): 56 * 85 * 18
RoHS Directive (10 substances compliance): Compliant
Bluetooth: Version 5.0 (Bluetooth Low Energy compatible)
Wi-Fi: IEEE802.11b/g/n/ac 2.4GHz/5GHz dual-band
USB: Total of 4 ports (USB3.0 * 2, USB2.0 * 2)

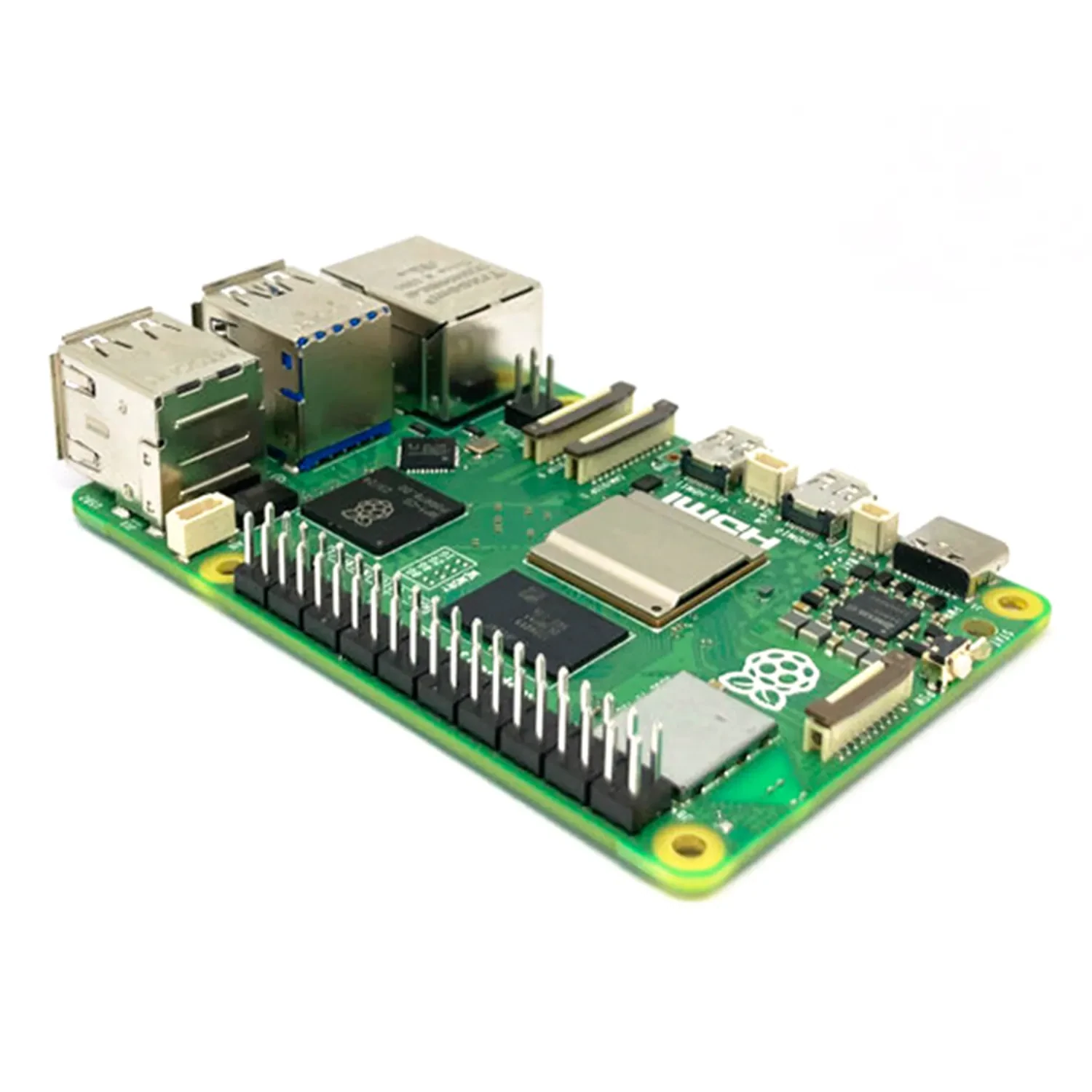

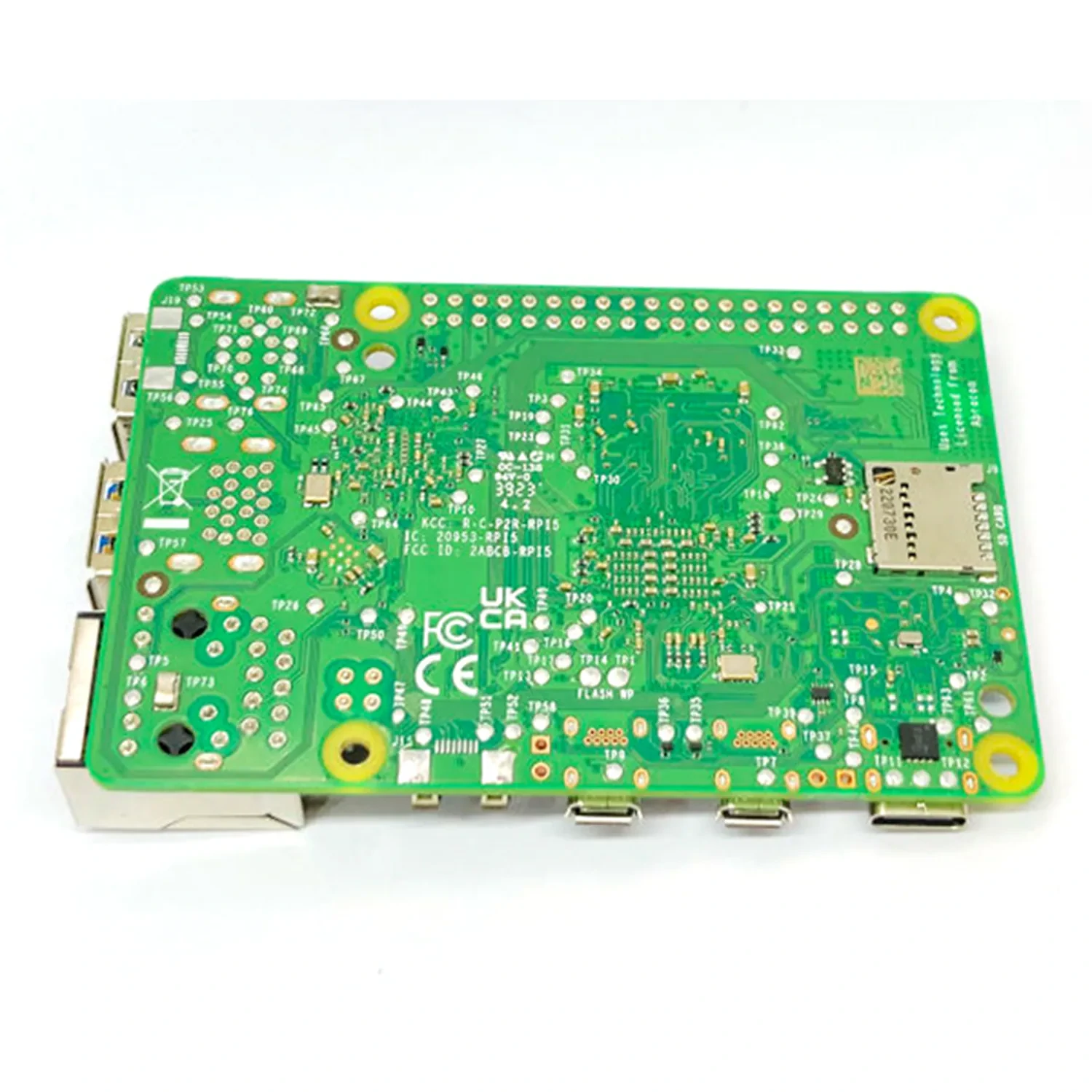

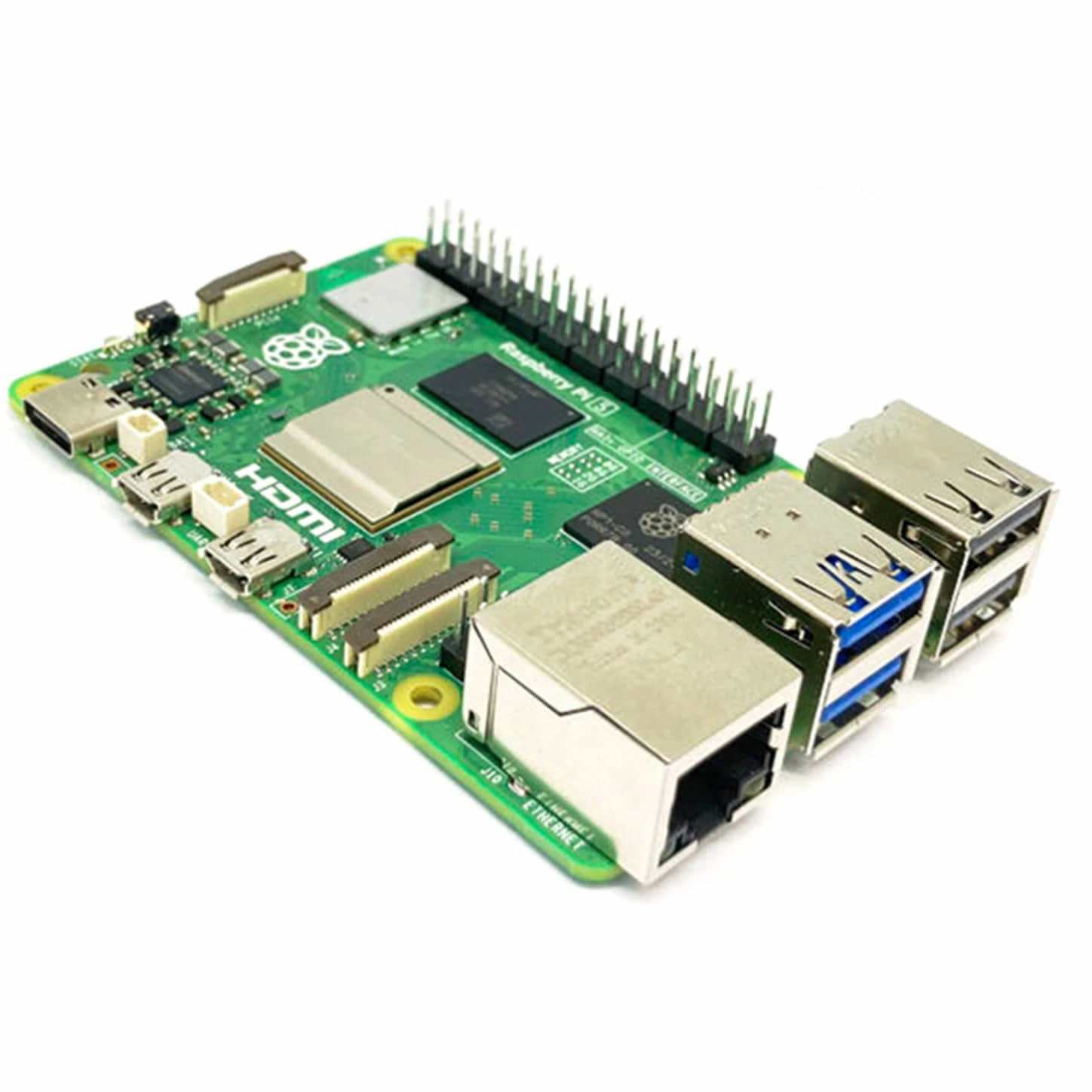

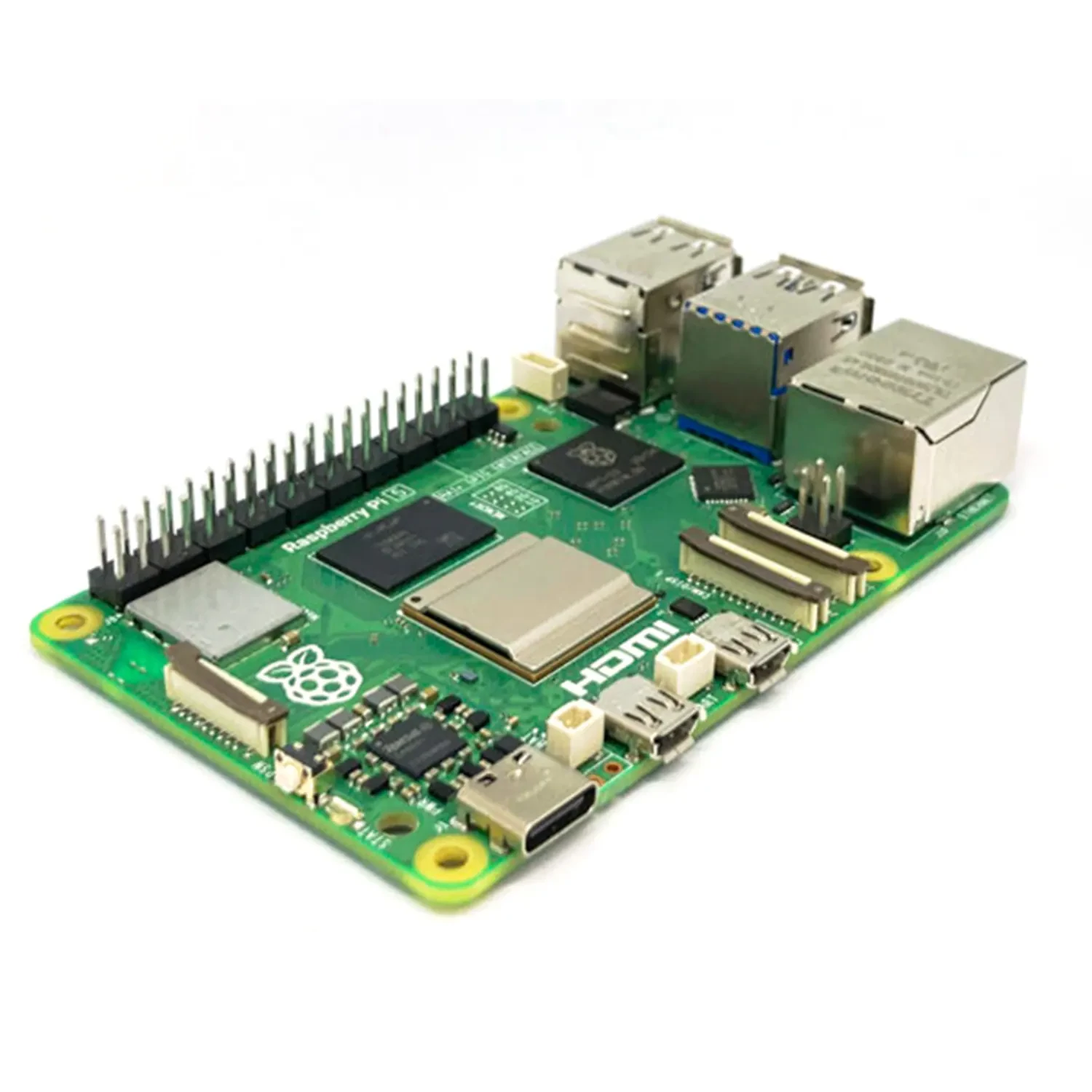

Single-Board Computer Raspberry Pi’s latest model in 2023, “Raspberry Pi 5”.
Main CPU upgraded to ARM Cortex-A76 quad-core. PCI Express interface added for high-speed storage expansion, improving basic specifications as a computer. Onboard power button, UART connector, RTC connector, etc., have also been included, enhancing usability and expandability.
* This product has obtained TELEC certification (Technical Regulations Conformity Certification) for the Japanese market.
