Description

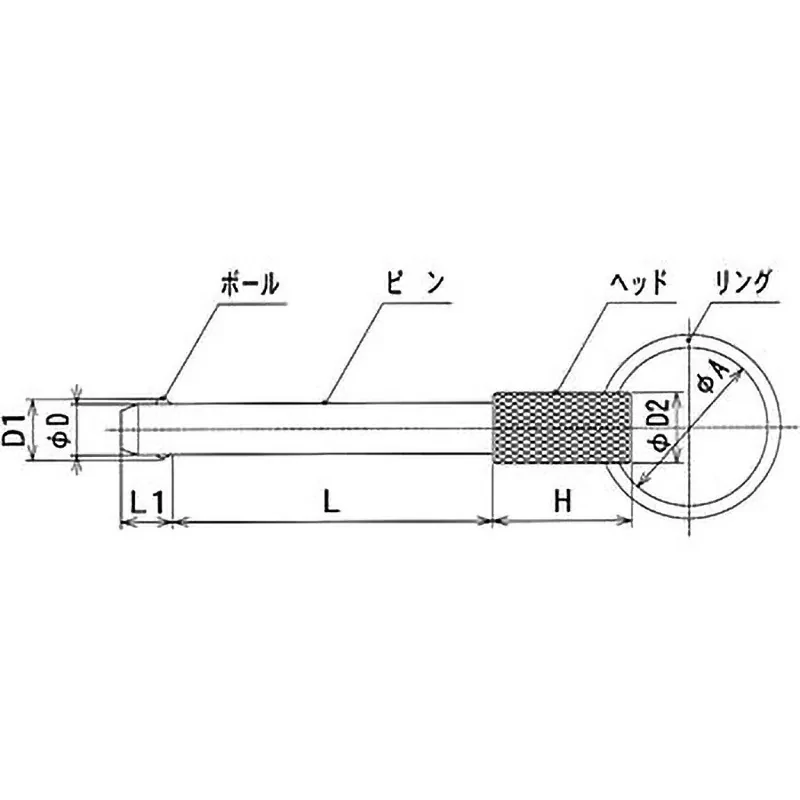

Dimensions A (mm): 25
Dimensions D (mm): 6
Dimensions D1 (mm): 7
Dimensions D2 (mm): 11
Dimensions H (mm): 22
Dimensions L (mm): 50
Dimensions L1 (mm): 7
Hardness HRC: (Ball) 55 or higher
Material / Treatment (Pin) S45C / Electroless Nickel, (Ball) SUS440C, (Head) SUM23 / Electroless Nickel, (Ring) SWRH / Nickel
Recommended Hole Inner Diameter (mm): 6 (0, +0.08)
