Description

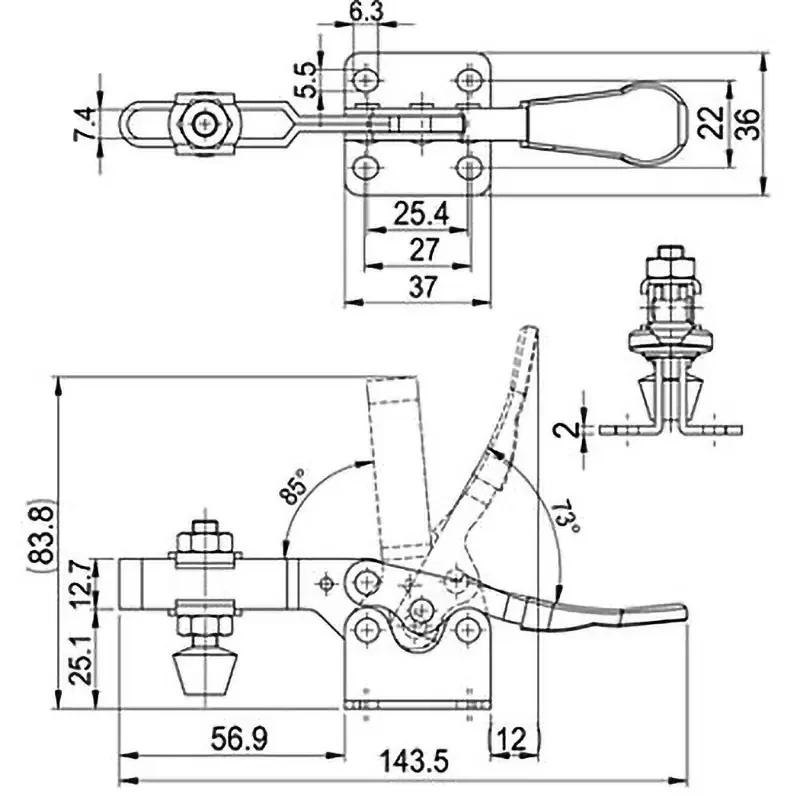

Clamping Pressure (kN[kgf]): 0.9[90]
Mass (g): 130
Maximum Height (mm): 96.9
Spindle: M6*44 P=1.0
Maximum Length (mm): 143.5
Application: For various fixing and temporary holding of materials such as metal and wood.
Material (Body): SS400 (Unichrome)
Type: Bottom-Pressing
Material (Handle): PVC
Base: Flange
Clamp Arm Movement Angle (degrees): 85
Handle Operation Angle (degrees): 73

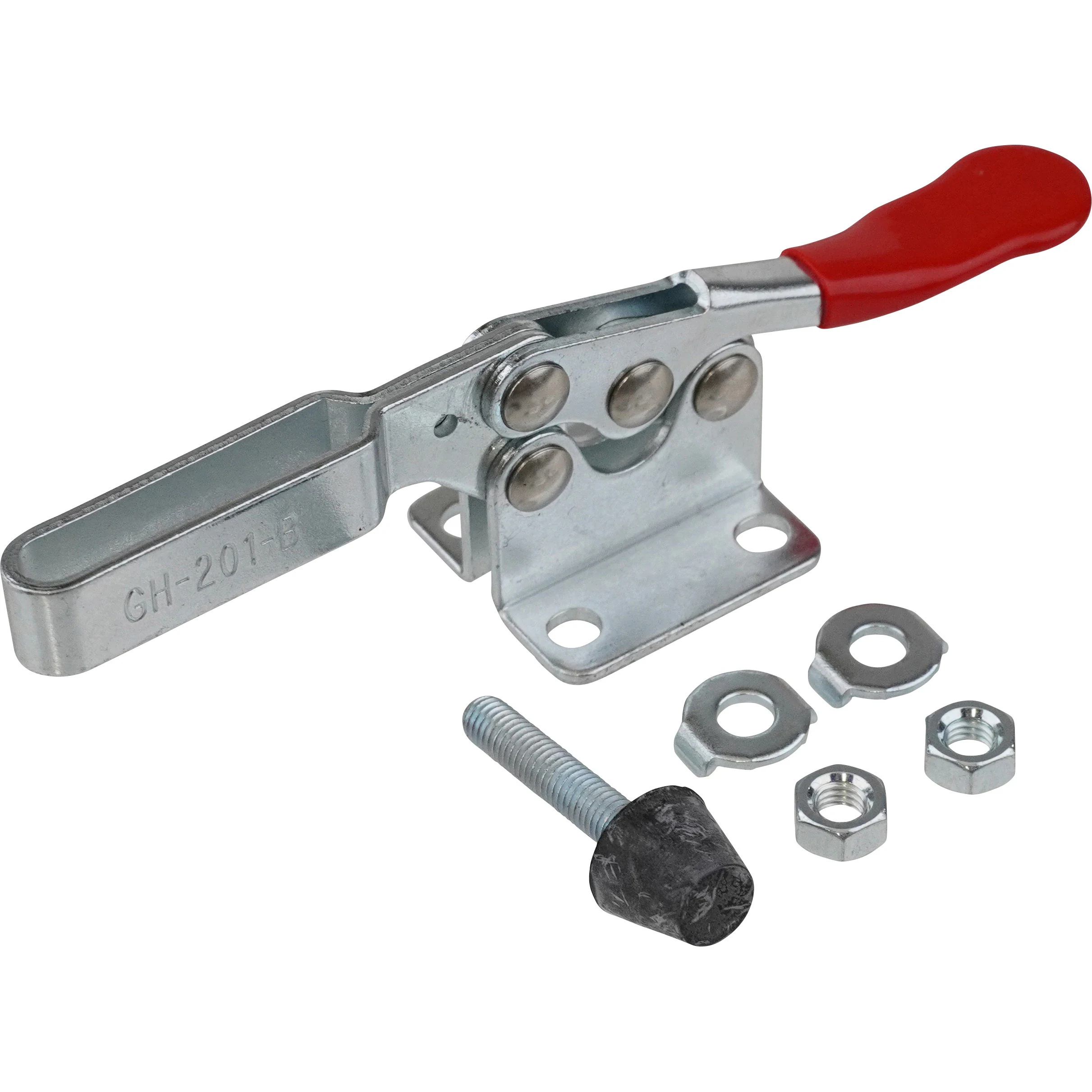

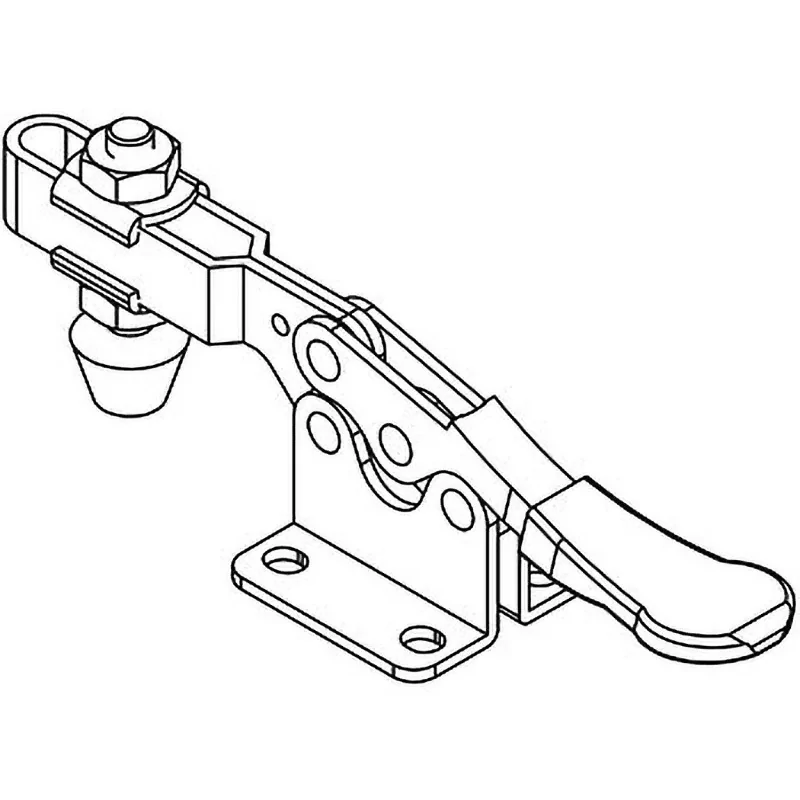

It is a Bottom-Pressing Toggle Clamp.

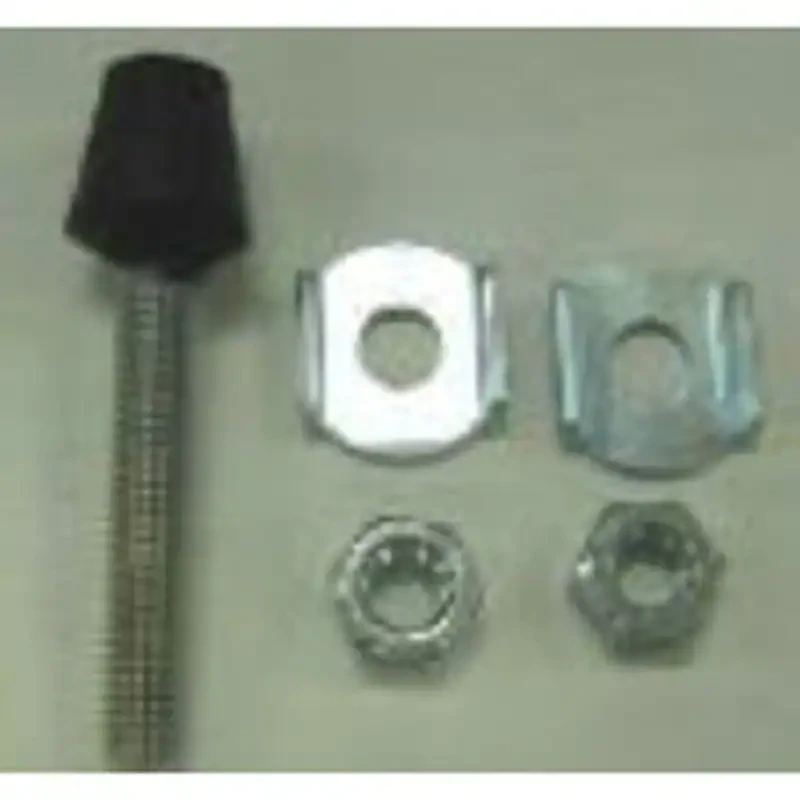

Position adjustment of the pressing point is possible with the bolt and nut at the tip.
