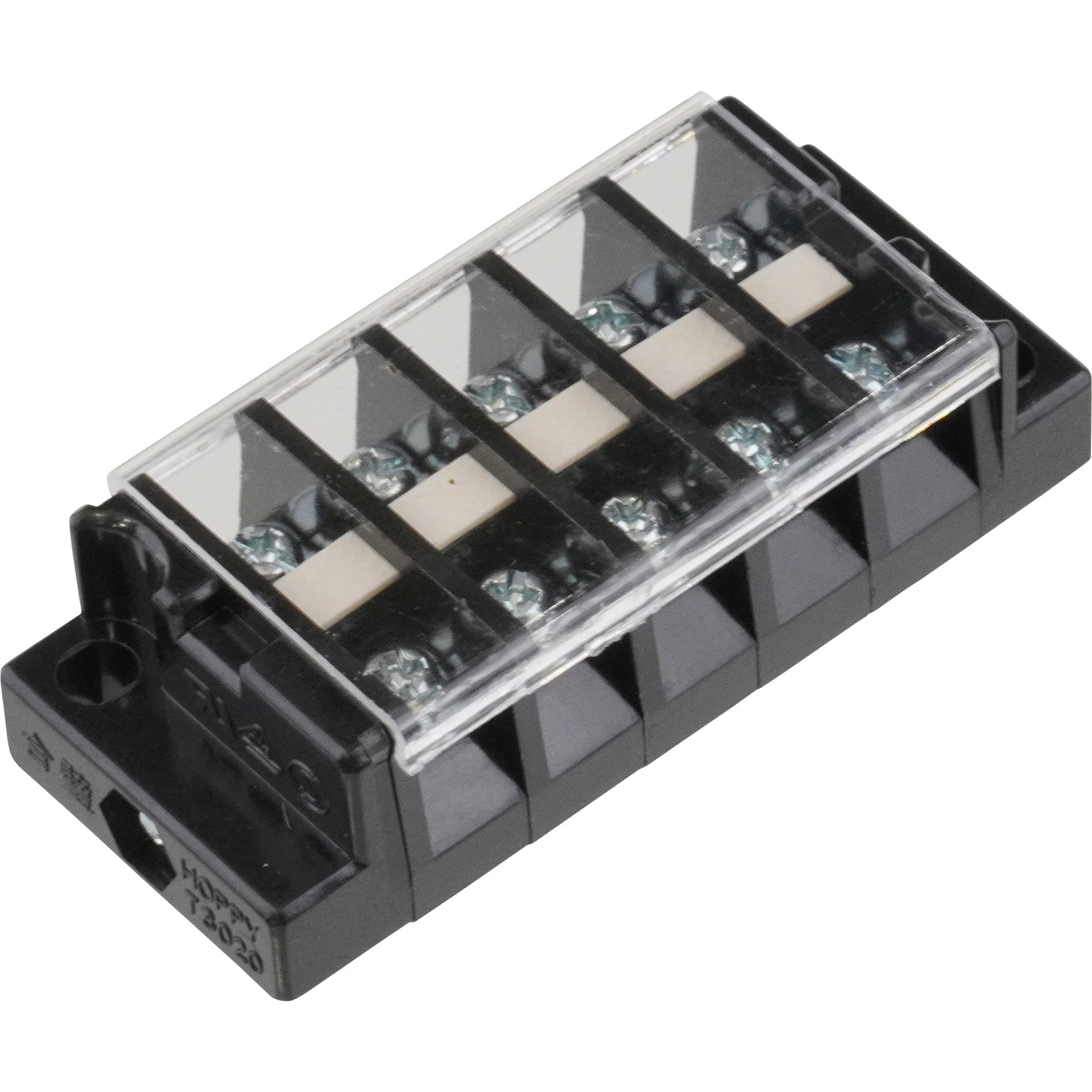

Description
Mounting method: Direct connection
Wiring method: Screw
Number of poles: 5P
Terminal screw: M3.5
Maximum current (A): 0.75mm2 wire: 10, 1.25mm2 wire: 15, 2mm2 wire: 20

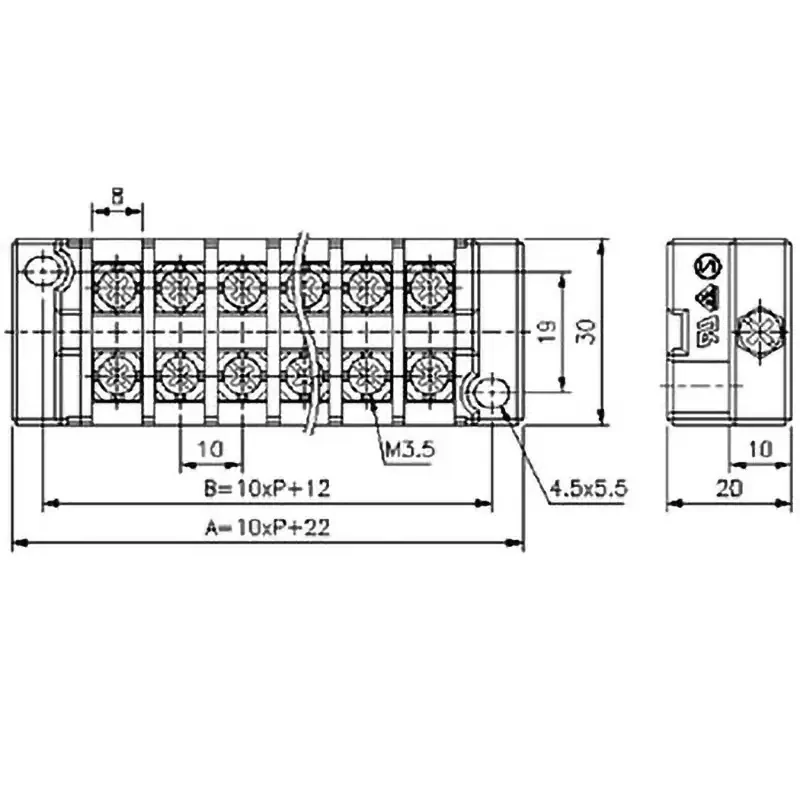

Dimension A (mm): 72
Dimension B (mm): 62
Dielectric strength (V): 2500
Rated insulation voltage (V): 600
Material: [Terminal base] Phenolic (black), [Cover] PC (transparent)/UL94-V0, [Conductive plate] Brass (nickel plated), [Terminal screw part] Steel (chromate), [Label] Fiber
This is a relay component for wiring in electronic and electrical equipment circuits.
