Description

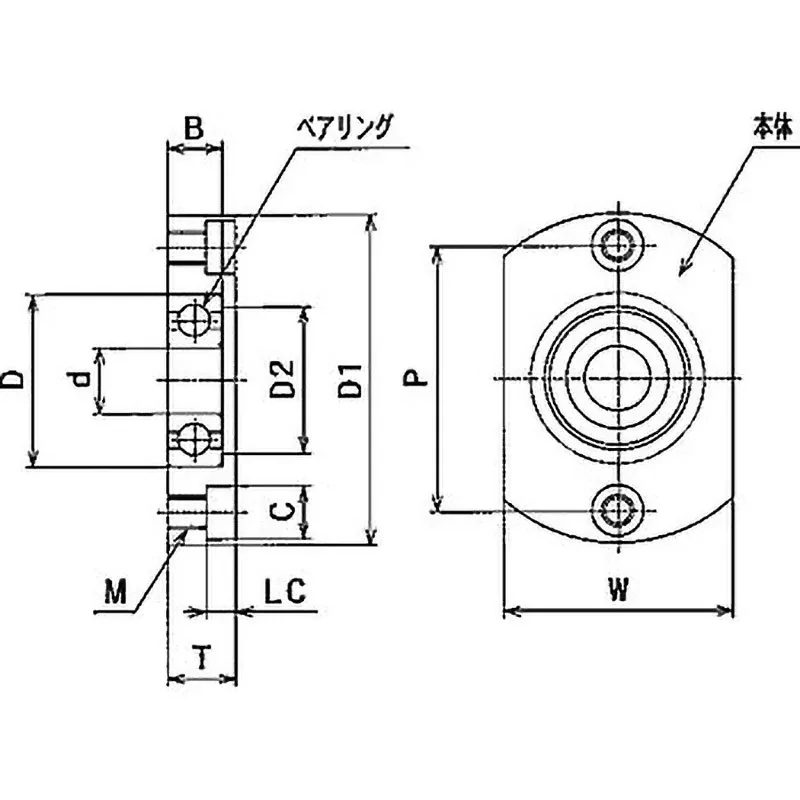

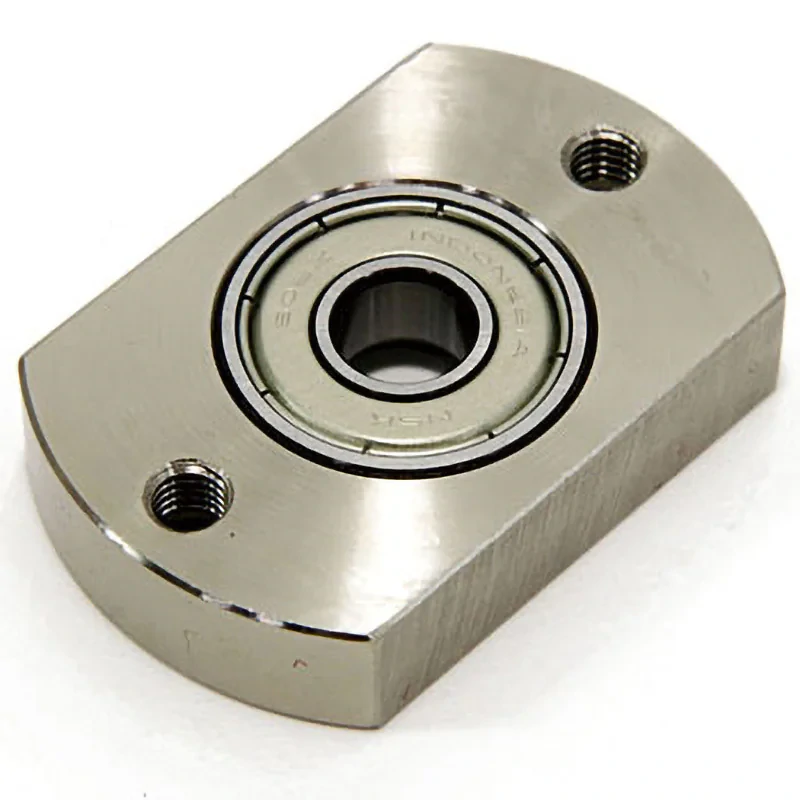

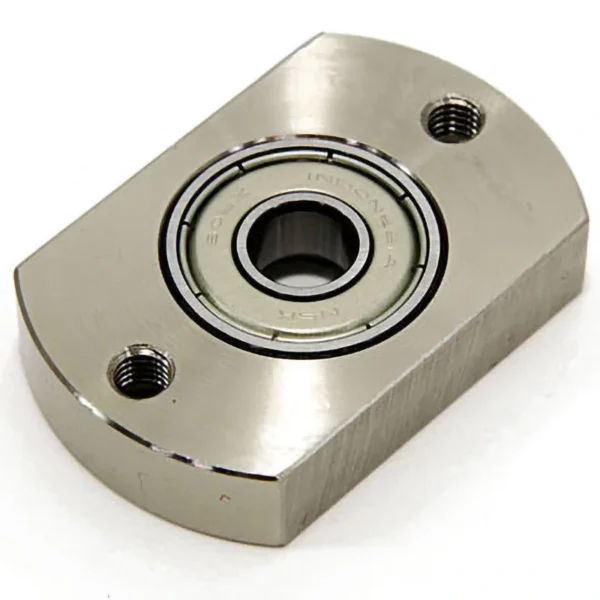

Dimension B (mm): 7 (-0.20 to -0.15)
Dimension C (mm): 8
Dimension D (mm): 22
Dimension D1 (mm): 45
Dimension D2 (mm): 18
Dimension F (mm): –
Dimension L:C (mm): 4.4
Dimension P (mm): 35
Dimension T (mm): 9
Dimension W (mm): 29
Dimension D (mm): 8
Material (Body): SS400
Thread Diameter (mm): 5
Material (Bearing): Steel
Surface Treatment (Body): Electroless Nickel Plating
The flange width is small, allowing for a reduced installation space.
This type eliminates the retaining ring and directly attaches the bearing end face to the machine or device.
Since the mounting screw hole area is counterbored, it can be installed from either the screw hole side or the counterbored side.
