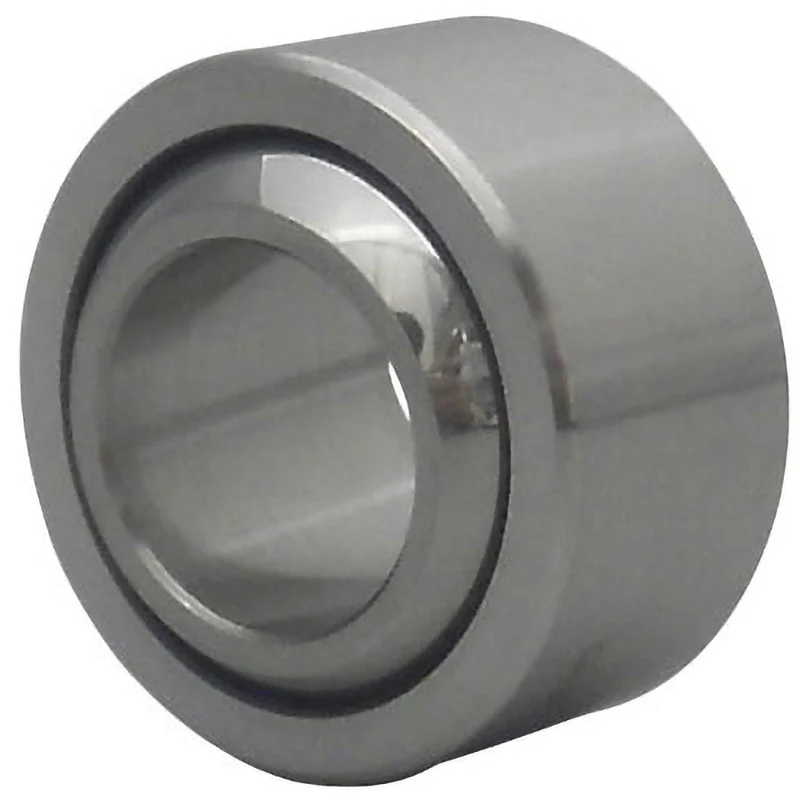

NSK Spherical Teflon Type Heavy Load > MBWT-12

¥3,598

SKU: r22003441edaa Category:

Description

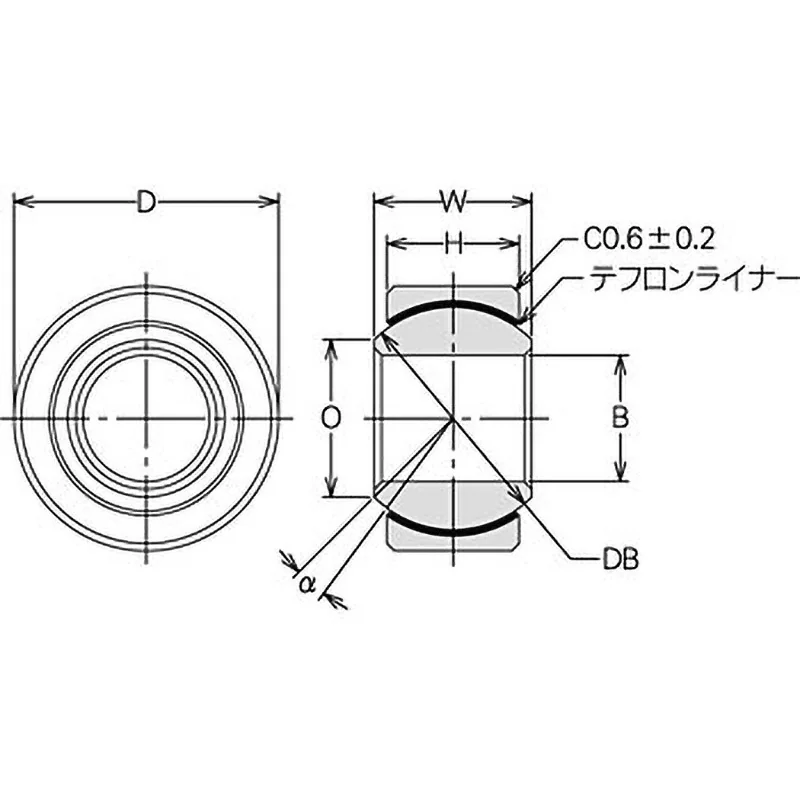

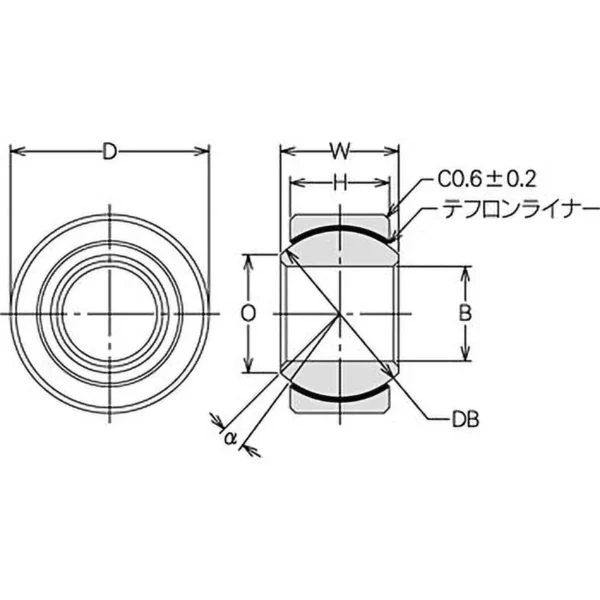

Dimensions B (mm): 12 (H7)
Dimensions D (mm): 26 (-0.013 to 0)
Dimensions H (mm): 13 (plus or minus 0.13)
Dimensions O (mm): 15.4 (Reference)
Dimensions SDB (mm): 22.225 (Reference)
V Groove Type (mm): S/0.7 (-0.25 to 0), X/1.4 (-0.25 to 0), R/0.5 (-0.25 to 0), P/1 (-0.4 to 0)
Dimensions W (mm): 16 (-0.13 to 0)
Outer Diameter (mm): 26 (-0.013 to 0)
Mass (g): 46
Basic Static Load Rating (kN): 116.69 (Radial), 21.57 (Axial)
Material (Ball): SUS440C
Material (Liner): TFE (Tetrafluoroethylene)
Angle (degrees): 10
Rotational Torque (N*m [kgf*cm]): 0.12 to 0.57 [1.2 to 5.8]
Inner Diameter Tolerance (micrometers): 0 to 18
RoHS Directive (Compliance with 10 substances): Compliant
Swing Load (kN): 51.97
Material (Race): SUS410
No-load Rotational Torque (N*m): 0.12 to 0.57 (1.2 to 5.8 kgf.cm)

The Teflon liner is bonded to the inner race surface and slides against the ball spherical surface and the Teflon liner surface.

The Teflon liner has self-lubricating properties, so lubricants such as grease are unnecessary.

Therefore, it is effective for use in places that do not tolerate oil or where lubrication is difficult or impossible.

Additionally, since it does not require a lubrication mechanism, it is effective in reducing maintenance costs.

The Teflon type spherical is suitable for use under low-speed oscillation.

It also exhibits relatively good performance under vibration loads. Thus, when the metal type experiences excessive friction, seizing, or fatigue failure, or when fretting at the sliding surfaces becomes a problem, replacing it with the Teflon type is an effective measure.
