Description

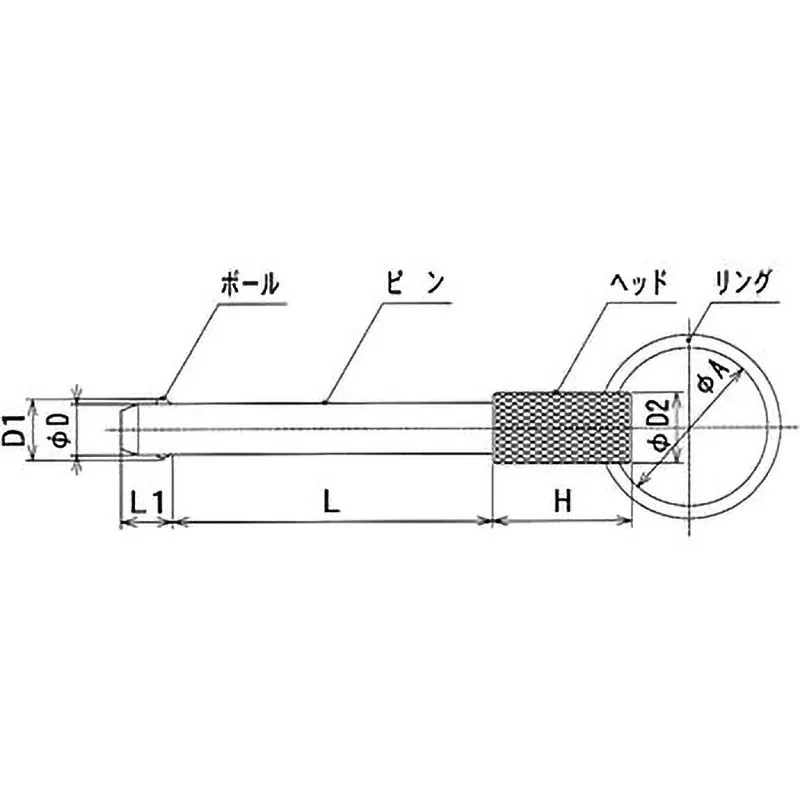

Dimensions A(mm): 25
Dimensions D(mm): 6
Dimensions D1(mm): 7
Dimensions D2(mm): 11
Dimensions H(mm): 22
Dimensions L(mm): 30
Dimensions L1(mm): 7
Hardness HRC: (Ball) 55 or higher
Material / Treatment (Pin) S45C / Electroless Nickel, (Ball) SUS440C, (Head) SUM23 / Electroless Nickel, (Ring) SWRH / Nickel
Recommended Hole Inner Diameter (mm): 6 (0, +0.08)
