Description
Material: Stainless Steel Plate (SUS304)
Mass (g): 70
Number of Holes: 6

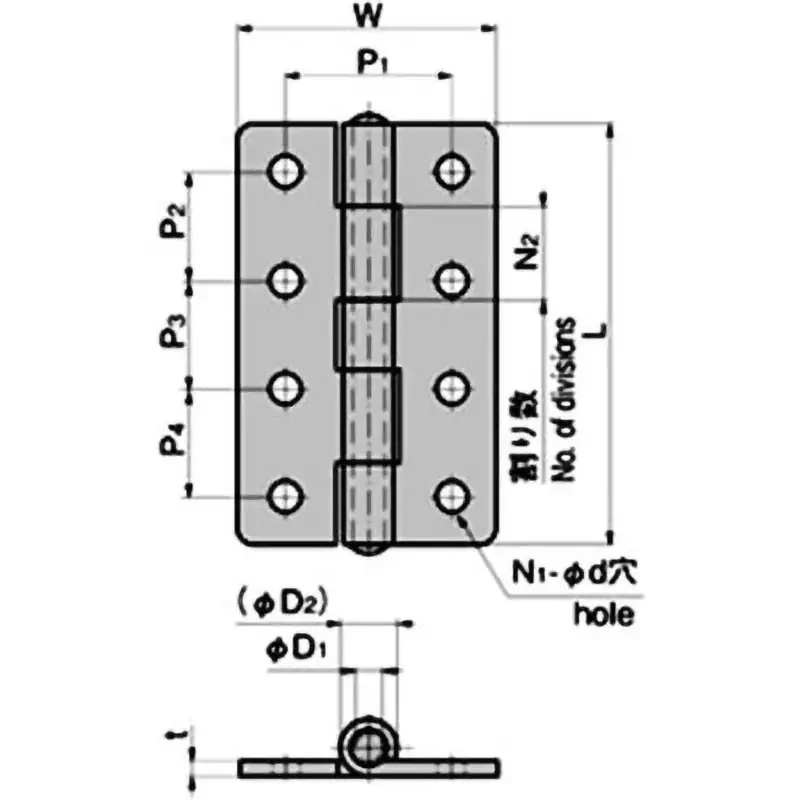

Dimension N1 (mm): 6
Compatible Door Height (mm): 1200
Compatible Door Width (mm): 600
Compatible Door Mass (kg): 15
Load Capacity (kg): 15
Dimension D1 (mm): 4.5
Dimension D2 (mm): 8.8
Dimension W (mm): 50
Dimension d (mm): 4.3
Dimension P4 (mm): –
Applications: Ships, Vehicles, Kitchen Equipment, Outdoor Equipment
Dimension L (mm): 65
Dimension t (mm): 2
Dimension P1 (mm): 30
Dimension P2 (mm): 23
Dimension P3 (mm): 23
Dimension N2 (mm): 5
Surface Finish: Mirror Buff Polished
Takigen Code: 10689
Excellent corrosion resistance with Stainless Steel.
