Description

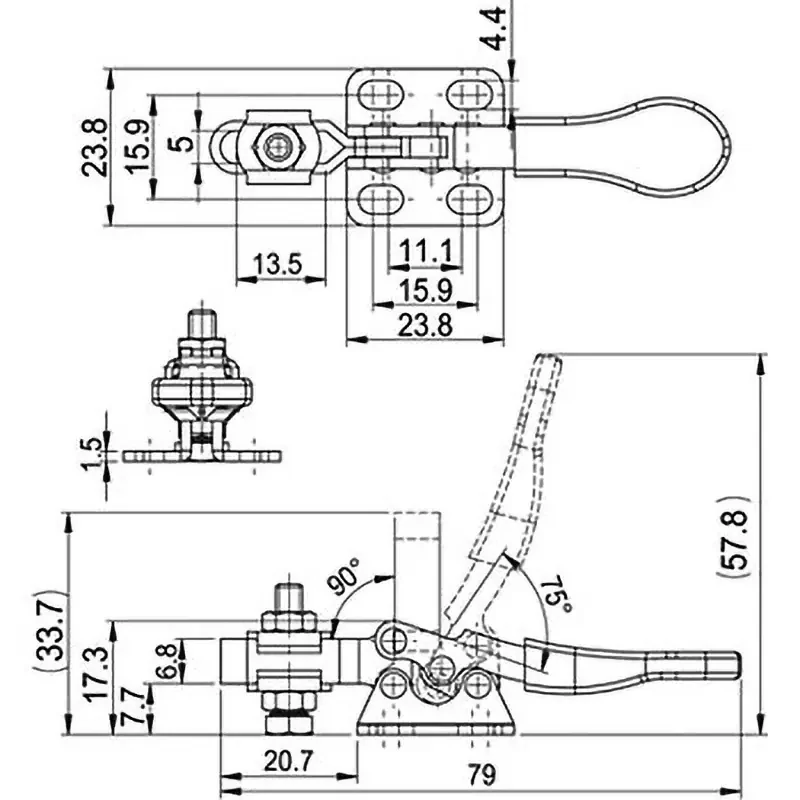

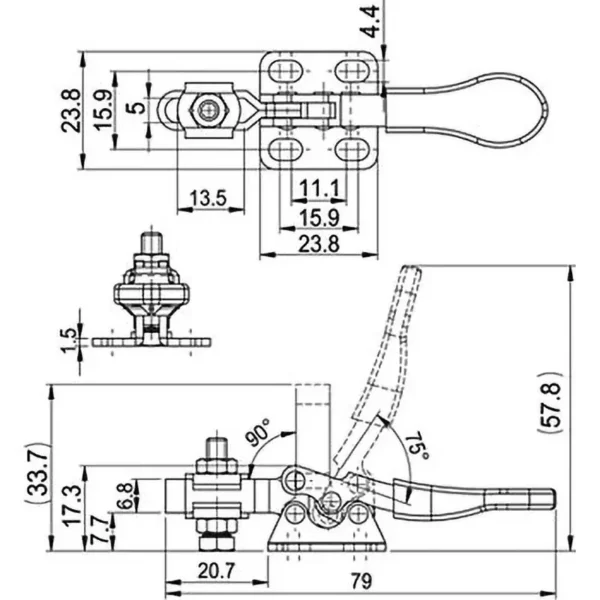

Clamp Pressure (kN[kgf]): 0.27[27]
Mass (g): 26
Maximum Height (mm): 57.8
Spindle: M4*20 P=0.7 (Nylon)
Maximum Length (mm): 79
Application: Various fixing and temporary holding for metals and wood.
Material (Main Body): SS400 (Unichrome)
Type: Bottom-Pressing
Material (Handle): PVC
Base: Flange
Clamp Arm Movement Angle (degrees): 90
Handle Operation Angle (degrees): 75

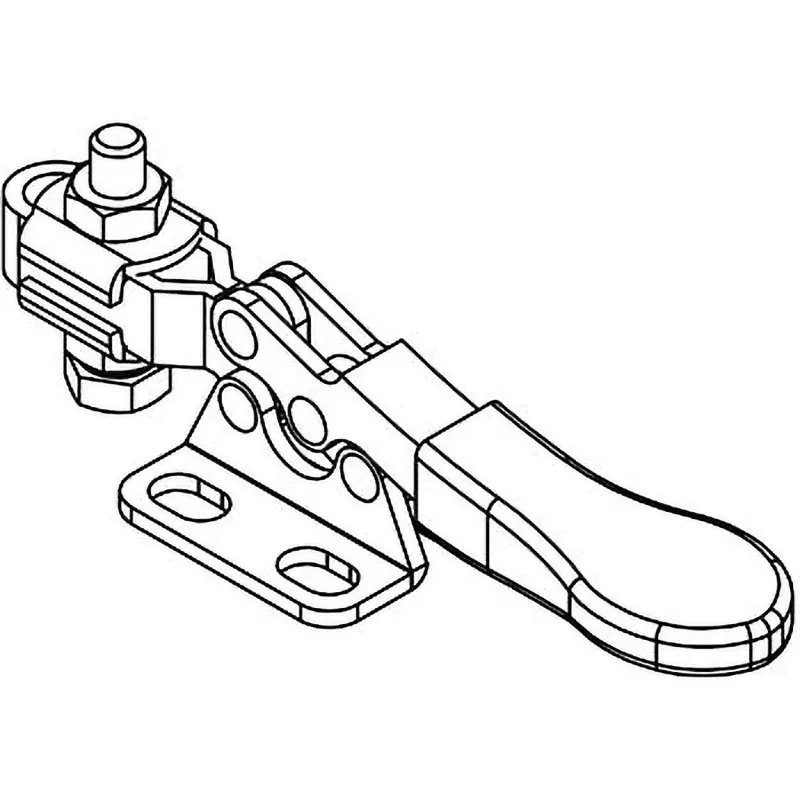

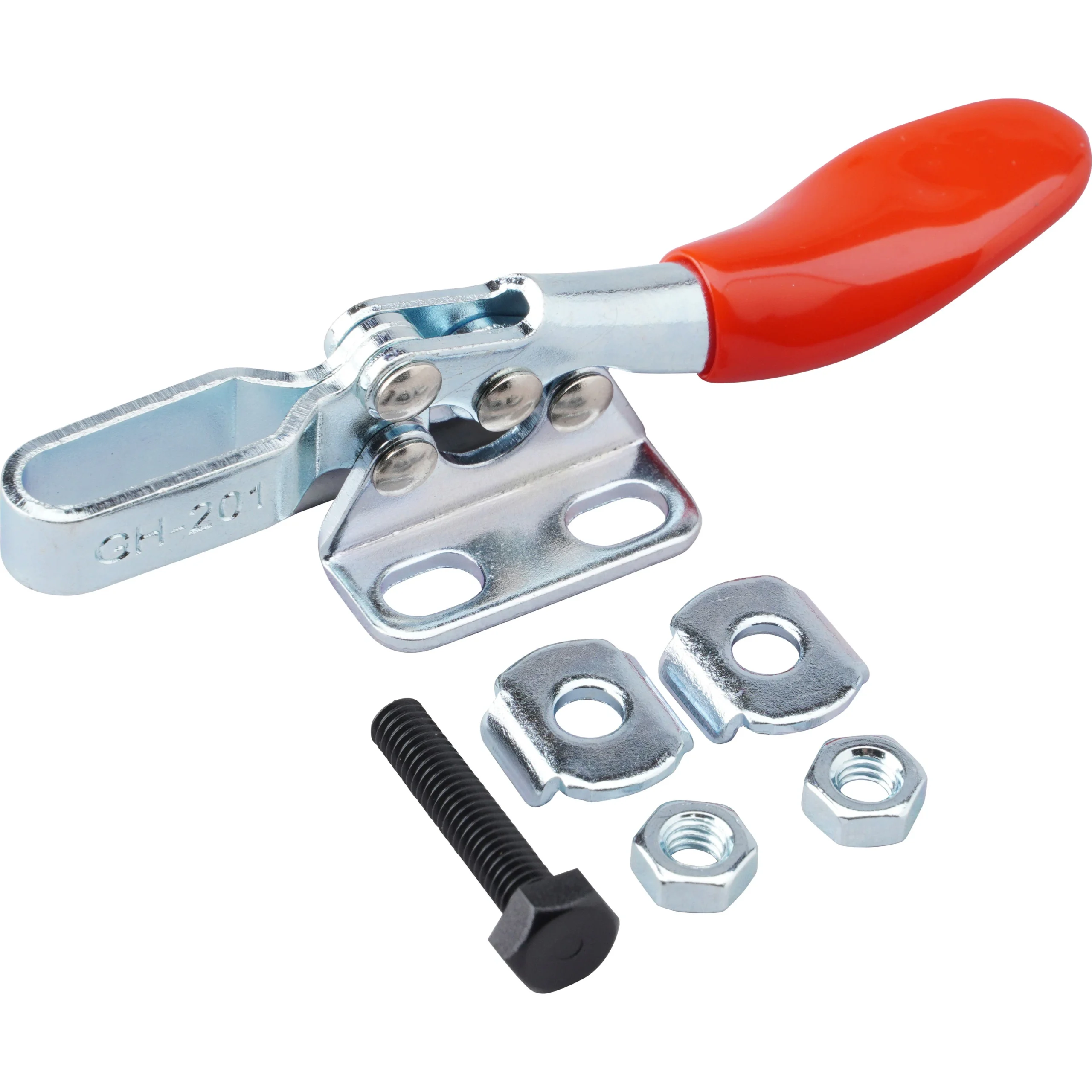

This is a Bottom-Pressing Toggle Clamp.

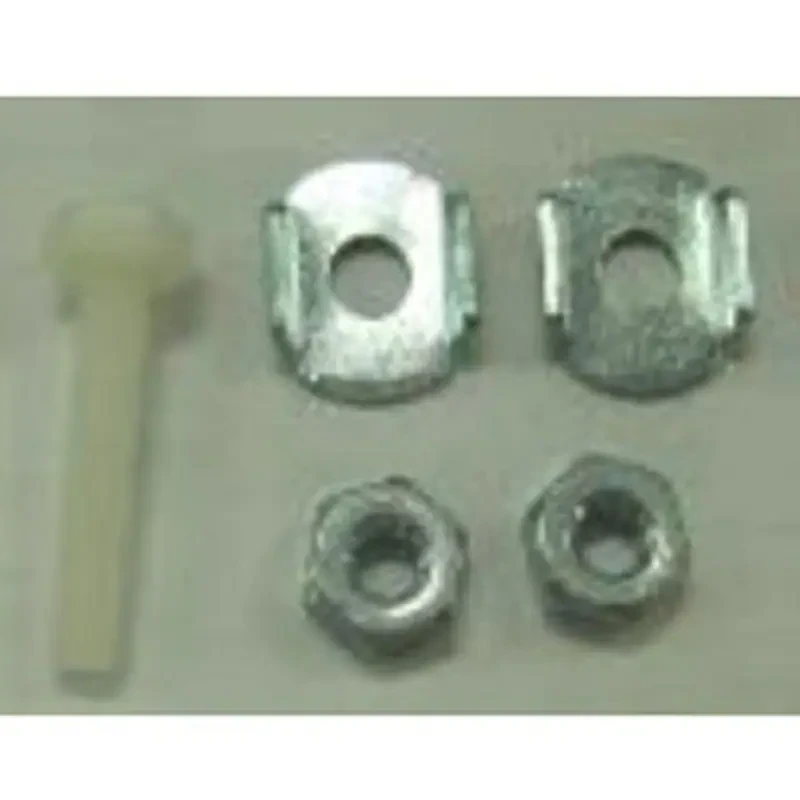

Position adjustment is possible with the bolt and nut at the tip.
